8
4.

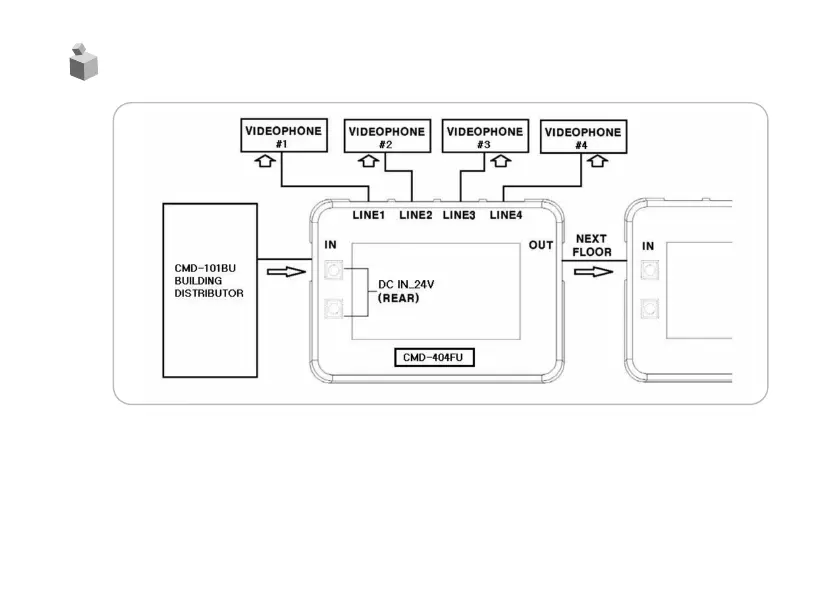

Wiring diagram
CCTV / LOBBY Building distributor(CMD-101BU)
CMD-404FU(D)(1
ST
FLOOR) CMD-404FU(D)(1
ST
FLOOR)
CMD-404FU(D)(2
ND
FLOOR) ... MODUME VIDEO PHONE
: UTP CABLE [CAT.5e] - MAX 300m
