Commax DP-3HP User Manual

8

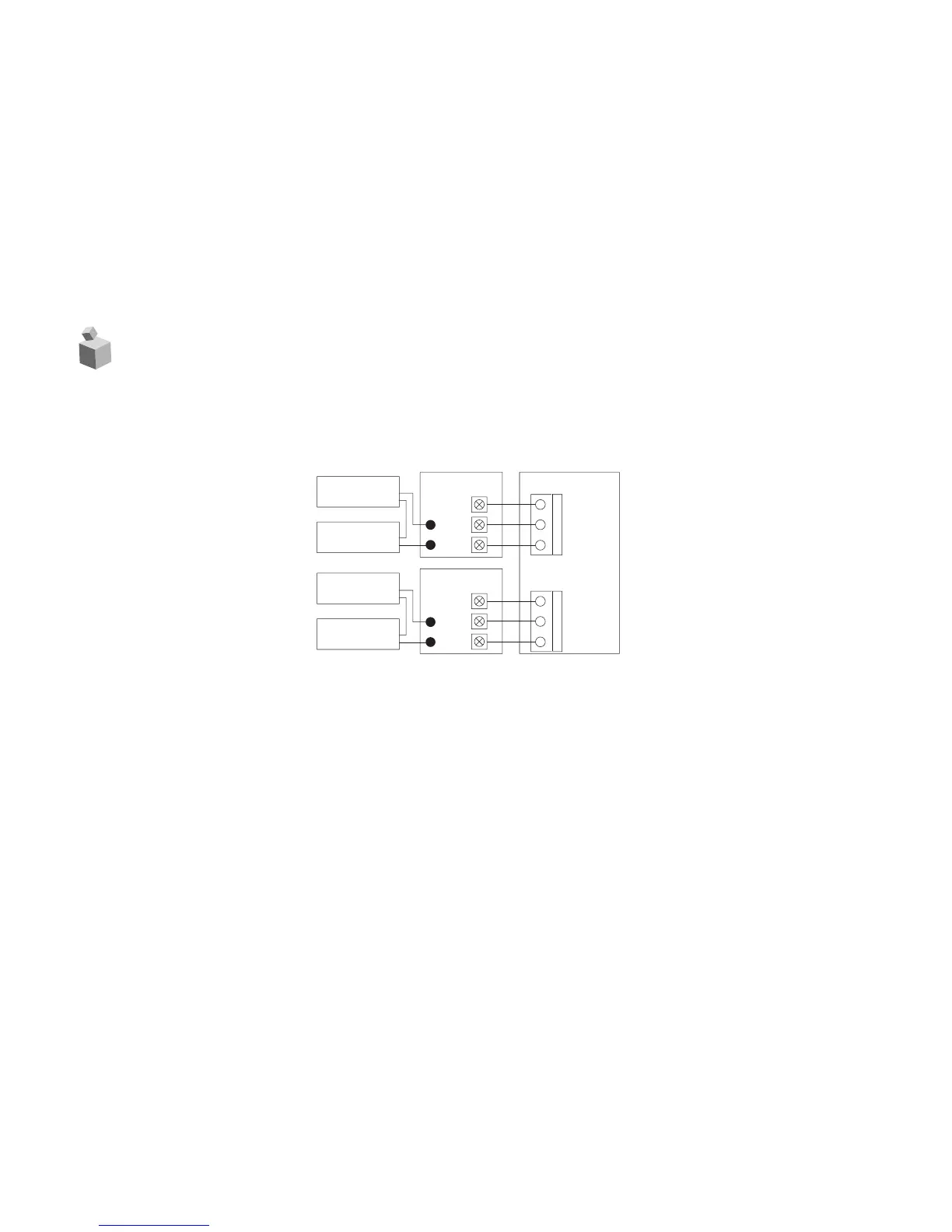

6. Wiring Diagram
DOOR
RELEASE
POWER
SOURCE
DOOR
RELEASE
POWER
SOURCE
CAMERA
1
2
3
CAMERA
DP-3HP
- Diagram
1
2
3
#1 (RE)
#2 (BL)
#3 (YE)
#1 (RE)
#2 (BL)
#3 (YE)
󱄿 Camera connect in polarity
1. RED : VOICE 2. BLUE : GND 3. YELLOW : POWER (+12V)
󱄿 Warning
1.
In case of installation around the area where pass the high-voltage line, please use
metal tube with coaxial cable.
2. Any malfunction or abnormal aperation shall be caused by scar or peel off the wire.

Commax DP-3HP Specifications

General

Power Voltage	AC220~, 50/60㎐
Power Consumption	MAX : 4 W (220V/60㎐)
Transmission	To Outdoor unit : 3 wires (Polarity)
Communication Method	Handset
Sound	From Outdoor unit : Electronic Chime
Time	60 ± 20 sec
Distance	28m(Ø0.5) / 50m(Ø0.65) / 70m(Ø0.8)
Operating Temperature	0 ~ +40℃(32℉~ 104℉)

Weight and Dimensions

Weight	0.55 ㎏
Dimension	107(W) x 195(H) x 52(D)㎜
