5. Wiring and Installation
7

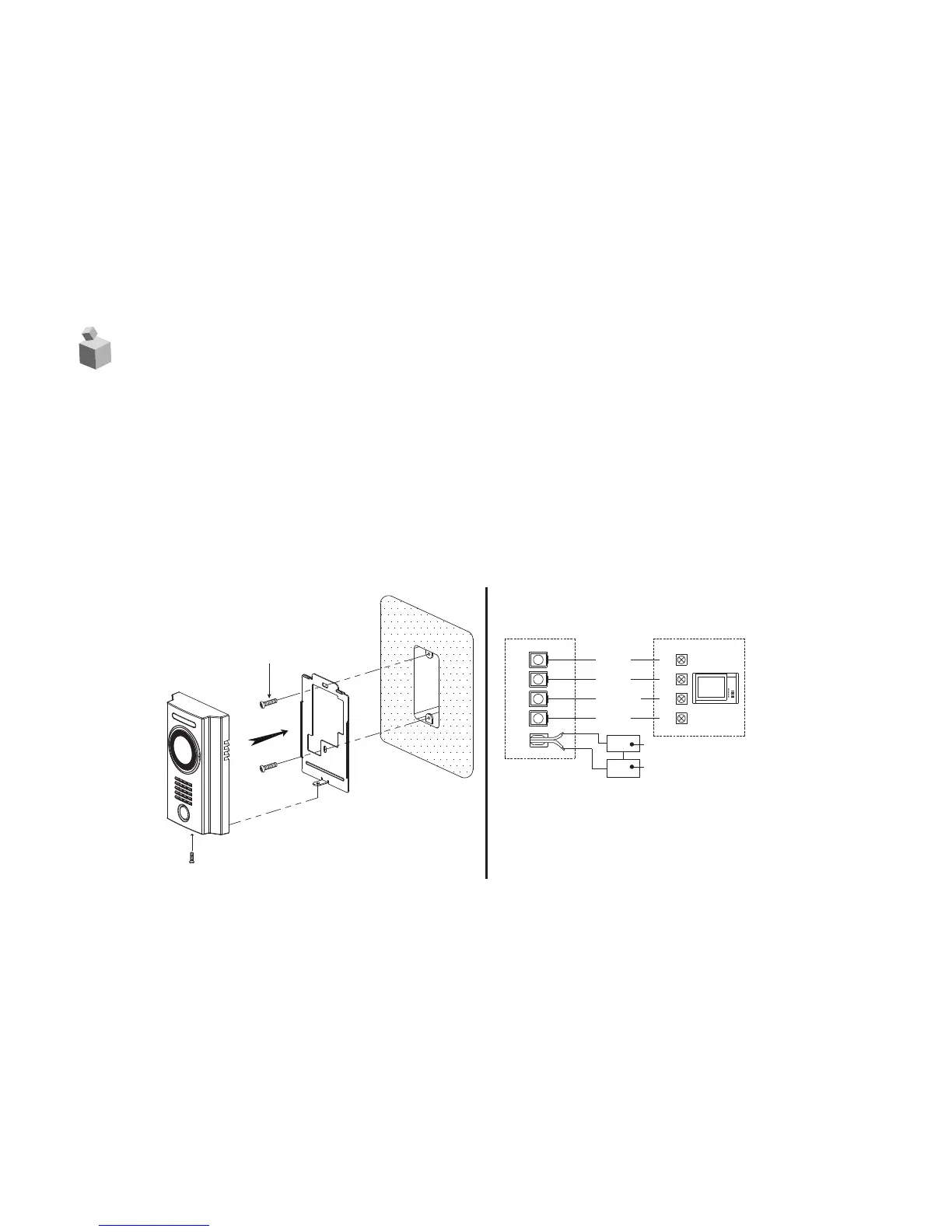

1. Match the fix the whole in the wall and the fixing bracket [FIG.1]
2. Match and connect monitor line as shown below [FIG.2]
(#1: Audio, #2: GND, #3: DC12V, #4: Video)
3. Adjust camera location on the wall by checking the image on monitor screen and
fix its location
4. Connect the Door Release Connection Line as shown below [FIG.2]
5. Tighten a screw at the bottom side of the camera [FIG.1]
#1
#2
#3
#4
#1
MONITOR
#2
#3
#4
Audio
GND
DC12V
Video
Door Release Cable
Door Release
[FIG-1] [FIG-2]
SCREW M3X8 (1EA)
SCREW T4X18 (2EA)
