- 4-
POWER
VOLUME
TONE
BUSY
LOCK
TALK
3.STRUCTURE

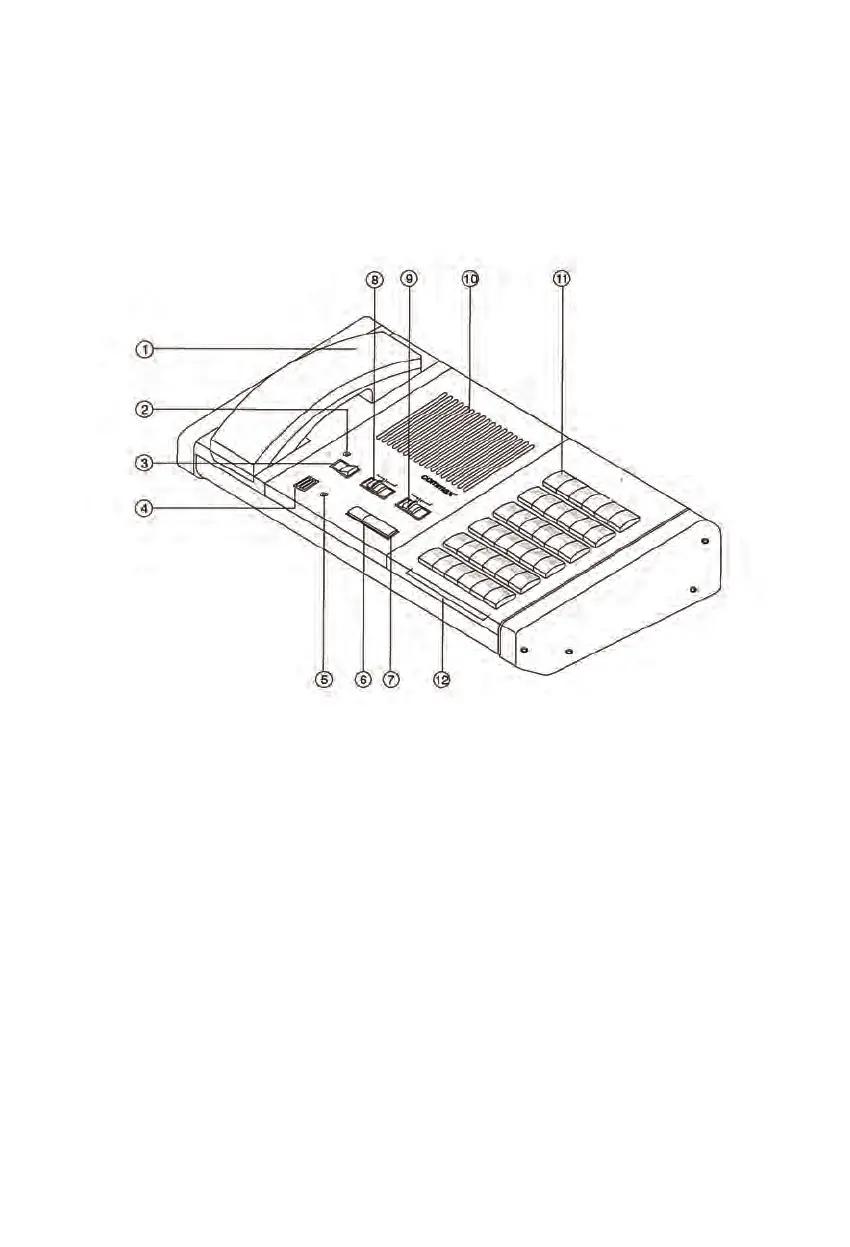

3-1. MASTER STATION
①
HAND SET :
② POWER LED : To check the Power Switch's condition.
③ POWER S/W : To provide a power.
④ C-MIC : To transmit a message.
⑤ BUSY LEN : To indicate busy line by lamp On.
⑥ LOCK BUTTON : Only to transmit a message in one way, the lamp is on.
⑦ TALK BUTTON : To press the button for talking. (during H/F communicating)
⑧ VOICE : To adjust receiving volume by three stage, High, Mid & Low.
⑨ TONE : To adjust receiving signal by three stage, High, Mid & Low.
⑩ SPEAKER : To output the message.
