id8 data sheet – V1.0/1023 commend.com P 10 / 12Subject to change without notice.

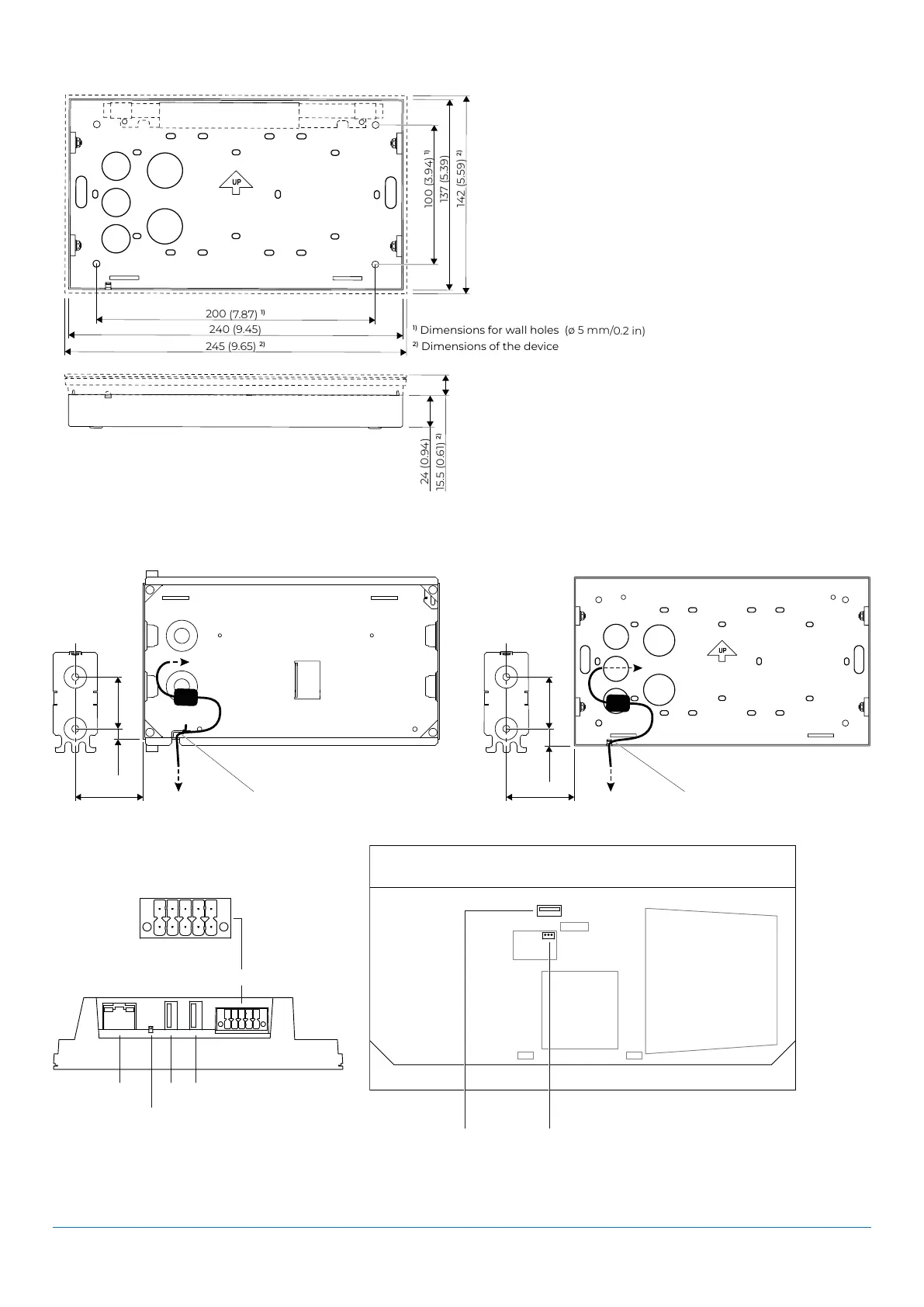

ID8 TD/ID8 TD CM WITH SURFACE MOUNT KIT ID8 SH
Measuring units in mm (in), not to scale!
100 (3.94)
1)
137 (5.39)
142 (5.59)
2)
24 (0.94)
15.5 (0.61)
2)
200 (7.87)
1)
240 (9.45)
245 (9.65)
2)
2)
Dimensions of the device
1)
Dimensions for wall holes (ø 5 mm/0.2 in)
CONNECTIONS
RJ45
Factory
reset
USB 2.0
I/Os
IN3
GND
OUT2 NC
OUT2 COM
OUT2 NO
IN1 IN2 OUT1 NC OUT1 COM OUT1 NO
USB 2.0 3-pin (gooseneck
microphone)
WALL KIT WITH HANDSET ID5 WMHS (WITH ID8 FB)
Measuring units in mm (in), not to scale!
50 (1.97)
Handset
45
(1.77)
9
(0.35)
Cable tie
ID8
WALL KIT HANDSET ID5 WMHS ( WITH ID8 SH)
Measuring units in mm (in), not to scale!
47 (1.85)
Handset
45
(1.77)
Cable tie
16
(0.63)
ID8
