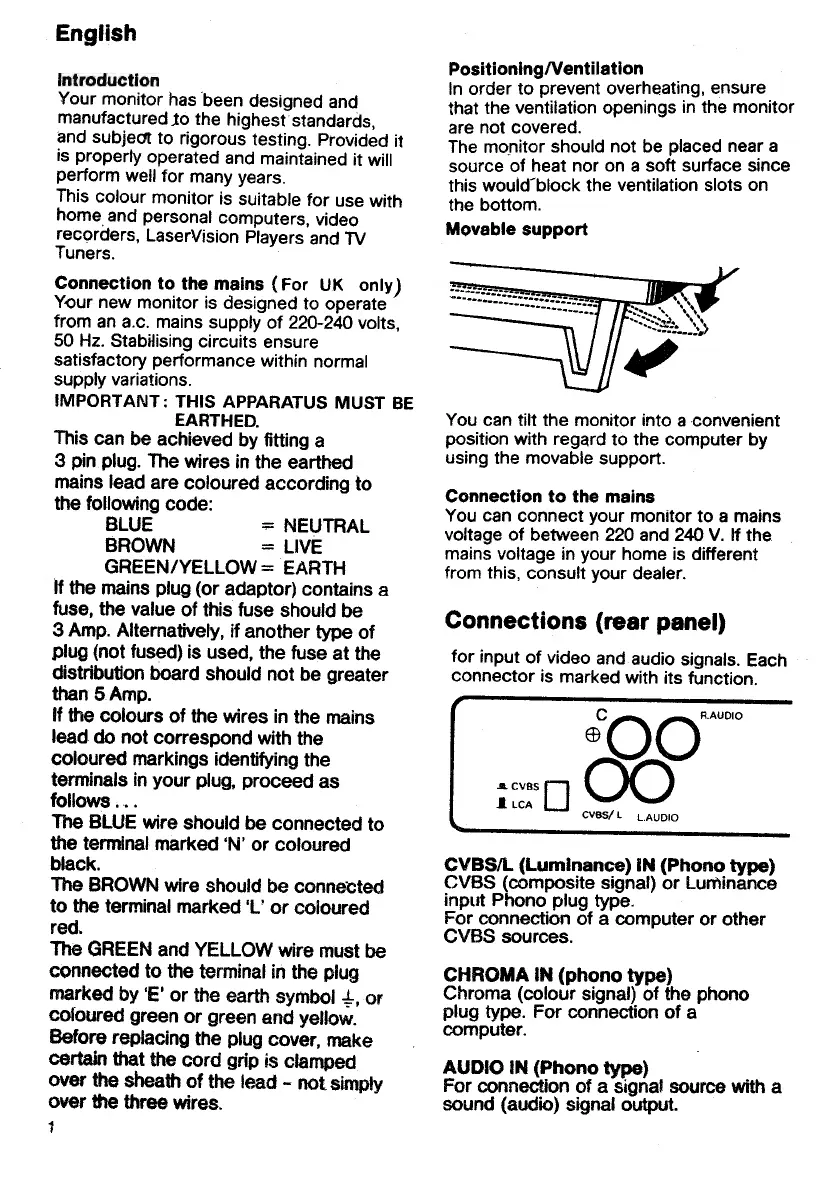

Introduction
Your
monitor
has
been
designed
and
manufactured
io
the
highest
standards,
and
subject
to
rigorous
testing.
Provided
it
is
properly
operated
and
maintained
it
will
perform
well
for
many
years.
This
colour
monitor
is
suitable
for
use
with
home
and
personal
computers,
video
recorders,
LaserVision
Players
and
TV
Tuners.
Connection to the mains (For UK only)
Your new monitor is designed to operate
from an a.c. mains supply of 220-240 volts,
50 Hz. Stabilising circuits ensure
satisfactory performance within normal
supply variations.
IMPORTANT: THIS APPARATUS MUST BE
EARTHED.
This can be achieved by fitting a
3 pin plug. The wires in the earthed
mains lead are coloured according to
the following code:
BLUE = NEUTRAL
BROWN = LIVE
GREEN/YELLOW = EARTH
If the mains plug (or adaptor) contains a
fuse, the value of this fuse should be
3 Amp. Alternatively, if another type of
plug (not fused) is used, the fuse at the
distribution board should not be greater
than 5 Amp.
If the colours of the wires in the mains
lead do not correspond with the
coloured markings identifying the
terminals in your plug, proceed as
follows . . .
The BLUE wire should be connected to
the terminal marked 'N' or coloured
black.
The BROWN wire should be connected
to me terminal marked 'L' or coloured
red.
The GREEN and YELLOW wire must be
connected to the terminal in the plug
marked
by
'E'
or
the
earth
symbol
4,
or
coloured
green
or
green
and
yellow.
Before
replacing
the
plug
cover,
make
certain
that
the
cord
grip
is
clamped
over
the
sheath
of
the
lead
-
not
simply
over the three wires.
Positioning/Ventilation
In order to prevent overheating, ensure
that the ventilation openings in the monitor
are not covered.
The monitor should not be placed near a
source of heat nor on a soft surface since
this would'block the ventilation slots on
the bottom.
Movable support
You can tilt the monitor into a convenient
position with regard to the computer by
using the movable support.
Connection to the mains
You can connect your monitor to a mains
voltage of between 220 and 240 V. If the
mains voltage in your home is different
from this, consult your dealer.
Connections
(rear
panel)
for input of video and audio signals. Each
connector is marked with its function.
CVBS/L L.AUDIO
CVBS/L (Luminance) IN (Phono type)
CVBS (composite signal) or Luminance
input Phono plug type.
For connection of a computer or other
CVBS sources.
CHROMA IN (phono type)
Chroma (colour signal) of the phono
plug type. For connection of a
computer.
AUDIO IN (Phono type)
For connection of a signal source with a
sound (audio) signal output.
