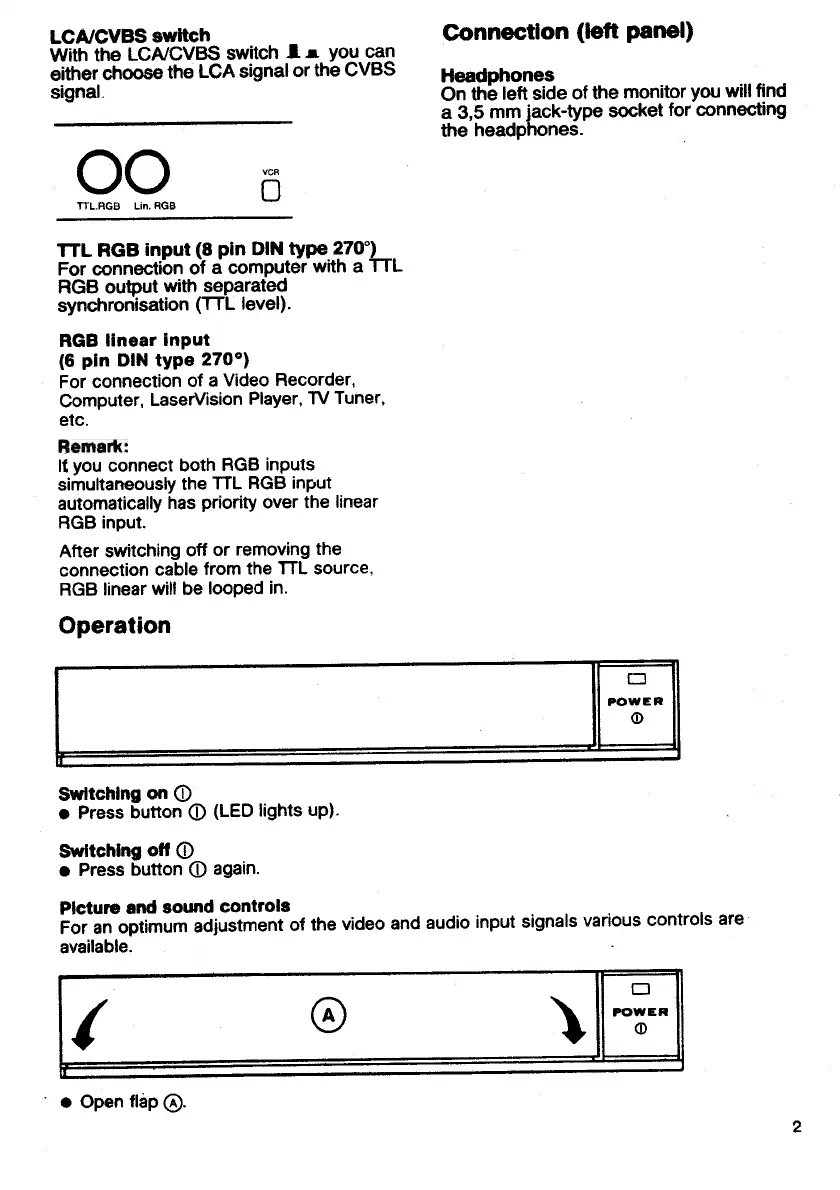

Commodore 1084S - Page 4

LCA/CVBS switch
With the LCA/CVBS switch Jl m you can
either
choose
the
LCA
signal
or
the
CVBS
signal.
oo
TTLRGB Un. RGB
Connection (left panel)
Headphones
On the left side of the monitor you will find
a 3,5 mm jack-type socket for connecting
the headphones.
D
TTL RGB input (8 pin DIN type 270°)
For connection of a computer with a TTL
RGB output with separated
synchronisation (TTL level).
RGB linear input
(6 pin DIN type 270°)
For connection of a Video Recorder,
Computer, LaserVision Player, TV Tuner,
etc.
Remark:
If you connect both RGB inputs
simultaneously the TTL RGB input
automatically has priority over the linear
RGB input.
After switching off or removing the
connection cable from the TTL source,
RGB linear will be looped in.
Operation
Switching on ©
• Press button © (LED lights up).
Switching off ©
• Press button © again.
Picture and sound controls
For
an
optimum
adjustment
of
the
video
and
audio
input
signals
various
controls
are
available.
Open flap 0.
