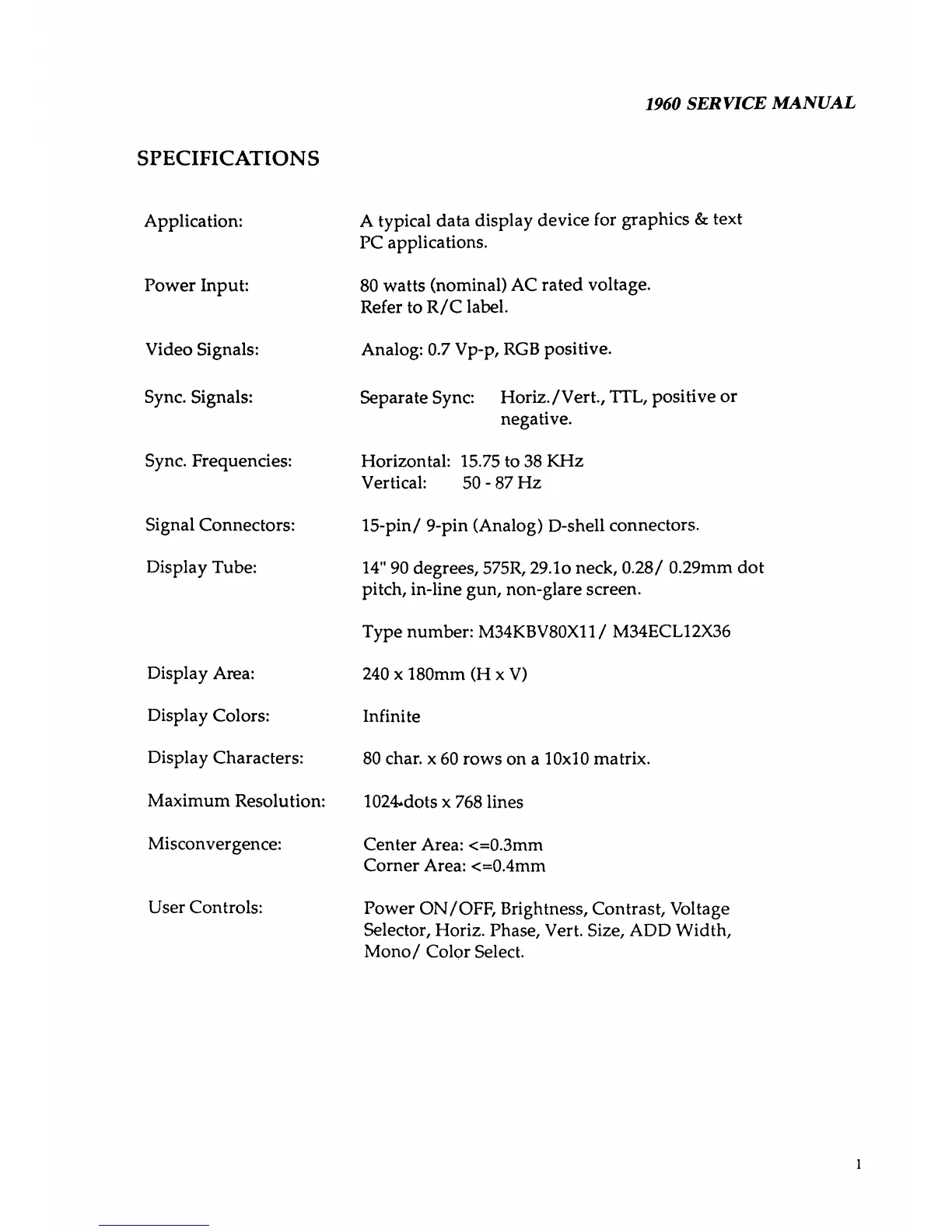

1960 SERVICE MANUAL
SPECIFICATIONS
Application:
A typical data display device for graphics & text
PC applications.
Power Input:
80 watts (nominal) AC rated voltage.
Refer to R/C label.
Video Signals:
Analog: 0.7 Vp-p, RGB positive.
Sync. Signals:
Separate Sync: Horiz./Vert., TTL, positive or
negative.
Sync. Frequencies:
Horizontal: 15.75 to 38 KHz
Vertical: 50 - 87 Hz
Signal Connectors:
15-pin/ 9-pin (Analog) D-shell connectors.
Display Tube:
14" 90 degrees, 575R, 29.1o neck, 0.28/ 0.29mm dot
pitch, in-line gun, non-glare screen.
Type number: M34KBV80X11/ M34ECL12X36
Display Area:
240 x 180mm (H x V)
Display Colors:
Infinite
Display Characters:
80 char, x 60 rows on a 10x10 matrix.
Maximum Resolution:
1024*dots x 768 lines
Misconvergence:
Center Area: <=0.3mm
Corner Area: <=0.4mm
User Controls:
Power ON/OFF, Brightness, Contrast, Voltage
Selector, Horiz. Phase, Vert. Size, ADD Width,
Mono/ Color Select.
i
