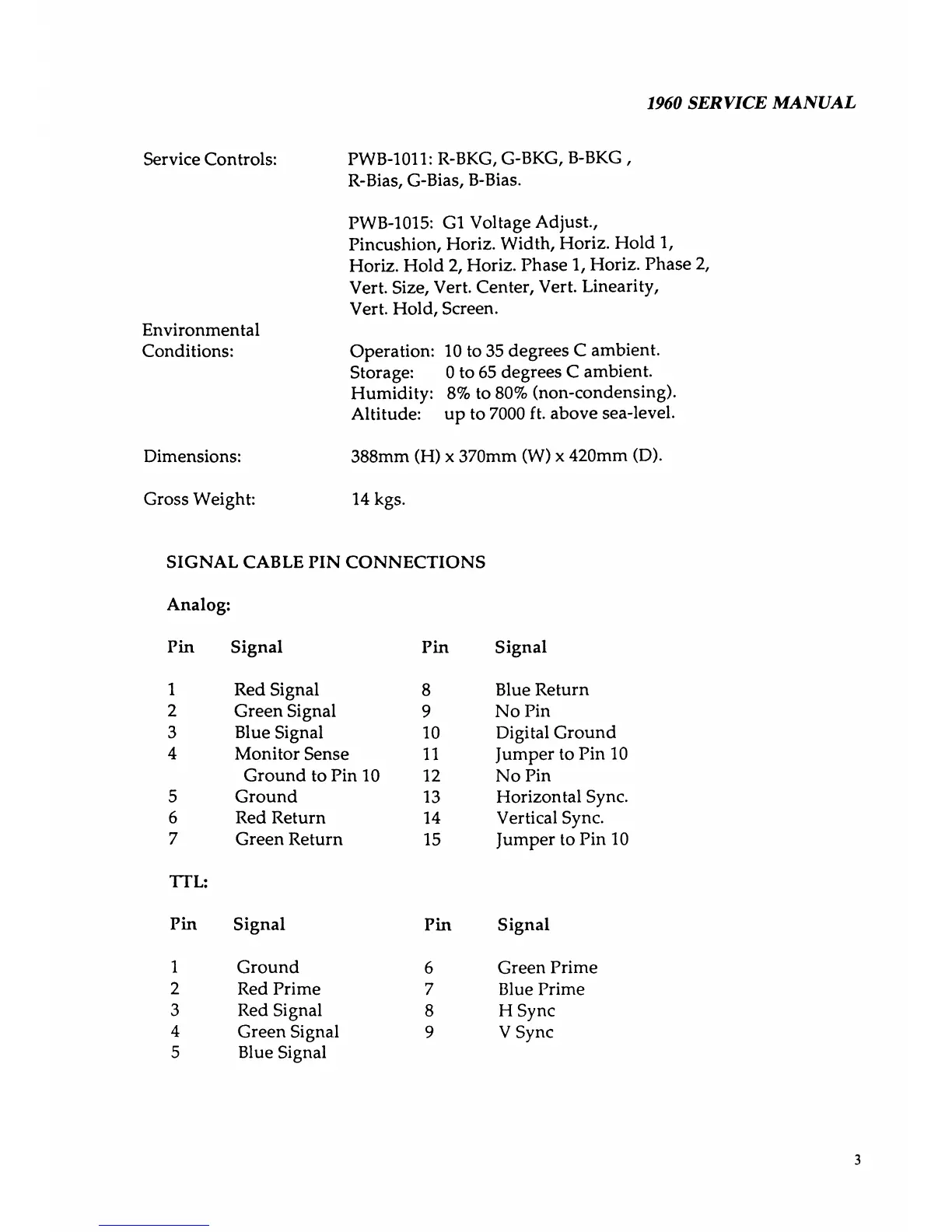

1960 SERVICE MANUAL
Service Controls:
Environmental
Conditions:
Dimensions:
PWB-1011: R-BKG, G-BKG, B-BKG ,
R-Bias, G-Bias, B-Bias.
PWB-1015: G1 Voltage Adjust.,
Pincushion, Horiz. Width, Horiz. Hold \,
Horiz. Hold 2, Horiz. Phase 1, Horiz. Phase 2,
Vert. Size, Vert. Center, Vert. Linearity,
Vert. Hold, Screen.
Operation: 10 to 35 degrees C ambient.
Storage: 0 to 65 degrees C ambient.
Humidity: 8% to 80% (non-condensing).
Altitude: up to 7000 ft. above sea-level.
388mm (H) x 370mm (W) x 420mm (D).
Gross Weight: 14 kgs.
SIGNAL CABLE PIN CONNECTIONS
Analog:
Pin
Signal
Pin
Signal
1
Red Signal
8 Blue Return
2
Green Signal
9 No Pin
3
Blue Signal
10 Digital Ground
4
Monitor Sense
11 Jumper to Pin 10
Ground to Pin 10
12
No Pin
5
Ground
13 Horizontal Sync.
6
Red Return
14
Vertical Sync.
7
Green Return
15 Jumper to Pin 10
TTL:
Pin
Signal
Pin Signal
1
Ground
6
Green Prime
2
Red Prime
7
Blue Prime
3
Red Signal
8
H Sync
4
5
Green Signal
Blue Signal
9
V Sync
3
