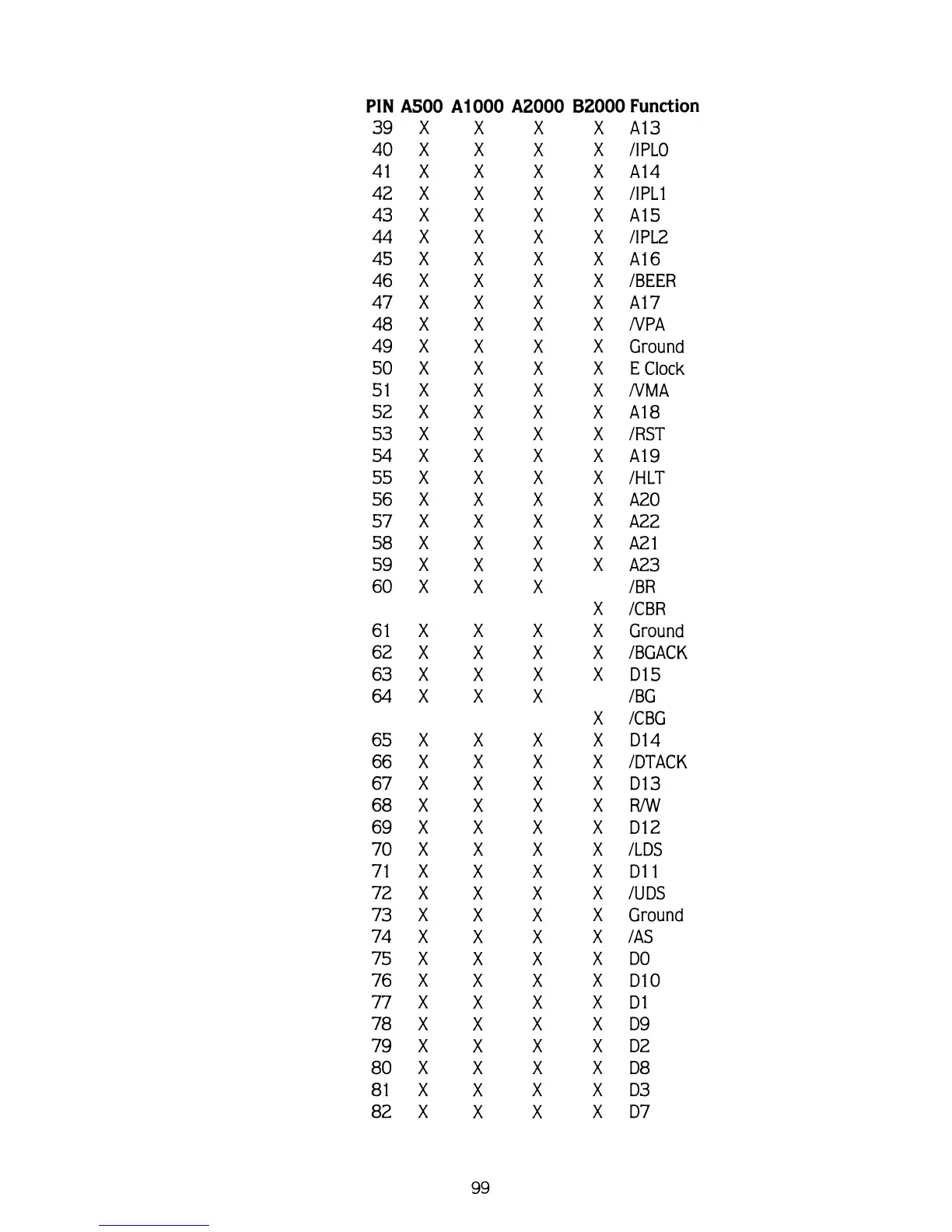

PIN A500 A1 000 A2000 B2000 Function
39 X X X X A13
40
X X X X lIPL0
41 X X X X A14
42
X X X X /IPLl
43 X X X X A15
44
X X X X /IPL2
45 X X X X A16
46
X X X X /BEER
47
X X X X A17
48 X X X X NPA
49
X X X X Ground
50
X X X X E Clock
51
X X X X NMA
52
X X X X A18
53
X X X X /RST
54 X X X X A19
55
X X X X IHLT
56 X X X X A20
57
X X X X A22
58
X X X X A21
59
X X X X A23
60
X X X /BR
X /CBR
61 X X X X Ground
62
X X X X IBGACK
63 X X X X D15
64 X X X /BC
X /CBG
65 X X X X D14
66
X X X X IDTACK
67 X X X X D13
68
X X X X RNV
69 X X X X D12
70
X X X X /LDS
71
X X X X D11
72
X X X X /UDS
73 X X X X Ground
74
X X X X /AS
75
X X X X DO
76
X X X X D10
77
X X X X D1
78
X X X X D9
79
X X X X D2
80
X X X X D8
81 X X X X D3
82
X X X X D7
