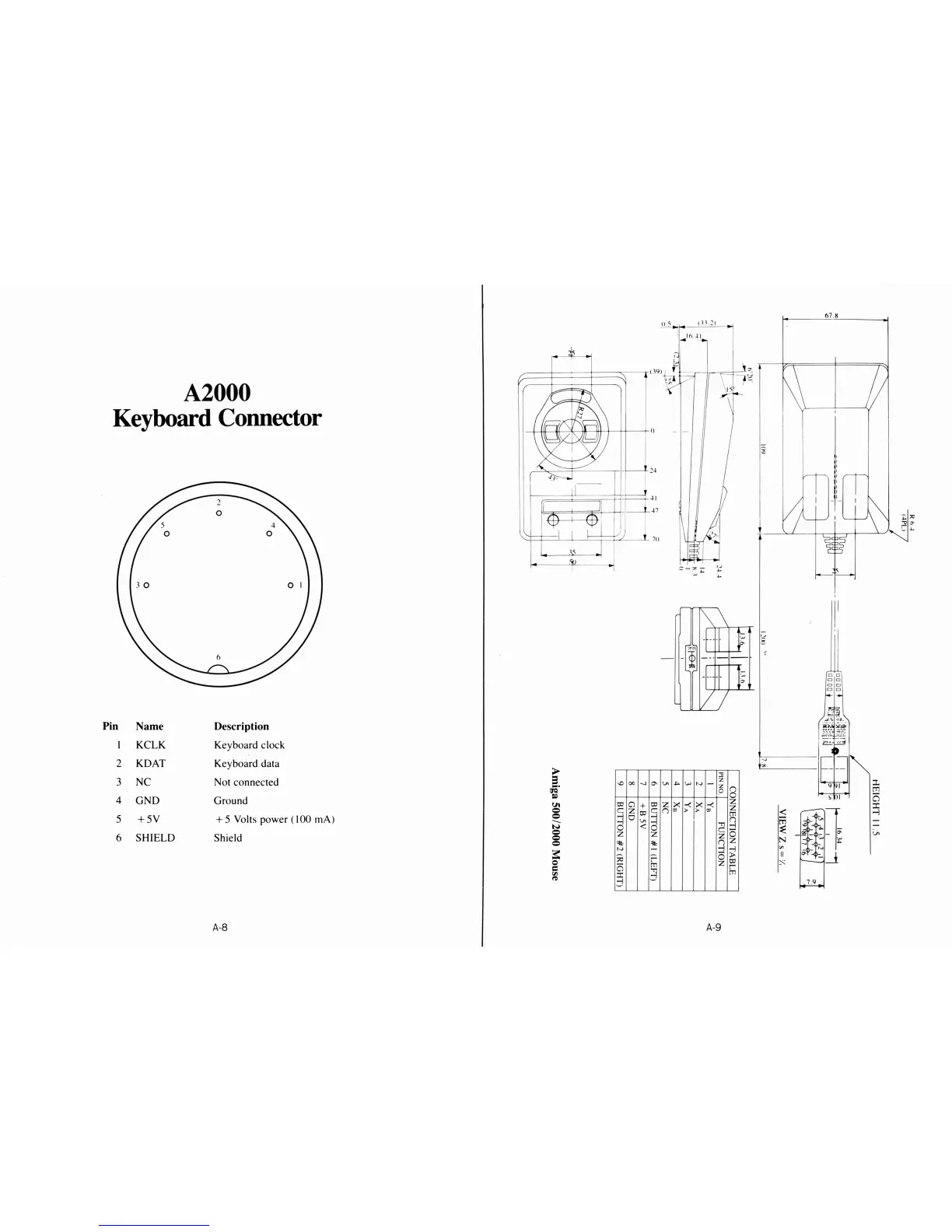

Keyboard
Connector
Pin Name Description
1
KCLK Keyboard clock
2
KDAT Keyboard data
3
NC Not connected
4
GND Ground
5
+5V
+
5
Volts power
(
l00
mA)
6
SHIELD Shield
