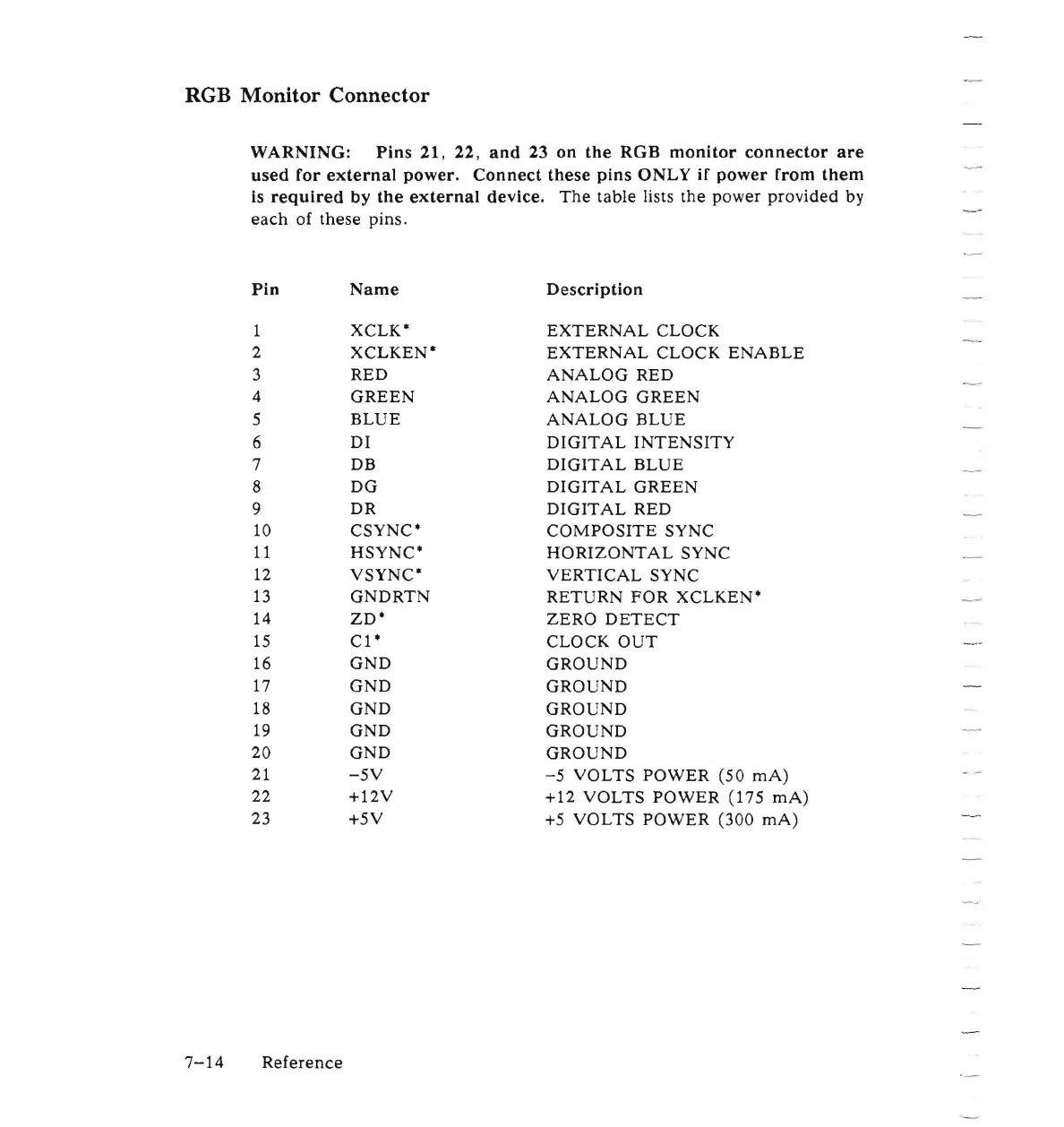

RGB Monitor Connector
WARNING: Pins 21, 22, and 23 on the RGB monitor connector are
used for external power. Connect these pins ONLY if power from them
is required by the external device. The table lists the power provided by
each of these pins.
Pin Name
1
XCLK*
2
XCLKEN*
3
RED
4
GREEN
5
BLUE
6
DI
7
DB
8
DG
9
DR
10 CSYNC"
11 HSYNC"
12
VSYNC"
13
GNDRTN
14
ZD"
15 C1"
16
GND
17 GND
18
GND
19
GND
20 GND
21 -5V
22
+12V
23
+5V
Description
EXTERNAL CLOCK
EXTERNAL CLOCK ENABLE
ANALOG RED
ANALOG GREEN
ANALOG BLUE
DIGITAL INTENSITY
DIGITAL BLUE
DIGITAL GREEN
DIGITAL RED
COMPOSITE SYNC
HORIZONTAL SYNC
VERTICAL SYNC
RETURN FOR XCLKEN"
ZERO DETECT
CLOCK OUT
GROUND
GROUND
GROUND
GROUND
GROUND
-5 VOLTS POWER (50 rnA)
+12 VOLTS POWER (175 rnA)
+5
VOLTS POWER (300 rnA)
