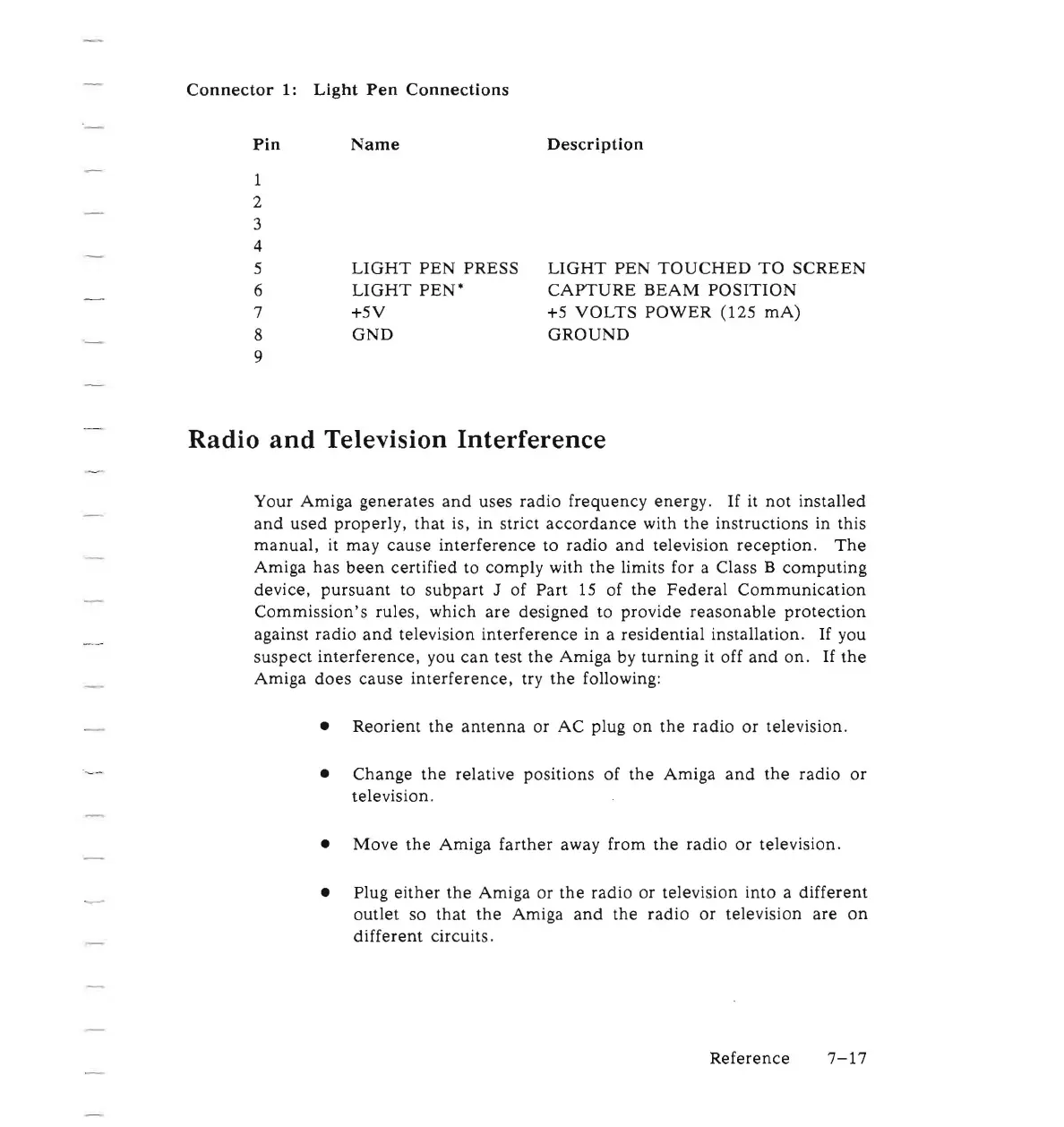

Connector 1: Light Pen Connections
Pin
Name
Description
1
2
3
4
5 LIGHT PEN PRESS LIGHT PEN TOUCHED TO SCREEN
6
LIGHT PEN· CAPTURE BEAM POSITION
7 +5V +5 VOLTS POWER (125 rnA)
8
GND GROUND
9
Radio and Television Interference
Your Amiga generates and uses radio frequency energy. If it not installed
and used properly, that is, in strict accordance with the instructions in this
manual, it may cause interference to radio and television reception. The
Amiga has been certified to comply with the limits for a Class B computing
device, pursuant to subpart J of Part 15 of the Federal Communication
Commission's rules, which are designed to provide reasonable protection
against radio and television interference in a residential installation. If you
suspect interference, you can test the Amiga by turning it off and on. If the
Amiga does cause interference, try the following:
•
Reorient the antenna or AC plug on the radio or television.
• Change the relative positions of the Amiga and the radio or
television .
•
Move the Amiga farther away from the radio or television.
• Plug either the Amiga or the radio or television into a different
outlet so that the Amiga and the radio or television are on
different circuits .
Reference 7 -17
