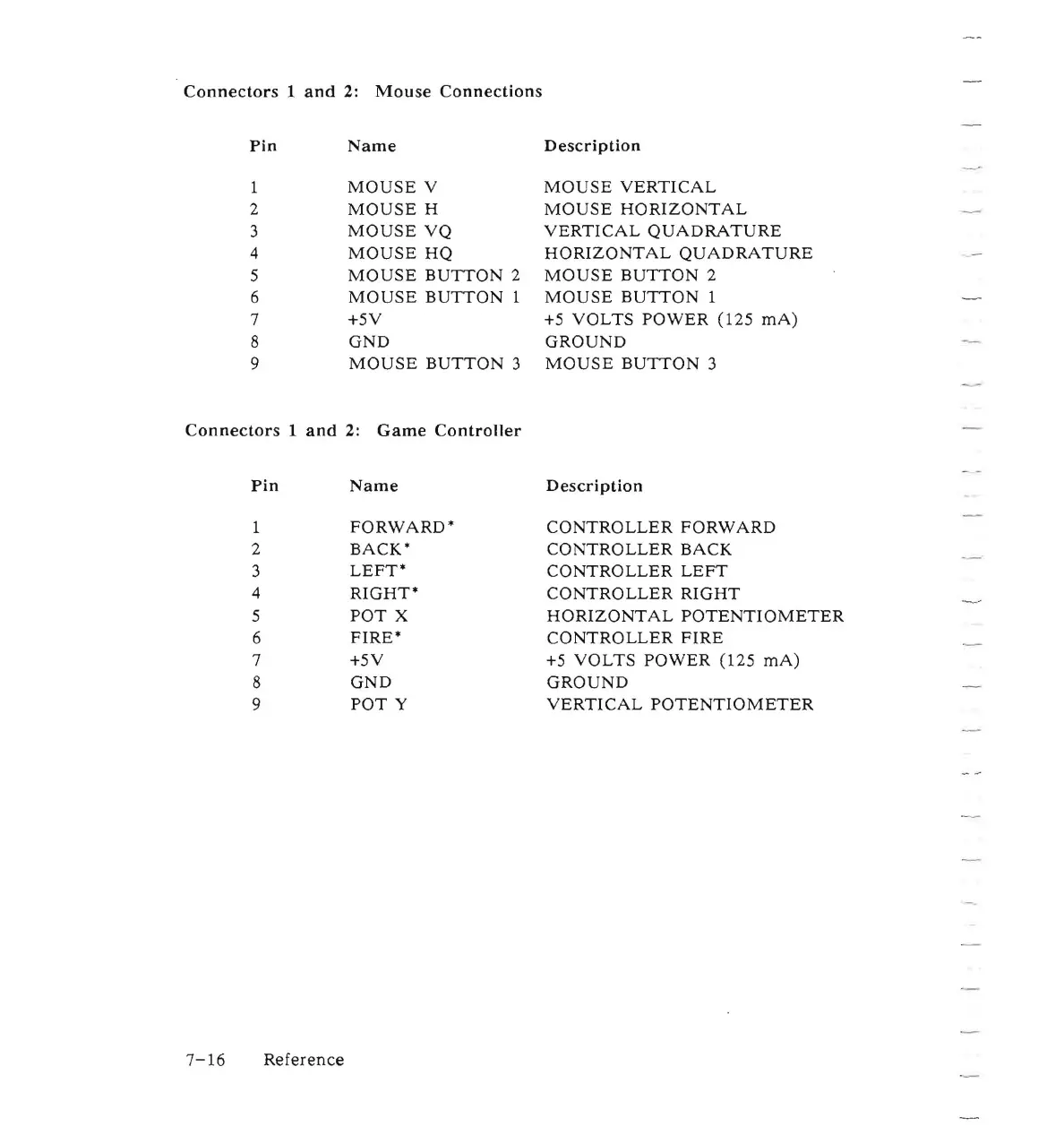

Connectors 1 and 2: Mouse Connections
Pin Name
1
MOUSE V
2
MOUSE H
3
MOUSE VQ
4 MOUSE HQ
5
MOUSE BUTTON 2
6
MOUSE BUTTON 1
7
+5V
8
GND
9
MOUSE BUTTON 3
Connectors 1 and 2: Game Controller
Pin Name
1
FORWARD*
2
BACK·
3
LEFT·
4 RIGHT·
5
POT X
6
FIRE·
7 +5V
8
GND
9
POT Y
Description
MOUSE VERTICAL
MOUSE HORIZONTAL
VERTICAL QUADRATURE
HORIZONTAL QUADRATURE
MOUSE BUTTON 2
MOUSE BUTTON 1
+5
VOLTS POWER (125 rnA)
GROUND
MOUSE BUTTON 3
Description
CONTROLLER FORWARD
CONTROLLER BACK
CONTROLLER LEFT
CONTROLLER RIGHT
HORIZONTAL POTENTIOMETER
CONTROLLER FIRE
+5 VOLTS POWER (125 rnA)
GROUND
VERTICAL POTENTIOMETER
