Commodore C16 - Page 10

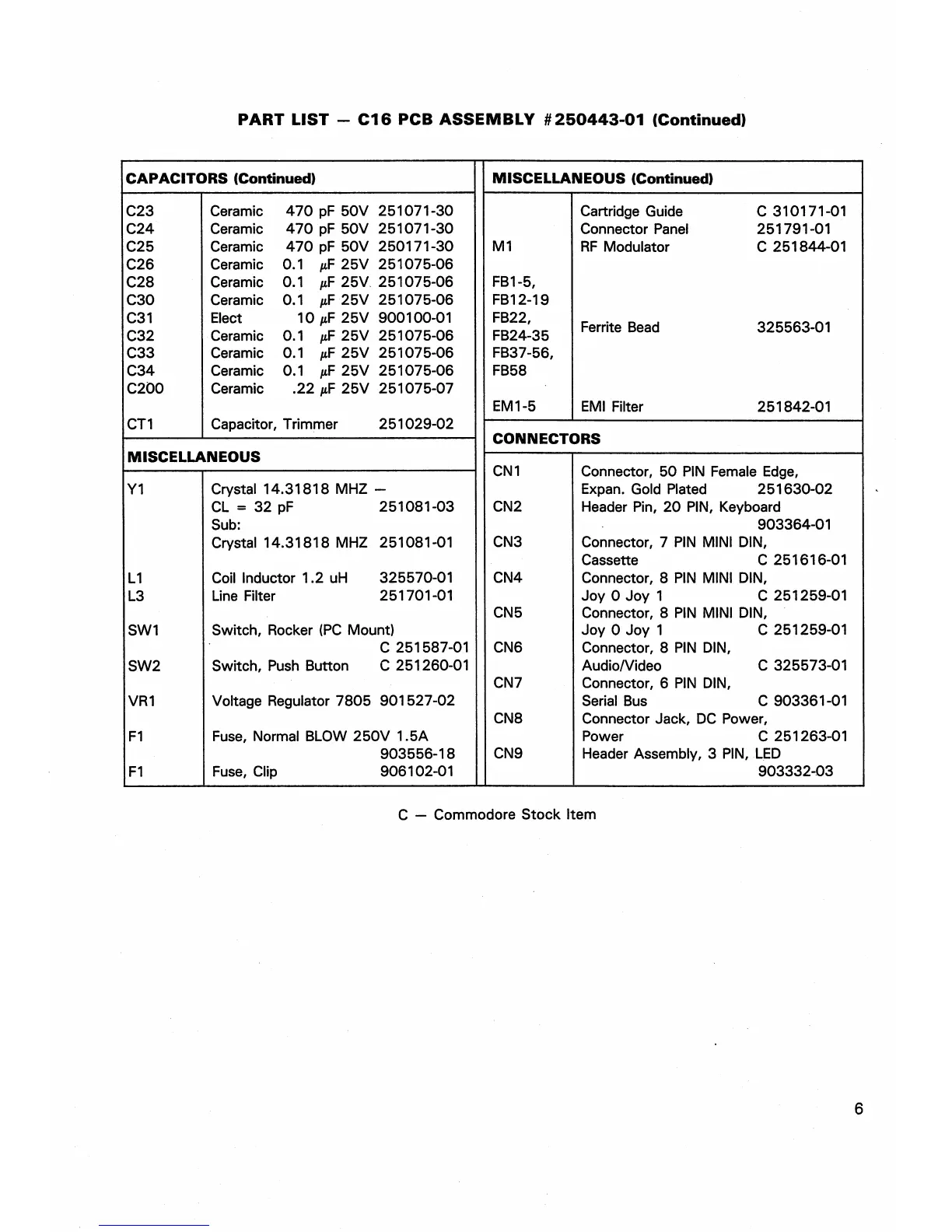

PART LIST - C16 PCB ASSEMBLY #250443-01 (Continued)
CAPACITORS (Continued)
C23
C24
C25
C26
C28
C30
C31
C32
C33
C34
C200
CT1
Ceramic 470 pF 50V 251071-30
Ceramic 470 pF 50V 251071-30
Ceramic 470 pF 50V 250171-30
Ceramic 0.1 pF 25V 251075-06
Ceramic 0.1 pF 25V 251075-06
Ceramic 0.1 ^F 25V 251075-06
Elect 10 jiF 25V 900100-01
Ceramic 0.1 /iF 25V 251075-06
Ceramic 0.1 /iF 25V 251075-06
Ceramic 0.1 /iF 25V 251075-06
Ceramic .22 pF 25V 251075-07
Capacitor, Trimmer 251029-02
MISCELLANEOUS
Y1
L1
L3
SW1
SW2
VR1
F1
F1
Crystal 14.31818 MHZ -
CL - 32 pF 251081-03
Sub:
Crystal 14.31818 MHZ 251081-01
Coil Inductor 1.2 uH 325570-01
Line Filter 251701-01
Switch, Rocker (PC Mount)
C 251587-01
Switch, Push Button C 251260-01
Voltage Regulator 7805 901527-02
Fuse, Normal BLOW 250V 1.5A
903556-18
Fuse, Clip 906102-01
MISCELLANEOUS (Continued)
M1
FB1-5,
FB12-19
FB22,
FB24-35
FB37-56,
FB58
EM 1-5
Cartridge Guide C 310171-01
Connector Panel 251791-01
RF Modulator C 251844-01
Ferrite Bead 325563-01
EMI Filter 251842-01
CONNECTORS
CN1
CN2
CN3
CN4
CN5
CN6
CN7
CN8
CN9
Connector, 50 PIN Female Edge,
Expan. Gold Plated 251630-02
Header Pin, 20 PIN, Keyboard
903364-01
Connector, 7 PIN MINI DIN,
Cassette C 251616-01
Connector, 8 PIN MINI DIN,
Joy 0 Joy 1 C 251259-01
Connector, 8 PIN MINI DIN,
Joy 0 Joy 1 C 251259-01
Connector, 8 PIN DIN,
Audio/Video C 325573-01
Connector, 6 PIN DIN,
Serial Bus C 903361-01
Connector Jack, DC Power,
Power C 251263-01
Header Assembly, 3 PIN, LED
903332-03
C — Commodore Stock Item
