Commodore HPD1500LB - Page 16

16
INSTRUCTIONS & DIAGRAMS
16

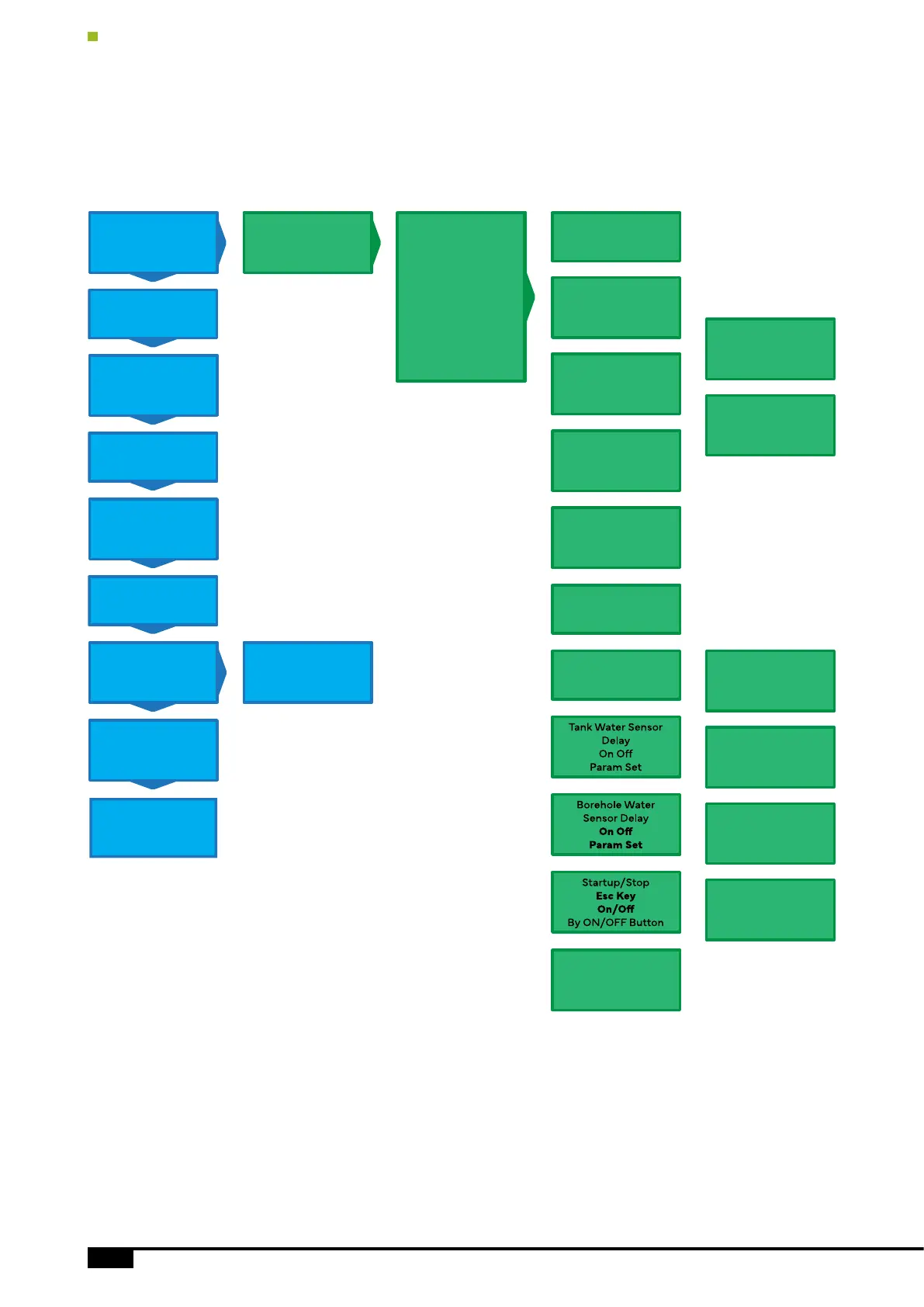

LCD Displays
HSPH5500H
ID: 9792
On(Working)
14:24 07/16/19
Solar Power
Voltage: 592 (V)
Current: 4.4 (A)
Hybrid On
Solar: 5.1 (KW)
AC: 2.2 (KW)
Total: 7.3 (KW)
AC-Out 3Ph FWD
Freq: 50 (Hz)
Current: 10.0 (A)
Inverter Status
No Warning
No Error
Temp: 35. 6 Degree
Water Status
Tank Empty
Borehole Full
Error History
Error: 32
14:24 07/16/19
More Clear All
Generated Power
1.3 KW.H
R Time: 2.5
C Life: 99.9%
Design @ XXXX
V: 5.28.20
Serial Info
XXXXXXXXXXXXX
Error History
Clear All Data?
Esc / Enter
More Clear All
Enter Into
Setting Menu
0 0 0 0
Verify the PW
System Setting
1. Working Time
2. Hybrid/Stop
3. Dry-Run Detect
4. Tank Sensor
5. 5. Borehole Sensor
6. Time Calibrate
7. System PW Set
8. Tank Timer
9. Borehole Timer
10. Esc Key Fun
11. Factory Reset
Working Time
Start - Stop (H:M)
Time: 0 :0 - 23:59
PV Low Power
to Hybrid/Stop
LE: 25 Hz In 20 Sec
15 Min Restart
Dry-Run Setting
Enable/Disable
Parm Setting
Ref LE Curt: 2 A
Tank Sensor Set
Enable
Disable
State Now: Enable
Borehole Sensor
Enable
Disable
State Now: Enable
Time Calibrate
(H:M M/D/Y)
14 : 25 07 / 16 / 19
System Password
0 0 0 0
Verify PW Please
Factory Reset
Enter
Back
Esc Key Cancel
Dry-Run Protect
Enable
Disable
State Now: Enable
Dry-Run Project
By Software
LE Current 10 (A)
Stop Time: 30 (M)
Time to Delay
Enable
Disable
State now: Enable
Tank Sensor
Detect 10 (s)
Restart 5 (m)
Once water full
Timer to Delay
Enable
Disable
State now: Enable
Borehole Sensor
Detect: 10(s)
Restart 5(m)
Once water full
System Setting
1. Working Time
2. Hybrid/Stop
3. Dry-Run Detect
4. Tank Sensor
5. 5. Borehole Sensor
6. Time Calibrate
7. System PW Set
8. Tank Timer
9. Borehole Timer
10. Esc Key Fun
11. Factory Reset
