SOLAR PUMPING INVERTER I USER MANUAL
17
Please pay attention to the following parameters. Incorrect settings may reduce inverter operation eciency or cause
the inverter to stop operating.
Note: AC Pump Phase setting only valid on a 220V inverter.
HSPH5500H
ID: 9792
On(Working)
14:24 07/16/19
Enter Into
Setting Menu

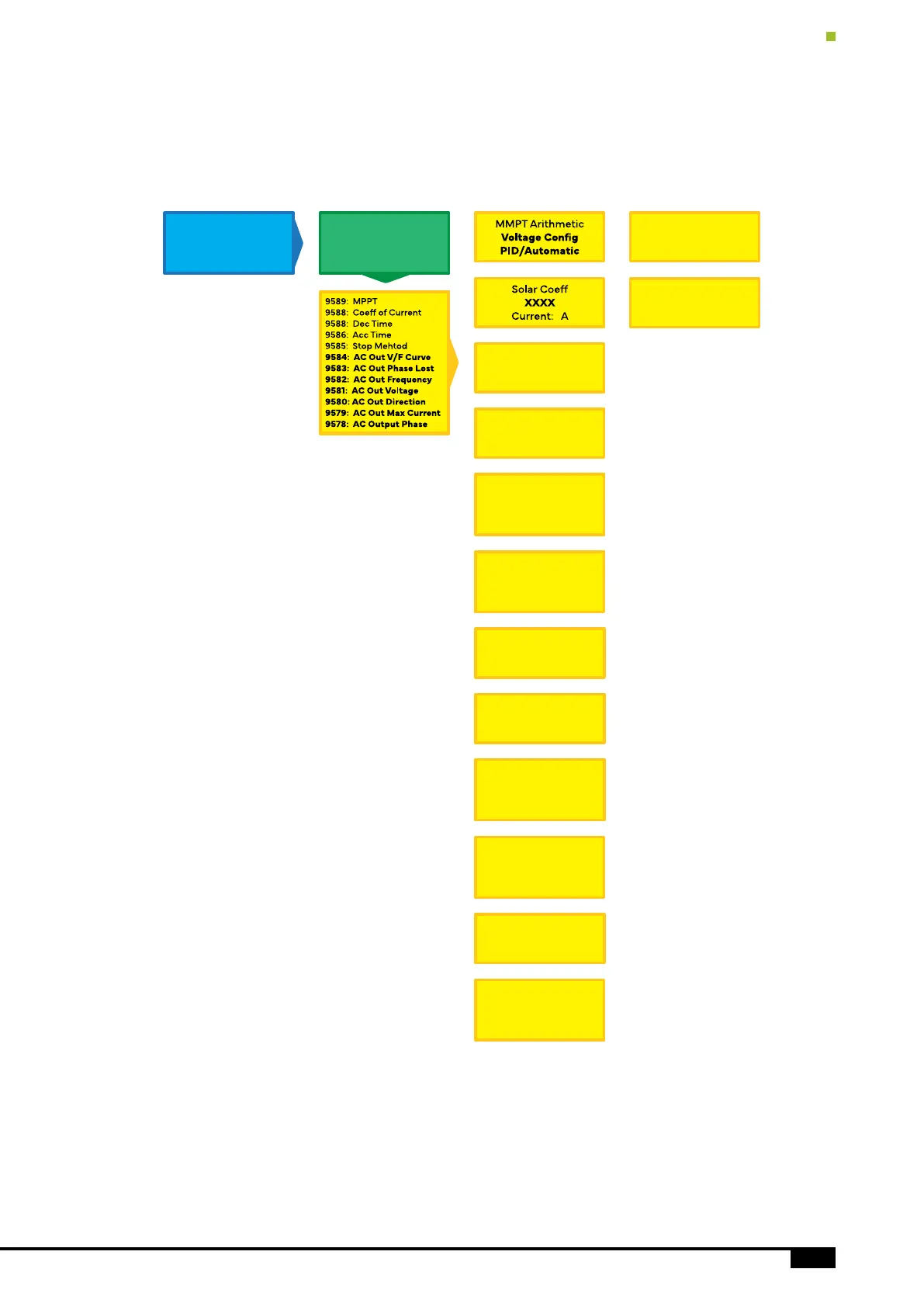

0 0 0 0
Verify the PW
Deceleration Sec
XXXX
of inverter stop
Accelerated
XXXX
Sec of startup
Inverter Stop
Coast
Decelerate
Now: Coast
VF Curve Set
Linar
P1.3 1.5 1.7 2
Now: power 2
Ac out Phaselost
Det time 1.0 S
Det Ampere: 30%
Ac Out Max
50
Frequency (Hz)
Ac Output
Max Voltage
389
323~506V
Phase Sequence
Forward
Reverse
State Now: FWD
Ac Output
021
Maximum Ampere
AC Pump Phase
Single
Three
State Now: Single
Solar Panel
556
Vmp voltage
Mppt Work Mode
PID Automatic
Automatic Mppt
MPPT Work Mode
PID Automatic
Automatic MPPT
AC out Phaselost
Det time 1.0 S
Det Ampere: 30%
AC Out Max
50
Frequency (Hz)
AC Output
Max Voltage
389
323~506V
AC Output
021
Maximum Ampere
