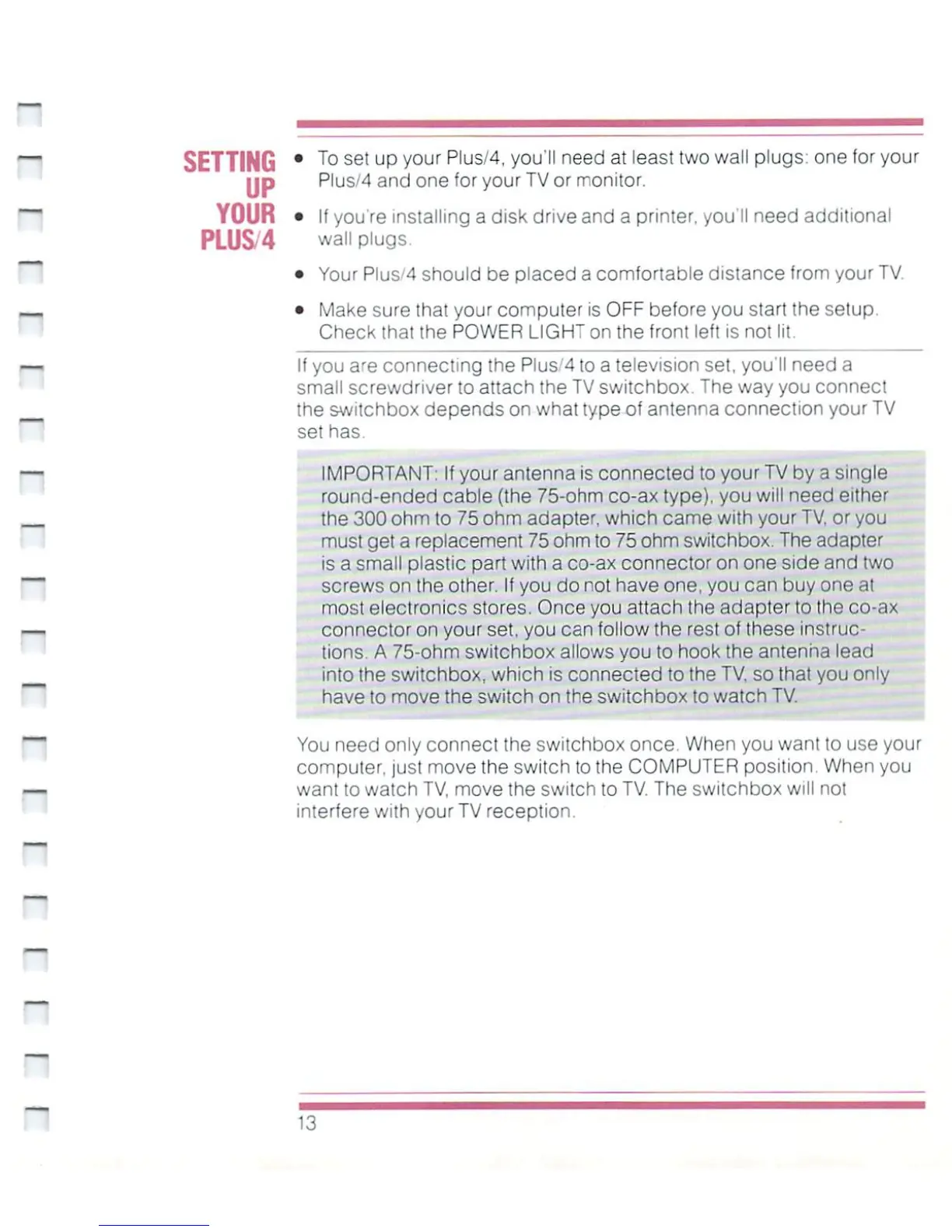

Commodore Plus 4 - Setting up your Commodore Plus;4

TING • To set UP y°ur P'us''4' y°u'" need at leasl tw0 wa" P'ugs. one for your
yp Plus/4 and one for your TV or monitor.
YOUR • If you're installing a disk drive and a printer, you'll need additional
PLUS/4 wall plugs.
• Your Plus'4 should be placed a comfortable distance from your TV.
• Make sure that your computer is OFF before you start the setup.
Check that the POWER LIGHT on the front left is not lit.
If you are connecting the Plus'4 to a television set. you'll need a
small screwdriver to attach the TV switchbox. The way you connect
the switchbox depends on what type of antenna connection your TV
set has
IMPORTANT: If your antenna is connected to your TV by a single
round-ended cable {the 75-ohm co-ax type), you will need either
the 300 ohm to 75 ohm adapter, which came with your TV, or you
must get a replacement 75 ohm to 75 ohm switchbox. The adapter
is a small plastic part with a co-ax connector on one side and two
screws on the other If you do not have one, you can buy one at
most electronics stores. Once you attach the adapter to the co-ax
connector on your set. you can follow the rest of these instruc
tions. A 75-ohm switchbox allows you to hook the antenna lead
into the switchbox, which is connected to the TV, so that you only
have to move the switch on the switchbox to watch TV.
You need only connect the switchbox once. When you want to use your
computer, just move the switch to the COMPUTER position. When you
want to watch TV, move the switch to TV. The switchbox will not
interfere with your TV reception.
13
