Chapter 1: Introducing the VIC 20 Computer 5
•••
a. 8 X 8 dot matrix
b. Sample ietter A
c. Sample Graphic

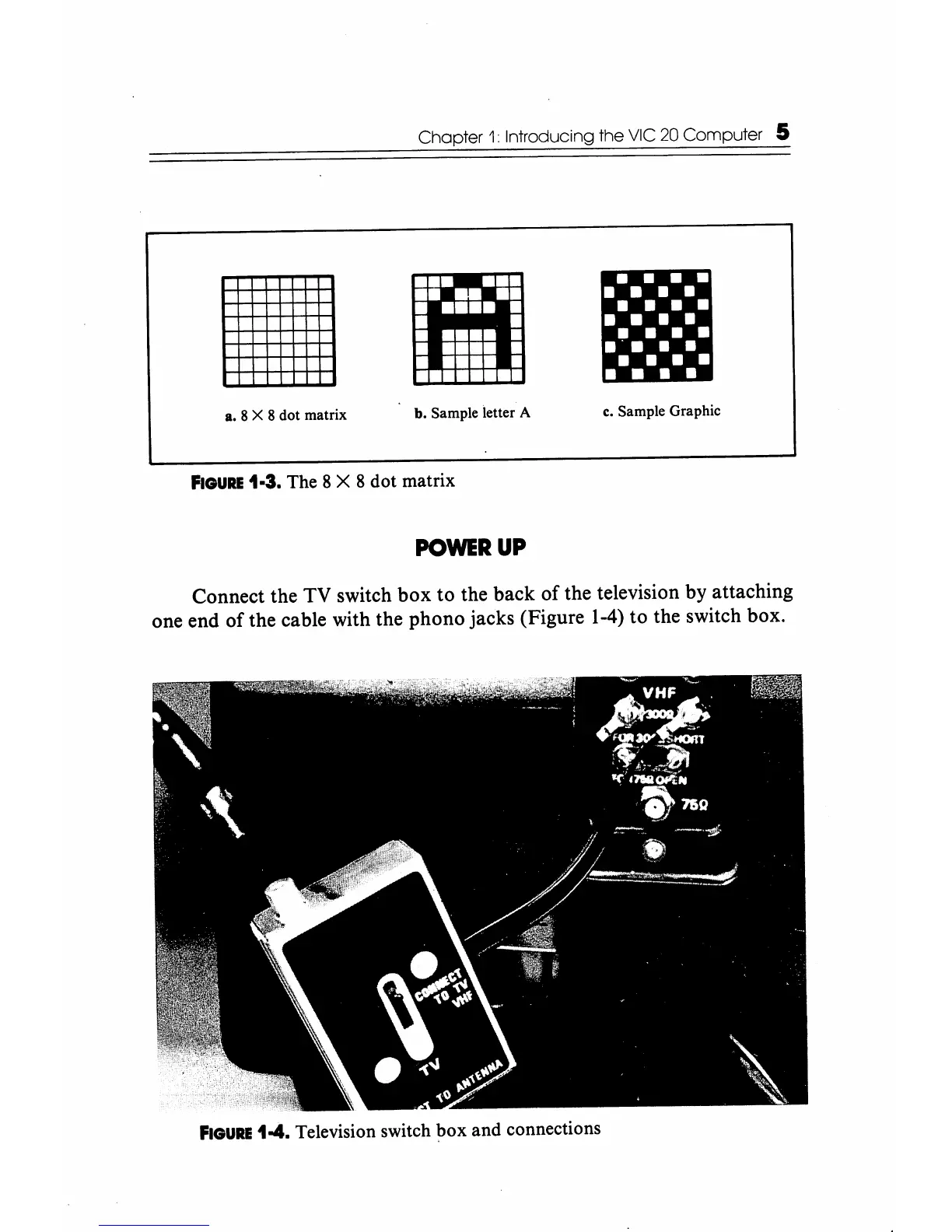

FIGURE 1·3. The 8 X 8 dot matrix
POWER UP
Connect the TV switch box to the back of the television by attaching
one end of the cable with the phono jacks (Figure
1-4) to the switch box.
FIGURE 1-4. Television switch box and connections
