I SERIES IV6-LAU Instructions Page 7

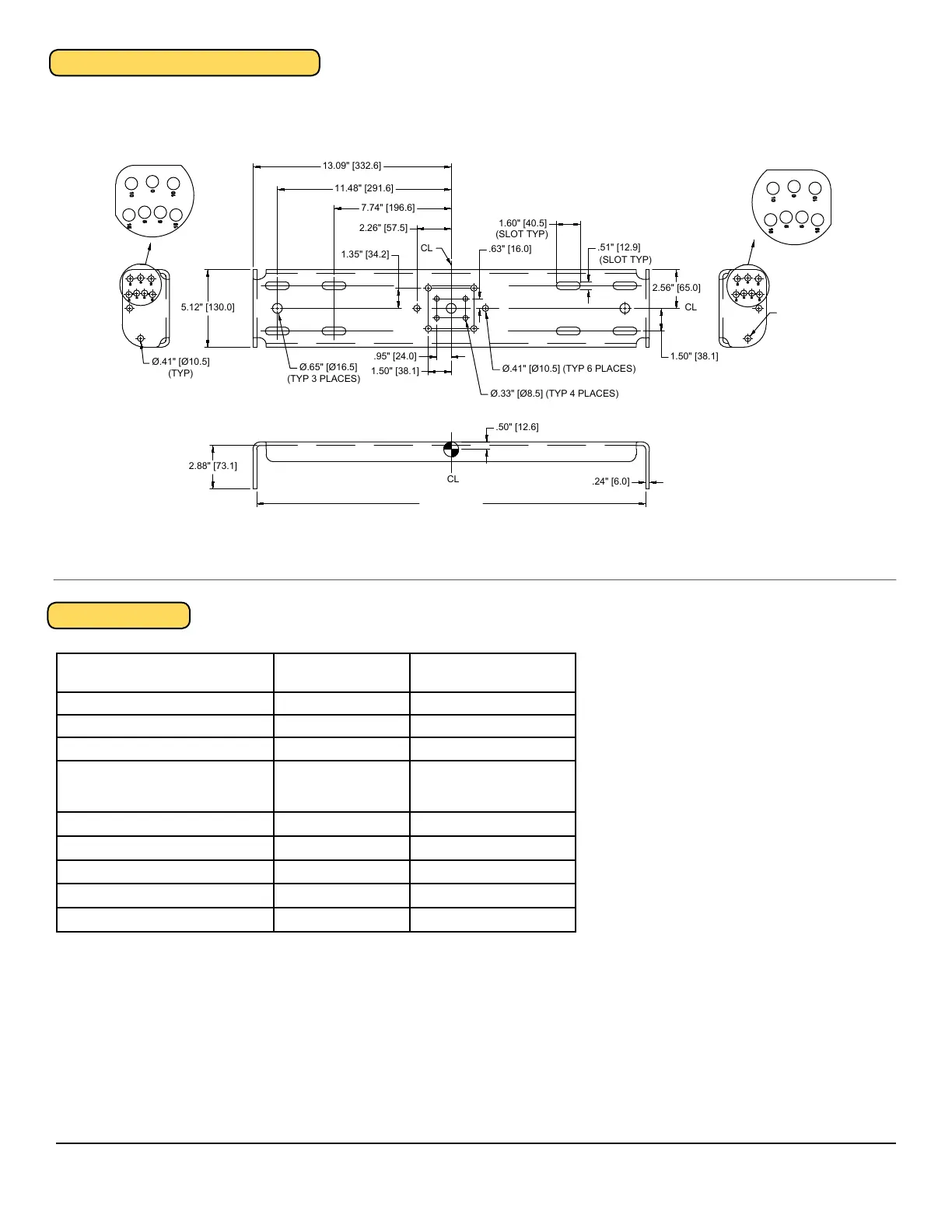

TECHNICAL DRAWING
25.72" [653.2]
2.88" [73.1]
.24" [6.0]
Ø.41" [Ø10.5]
(TYP)
Ø.41" [Ø10.5]
(TYP)
5.12" [130.0]
2.56" [65.0]
CL
11.48" [291.6]
7.74" [196.6]
2.26" [57.5]
1.50" [38.1]
CL
1.50" [38.1]
.95" [24.0]
.63" [16.0]
1.35" [34.2]
1.60" [40.5]
.51" [12.9]
(SLOT TYP)
(SLOT TYP)
Ø.65" [Ø16.5]
(TYP 3 PLACES)
Ø.41" [Ø10.5] (TYP 6 PLACES)
Ø.33" [Ø8.5] (TYP 4 PLACES)
13.09" [332.6]
.50" [12.6]
CL
IV6-LAU
WEIGHTS
LOUDSPEAKERS
(includes 1 pair splay brackets) Indoor [lbs (kg)] Outdoor / WR [lbs (kg)]
IV6-1122/05 77.3 (35.1) 62.5 (28.3)
IV6-1122/15 73.5 (33.3) 59.1 (26.8)
IV6-118S 132.9 (60.3) 99.3 (45.0)
ACCESSORIES
(available from Community)
Weight
Indoor [lbs (kg)]
Working Load Limit
[lbs (kg)]
IV6-GP-AF 76 lbs (34.5kg) 1300 lbs (589.7 kg)
IV6-LAF-PBB 23 lbs (10.4kg) 850 lbs (385.6 kg)
IV6-SB-AF 108.0 (49.0) 2000 lbs (907.2 kg)
IV6-LAU 13.5 lbs (6.1 kg) 500 lbs (226.8 kg)
PY1-EN750-1550 6 lbs (2.7 kg) 1550 lbs (703.1 kg)
