ComNav 1101 Autopilot
Control Head
The 1101 Control Head provides a means for the user to control the
Autopilot and monitor the system while it is in use.
The 1101 Control Head may be secured using the stainless steel
Angle Mounting Bracket included with the Autopilot System, or
surface mounted onto a console panel.
The Control Head connects directly to the Signal Processing Unit, or
SPU as it is sometimes known, via a twelve conductor cable on
the rear of the unit. This cable comes complete with a special
connector on the end to allow it to quickly and easily plug into the
Control Head receptacle on the SPU. The Control Head should be
plugged in to the Auxiliary Station receptacle only if there is already
a separate 1101 Control Head connected to the Control Head
receptacle.

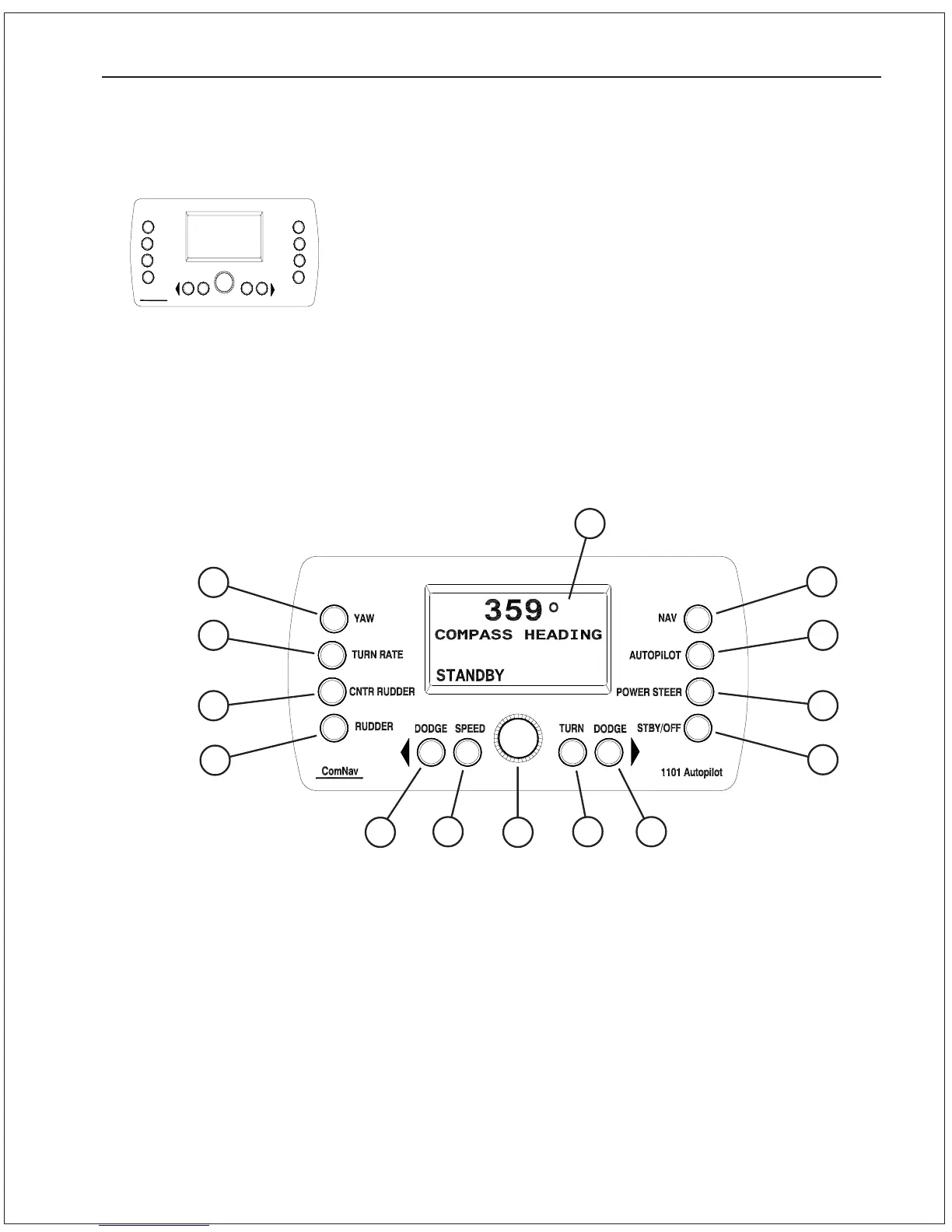

ComNav
1101 Autopilot
YA W
TURN
RA TE
CNTR
RUDDER
RUDDER
DO DGE SP EED TUR N
NA V
AUTOPILOT
POWER STEER
STBY/ OFF
DO DGE
359°
Compass Heading
STANDBY SLOW
1101 Control Head
Part # 81434
SYSTEM OVERVIEW 3 - 3
1) LCD DISPLAY SCREEN
2) STBY/OFF button
3) POWER STEER button
4) AUTOPILOT button
5) NAV button
6) DODGE PORT button
7) SPEED button
8) ADJUSTMENT KNOB
9) TURN button
10) DODGE STARBOARD button
11) RUDDER button
12) CNTR RUDDER button
13) TURN RATE button
14) YAW button
14
97
6 8
11
12
13
1
10
5
2
3
4
