ComNav 1101 - Rudder Feedback and Distribution

ComNav 1101 Autopilot SYSTEM OVERVIEW 3 - 7

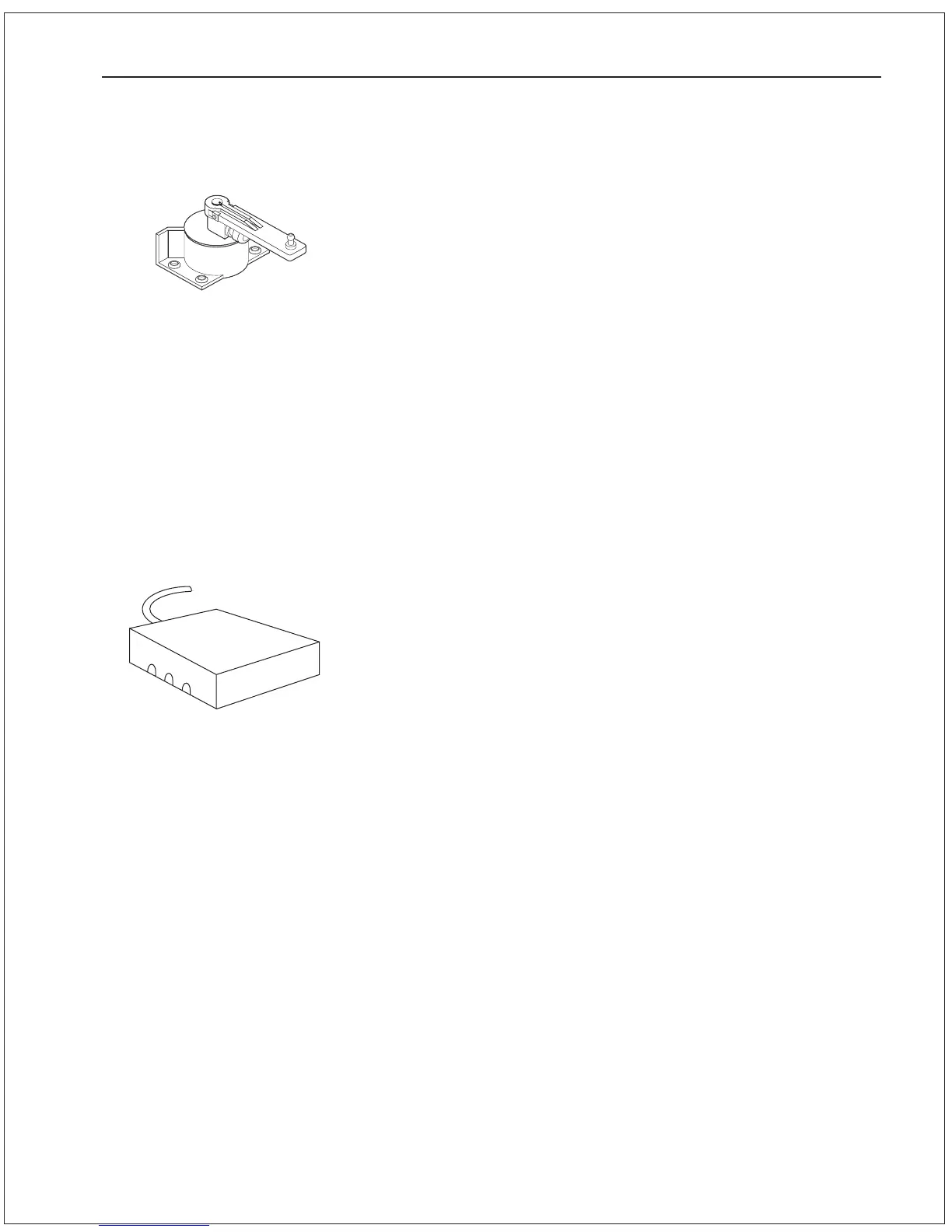

Distribution Box
Part # 81448
Medium Duty Rudder Follower
Part # 81868
Rudder Follower
The 1101 Autopilot is supplied with a ComNav Medium Duty Rudder
Follower.
The Rudder Follower is used to transmit the position of the vessels
rudder to the SPU. It should be connected to whichever part of the
steering system the Autopilot controls. Normally, this is the vessels
rudder, however, if the vessel has 2-stage steering where the
Autopilot drives a control or ser vo ram, the Rudder Follower should
be mounted to the servo ram rather than the rudder.
Some 1101 Installations may use a ComNav Linear Feedback (Part
# 81957) or a Heavy Duty Rudder Follower (Part # 83634). These
units come with installation instructions.
Distribution Box
The Distribution Box provides a neat and tidy way to wire the SPU to
the power supply, output solenoids, navigation computer, Rudder
Angle Indicators (RAls) and other accessories.
