ComNav 1101 Autopilot SYSTEM OVERVIEW 3 - 9

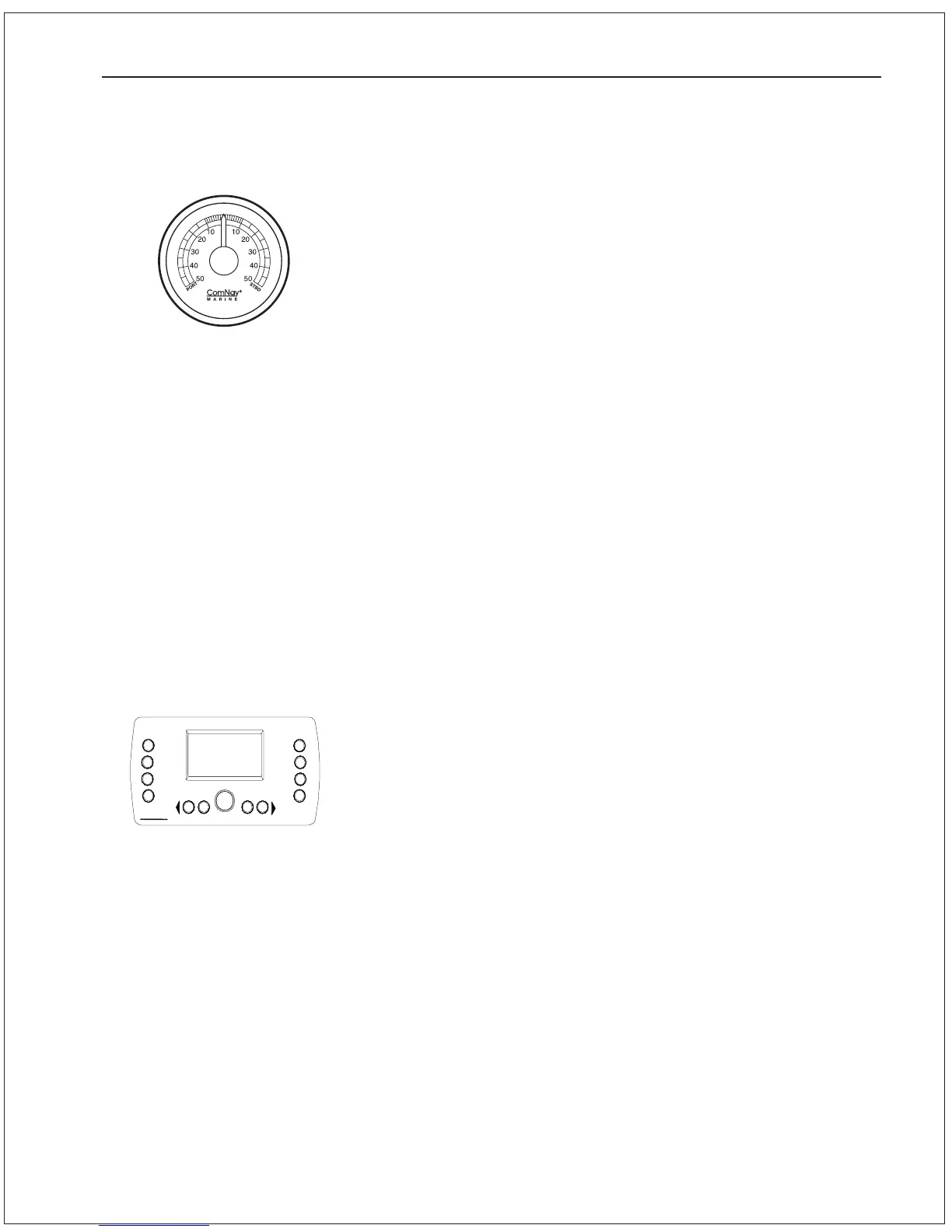

Rudder Angle Indicator (RAI) 3
The ComNav RAI is a brightly backlit 3 inch (76mm) gauge that
displays the actual position of the vessels rudder.
The RAI is flush mounted, encased in high impact resistant
polycarbonate plastic with a water resistant front face, and
requires a lighting voltage supply of 12, 24 or 32VDC.
An optional Bezel Kit (Part # 94338), Wheelhouse Case (Part #
94285) and Watertight Case (Part #81911) are available.
Rudder Angle Indicator
Part # 94249
Secondary Control Heads
Means are provided for the 1101 Autopilot to accept an Auxiliary
Station. This may be either a second 1101 Control Head functioning
as a remote unit, or a ComNav Handheld Remote. By adding an
optional Remote Expander, the Autopilot can support up to 4
Handheld Remotes, or three 1101 Auxiliar y Stations. Combinations
of Handheld Remotes and 1101 Control Heads are possible.
Auxiliary Station
The 1101 Auxiliary Station is identical to the 1101 Control Head ex-
cept that its cable is plugged into the auxiliary connector on the SPU.
This reconfigures the Unit as an Auxiliary Station. It has all of the
functions of a Control Head except that it cannot turn the system
power on or off and therefore it cannot be used to do a full reset or
initiate a Dockside Setup.
The Auxiliary Station comes as a kit (Part # 90643).
ComNav
1101 Autopilot
YA W
TURN
RA TE
CNTR
RUDD ER
RUDD ER
DO DG E SPE ED T URN
NA V
AUTOPILOT
POWER STEER
STBY/ OFF
DO DG E
359°
Compass Heading
STANDBY SLOW
1101 Auxiliary Station
Control Head
Part # 81434
(a component of Part # 90643)
