Compac Master MR40S - Footprint

\\Cilaklfs1\shrdata\Masters\Installation Sheets\Master & Premier\MR40S MR80S Installation
Sheet.doc
Page 4 of 17

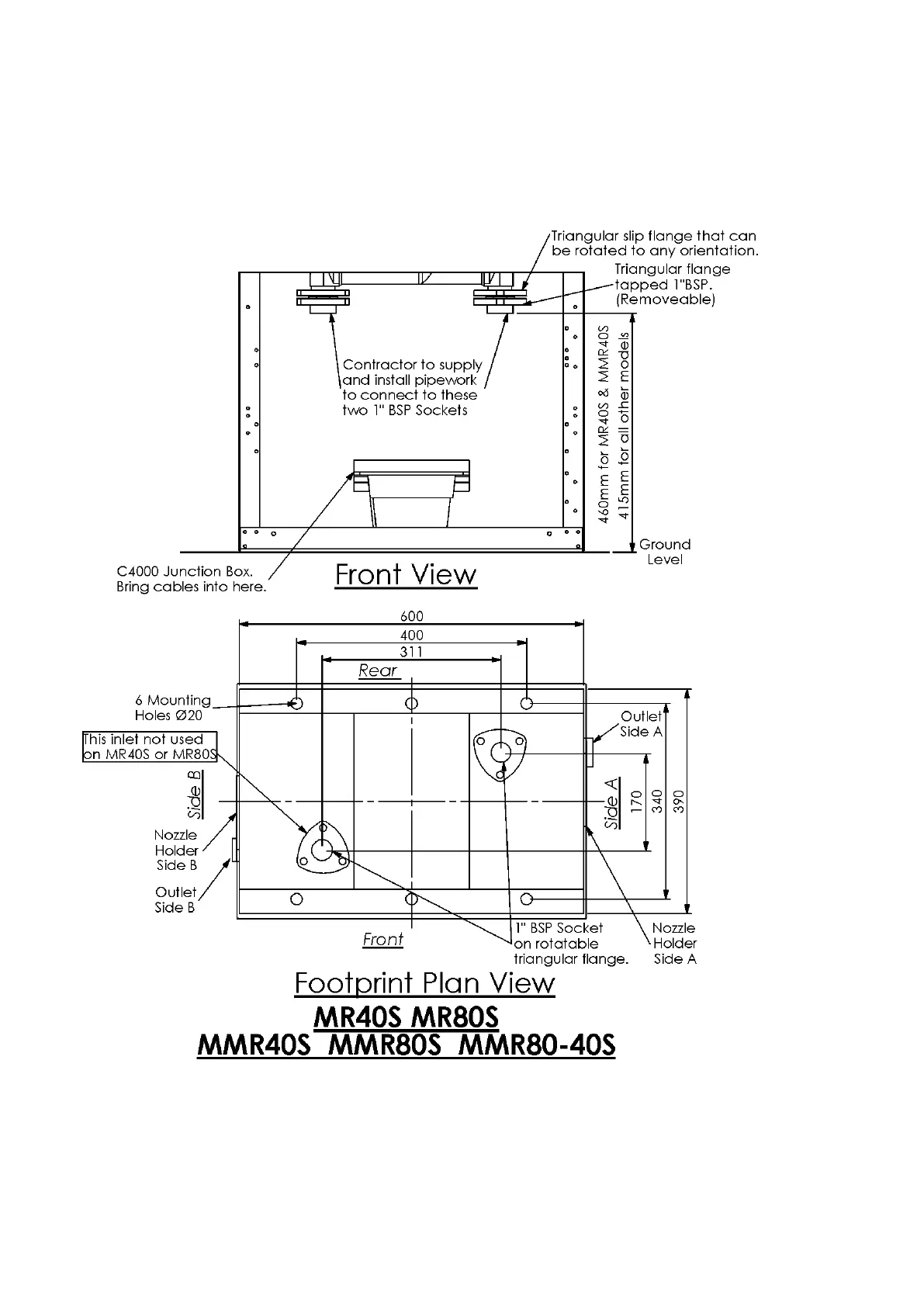

2. Footprint
Outlets are approximately 680mm above the base:
40 l/min ¾” female BSP socket
80 l/min 1” female BSP socket
Note: This drawing does not apply to Aviation dispensers (stainless steel pipework)
