V100-VL400 User Manual – Appendix 1
1. Intake Air Filter
2. First Stage Compression Cylinder LP
3. Pressure Relief Valve
4. Intercooler
5. Auto Drain Trap
6. Second Stage Compression Cylinder HP
7. Pulsation Vessel
8. Pressure Relief Valve
9. Non-return Valve
10. Aftercooler
11. Auto Drain Trap

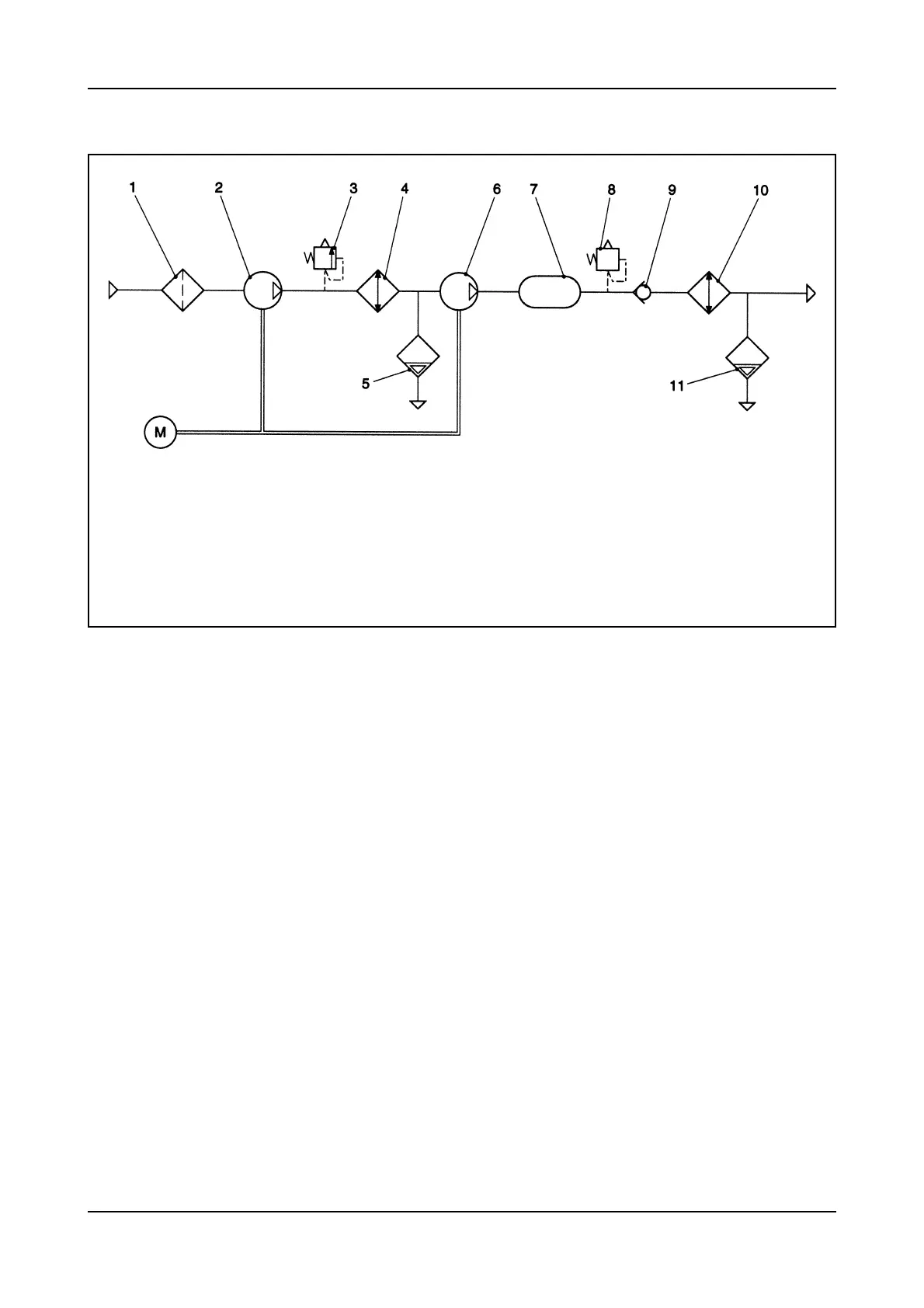

PRESSURE SYSTEM DIAGRAM – 2ND STAGE
