Removable Drives 6-7
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Jennifer Hale Saved by: Jennifer Hale Saved date: 10/07/98 2:03 PM
Part Number: 387792-001 File name: ch06.doc
Removing a Hard Drive from the MultiBay
1. As a precautionary measure, Compaq recommends that you
back up all information on the hard drive.
2. Turn off the computer.
3. Tilt the computer at an angle so you can see the bottom front
of the computer.

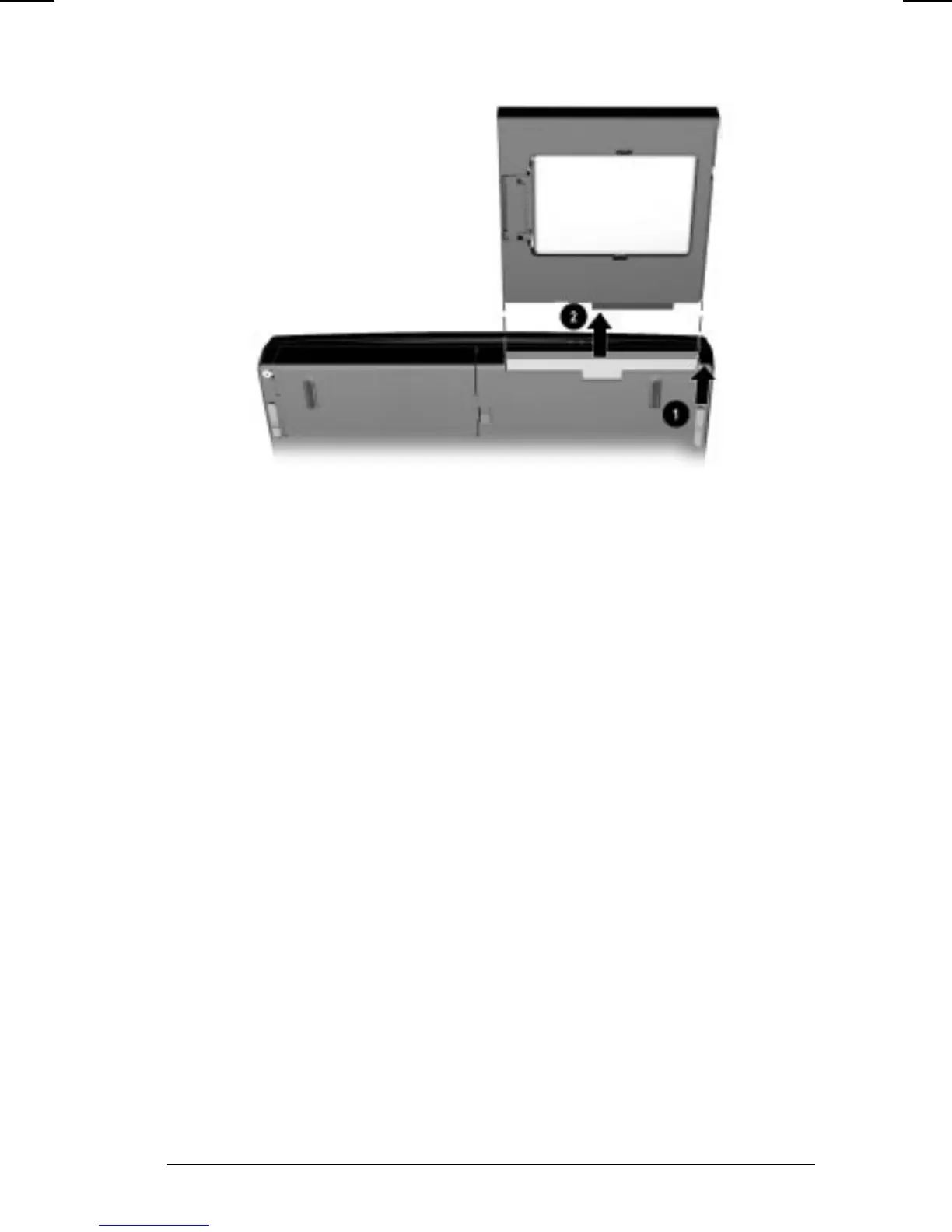

4. Slide the MultiBay release latch toward the front of the
computer
1
to release the Armada 7300/7400 Hard Drive
MultiBay Adapter which accommodates the hard drive.
5. Pull out the Hard Drive MultiBay Adapter and hard drive
2
.
To Next Page
