6-8 Removable Drives
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Jennifer Hale Saved by: Jennifer Hale Saved date: 10/07/98 2:03 PM
Part Number: 387792-001 File name: ch06.doc
Inserting a Hard Drive into the MultiBay
1. Turn off the computer.
2. If the hard drive was previously located in the dedicated hard
drive bay, remove the hard drive from the hard drive tray.
3. Insert the hard drive into the Armada 7300/7400 Hard Drive
MultiBay Adapter with the hard drive label facing down.
4. Position the hard drive carrier against the left side of the
MultiBay

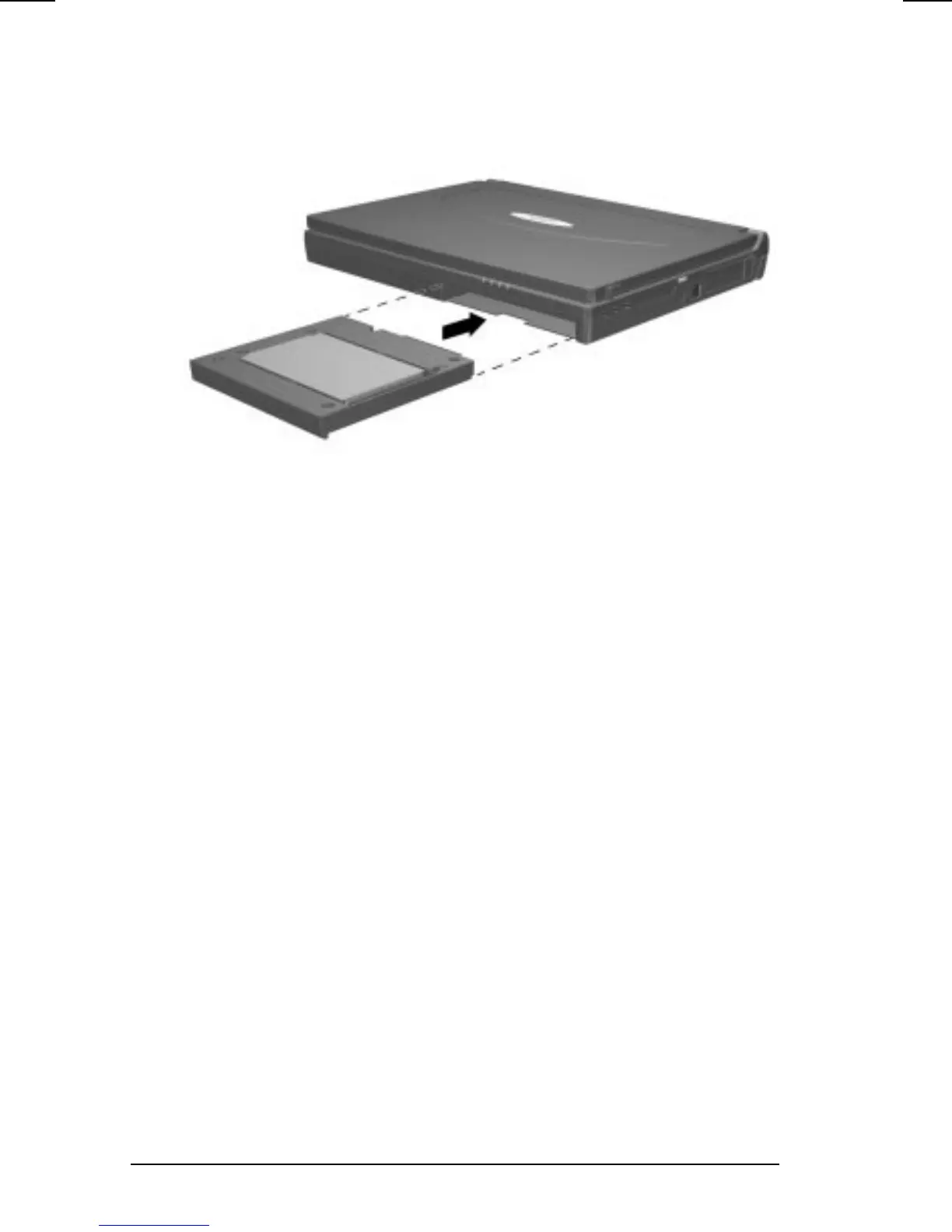

5. Slide the Hard Drive MultiBay Adapter in until it locks into
place.
