CD-ROM and DVD-ROM Drives
Removing the CD-ROM Drive or DVD-ROM Drive from the
MultiBay
1. Remove any discs from the CD-ROM or DVD-ROM drive.
2. Close the drive tray.
3. Turn off the computer if you are running a version of
Windows 95, 98, or NT 4.0 that was not preinstalled by
Compaq.
4. Tilt the computer at an angle so you can see the bottom front
of the computer.

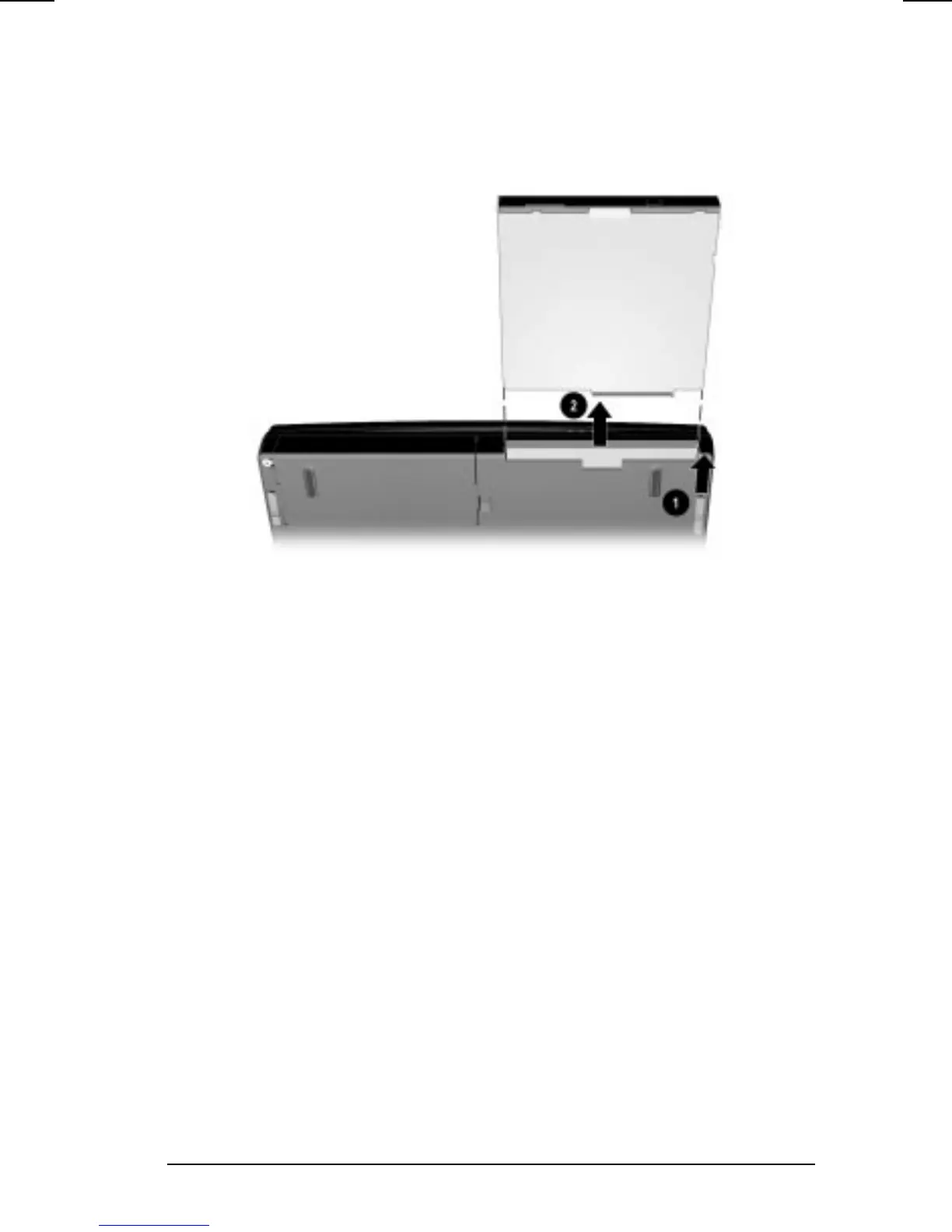

5. Slide the MultiBay release latch toward the front of the
computer 1 to release the drive from the MultiBay.
6. Pull out the drive 2.
