Diskette Drive and SuperDisk LS-120 Drive
Removing the Diskette Drive or SuperDisk LS-120 Drive
from the MultiBay
1. Remove the diskette from the drive.
2. Turn off the computer if you are running a version of
Windows 95, 98, or NT 4.0 that was not preinstalled by
Compaq.
3. Tilt the computer at an angle so you can see the bottom front
of the computer.

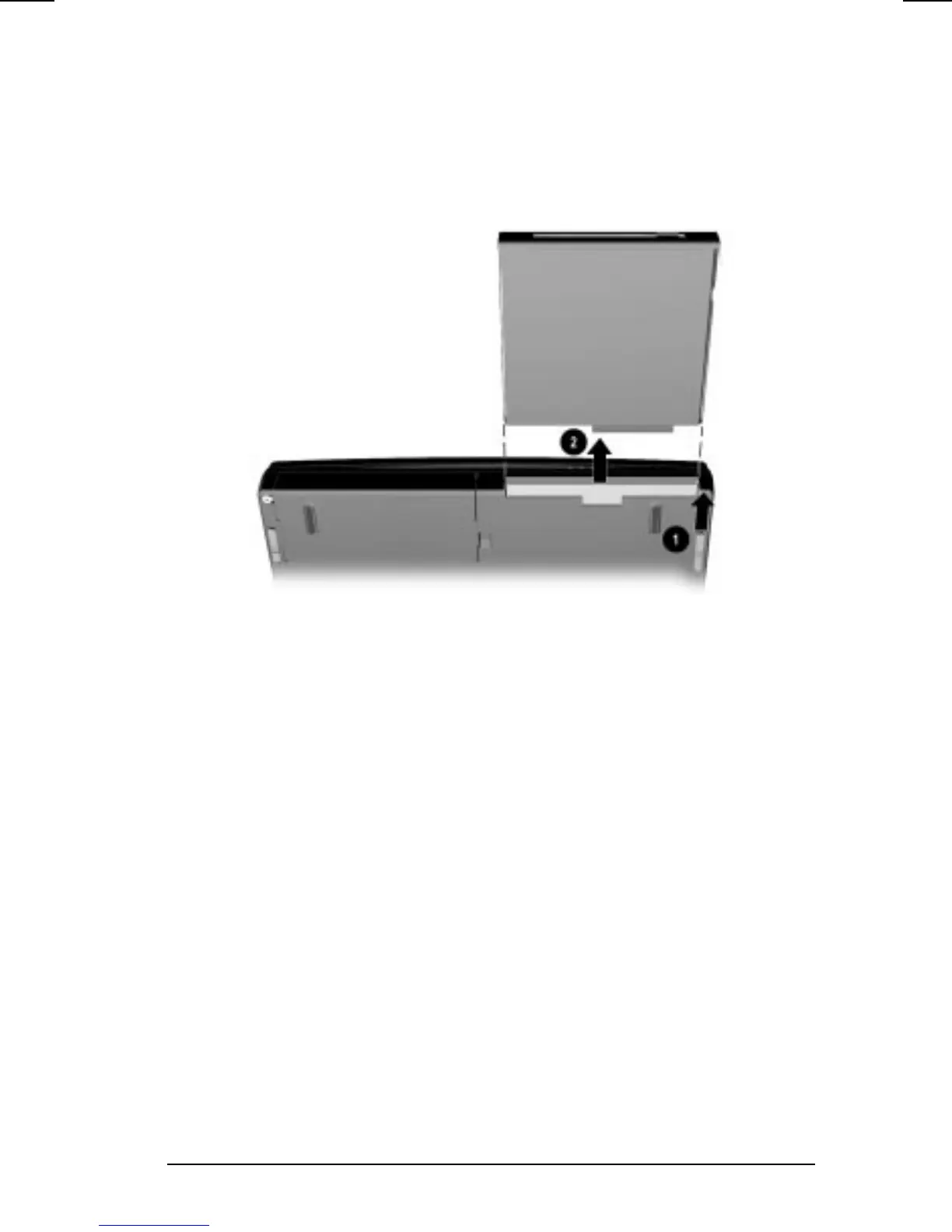

4. Slide the MultiBay release latch toward the front of the
computer 1 to release the drive from the MultiBay.
5. Pull out the drive 2.
