Compaq dc5800 User Manual

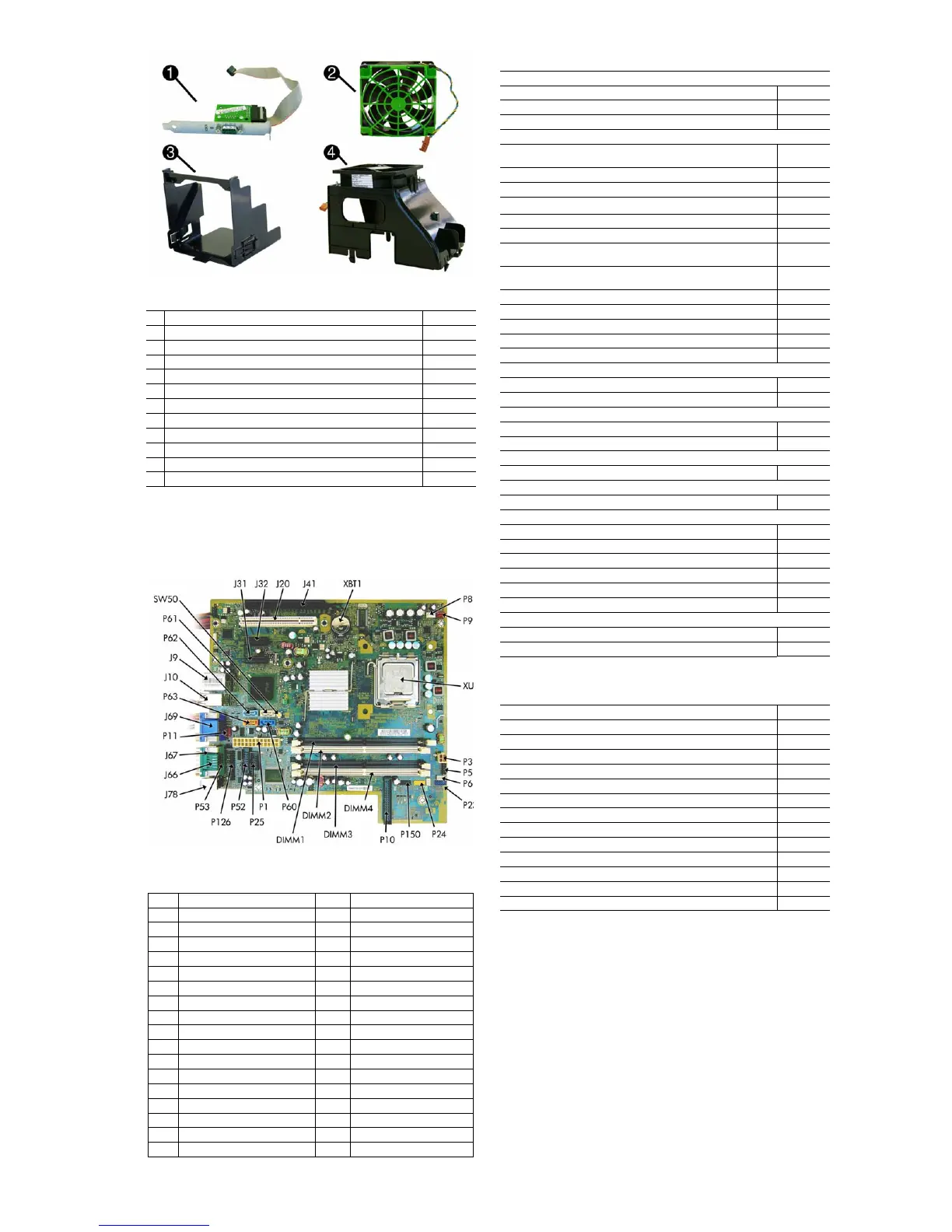

dc5800 Illustrated Parts & Service Map, MT Chassis 481403-001 page 2
System Board
Miscellaneous Parts
1 Second serial port, LP 392414-001
2 Chassis fan 460884-001
3 Fan duct 460882-001
4 Heatsink with alcohol pad and factory-applied thermal grease 460897-001
* Fan duct 463721-001
* System board tray 460881-001
* Printer port, LP 465339-001
* Mouse, PS2, optical 417966-001
* Mouse, optical 390938-001
* Mouse, USB laser 459821-001
* Battery, real-time clock 153099-001
* Internal speaker 392413-001
*Not shown
LP = Low profile
System Board Connectors and Jumpers (position of some untitled
components may vary in location)
J9 RJ-45 over dual USB P5 Power button/LED
J10 Quad stack USB P52 Second serial port
J20 PCI slot 1 P53 Serial port connector
J31 PCIe X1, slot 1 P6 Internal speaker
J32 PCIe X1, slot 2 P60 SATA0
J41 PCIe X16 P61 SATA1
J66 Keyboard P62 SATA4
J67 Mouse P63 SATA5
J69 VGA connector P8 CPU fan
J78 Double stack audio connector P9 System fan
P1 Main power SW50 Clear CMOS
P10 Diskette drive XBT1 Real-time-clock battery
P126 Parallel connector XMM1 DIMM 1
P150 Media reader XMM2 DIMM 2
P23 Front audio XMM3 DIMM 3
P24 Front USB XMM4 DIMM 4
P25 ReadyBoost XU1 Processor
P3 CPU power
Standard and Optional Boards (not illustrated)
Memory modules:
512 MB, PC2-6400, CL6
418952-001
1 GB, PC2-6400, CL6
418951-001
2 GB, PC2-6400, CL6
457624-001
Other boards:
Belkin 802.11a/g WLAN adapter for use in the United States and most of the
world
391866-002
Belkin 802.11a/g WLAN adapter for use in the rest of the world 391866-001
ATI HD X2400, PCIEx16, DMS-59 and TV outputs, 256MB graphics adapter 462477-001
nVidia Quadro NVS 290, 256MB, PCI-E graphics adapter
456137-001
Broadcom NetXtreme GbE PCI-E NIC, FH 430654-001
56K modem, Agere 2006 PCI Hi-Speed, FH 398661-001
nVidia GeForce 8400 GS 256-MB video card with DMS-59 and TV
(S-Video) outputs, FH
461450-001
nVidia GeForce 8400 GS 256-MB video card with DMS-59 and TV
(S-Video) outputs, LP
445743-001
Nvidia Quadro NVS290 256-MB PCIe graphics card 460815-001
DVI, SDVO graphics card, FH 398333-001
HP FireWire IEEE 1394 PCI card, 2 external, 1 internal port, FH 441448-001
Intel Pro 1000 PT Gigabit PCIe NIC, FH 398754-001
ReadyBoost module, 1 GB 462851-001
System boards with thermal grease, alcohol pad, and CPU socket cover:
System board 461536-001
System board, for Russia only 462850-001
Intel Celeron Processors with alcohol pad and thermal grease:
430, 512-KB cache, 1.80 GHz 449165-001
420, 512-KB cache, 1.60 GHz 449164-001
Intel Celeron Dual-Core Processors with alcohol pad and thermal grease:
E1200, 512-KB cache, 1.60 GHz 468589-001
Intel Core 2 Quad Processors with alcohol pad and thermal grease:
Q6600, 8-MB cache, 2.40 GHz 452451-001
Intel Core 2 Duo Processors with alcohol pad and thermal grease:
E8400, 6-MB cache, 3.00 GHz 466169-001
E8200, 6-MB cache, 2.67 GHz 466171-001
E6750, 4-MB cache, 2.66 GHz 450791-001
E6550, 4-MB cache, 2.33 GHz 450694-001
E4600, 2-MB cache, 2.40 GHz 462569-001
E4500, 2-MB cache, 2.20 GHz 449452-001
Intel Pentium Dual-Core 2 Processors with alcohol pad and thermal grease:
E2200, 1-MB cache, 2.20-GHz 465216-01
E2180, 1-MB cache, 2.00-GHz 457656-01
Mass Storage Devices (not illustrated)
Diskette drive with bezel 431452-001
Media card reader, 3.5-inch 407187-001
16X SATA DVD±RW and CD-RW drive with LightScribe 447310-001
16X SATA DVD-ROM drive 419496-001
48X CD-RW/DVD-ROM combo drive 419497-001
500 GB SATA hard drive 457909-001
250 GB, 7200-RPM SATA hard drive, 8-MB cache 449980-001
250 GB, 7200-RPM SATA hard drive, 8-MB cache 440747-001
160 GB, 7200-RPM SATA hard drive, 8-MB cache 449979-001
160 GB, 7200-RPM SATA hard drive, 8-MB cache 440499-001
160 GB, 10000-RPM SATA hard drive, 16-MB cache 439995-001
80 GB, 7200-RPM SATA hard drive, 8-MB cache 449978-001
80 GB, 7200-RPM SATA hard drive, 8-MB cache 440754-001
80 GB, 10000-RPM SATA hard drive, 16-MB cache 439994-001
