Removal and Replacement Procedures
Maintenance and Service Guide 5–15
5.7 Connector Cover
✎
The connector cover is available with silver finish for Presario
2800 models and carbon finish for Evo Notebook N800c, N800v,
and N800w models. This cover is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 285261-001 for
Presario 2800 models, and spare part number 286868-001 for
Evo Notebook N800c, N800v, and N800w models.
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the rear panel facing
forward.
3. Remove the two PM2.0 × 5.5 screws 1 that secure the
connector cover to the base enclosure (Figure 5-12).
4. Open the connector cover.
5. Remove the connector cover from the base enclosure 2.

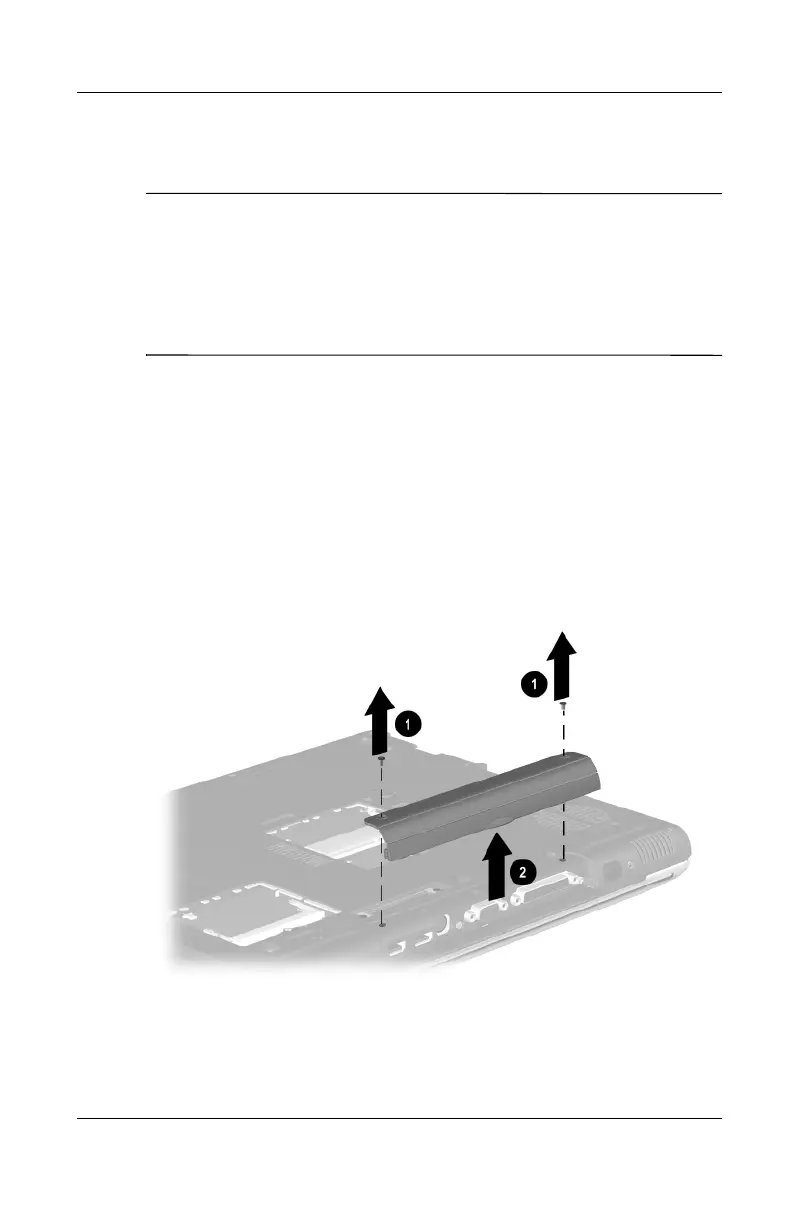

Figure 5-12. Removing the Connector Cover
Reverse the above procedure to install the connector cover.
