Removal and Replacement Procedures
Maintenance and Service Guide 5ā41
2. Use a flat-bladed tool to turn the processor locking screw 1
one-half turn counterclockwise (Figure 5-30).
3. Lift the processor straight up and remove it 2.
ā
Make sure the gold triangle 3 is in the lower right corner when
installing the processor.

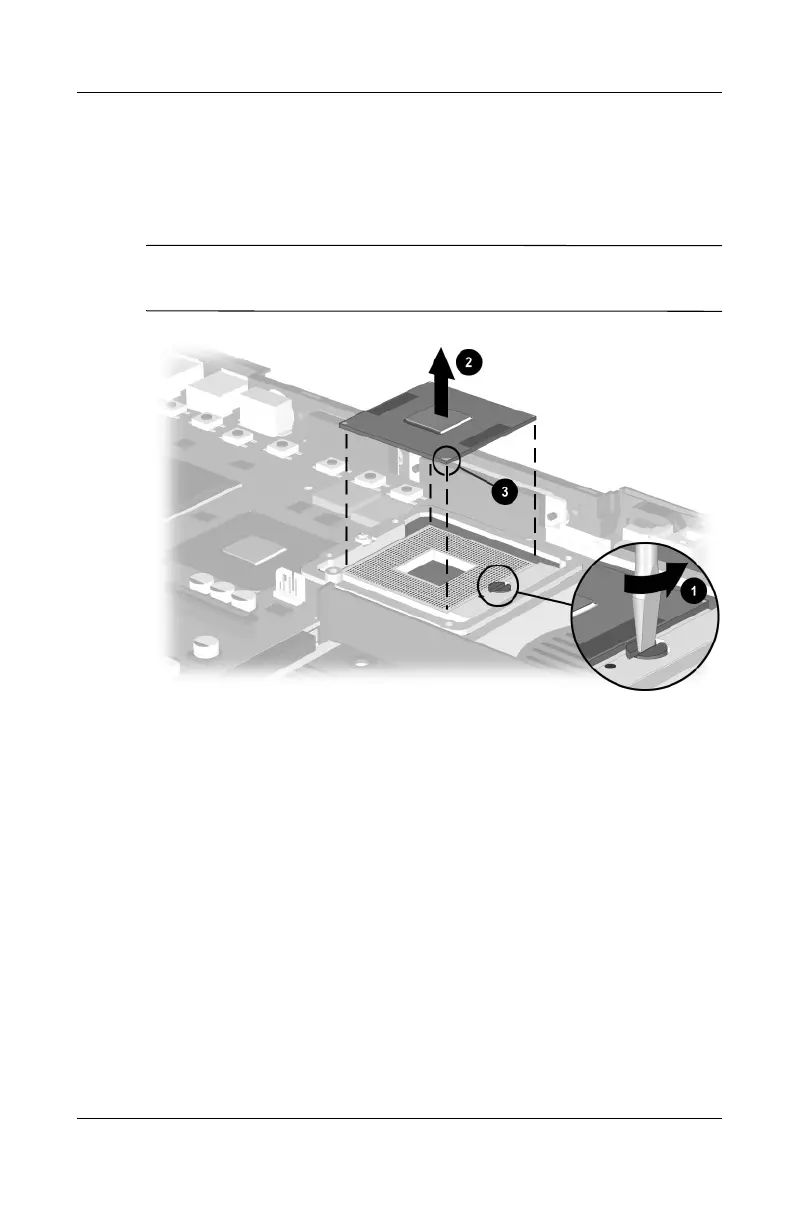

Figure 5-30. Removing the Processor
Reverse the above procedure to install the processor.
