C–18 Maintenance and Service Guide
Screw Listing

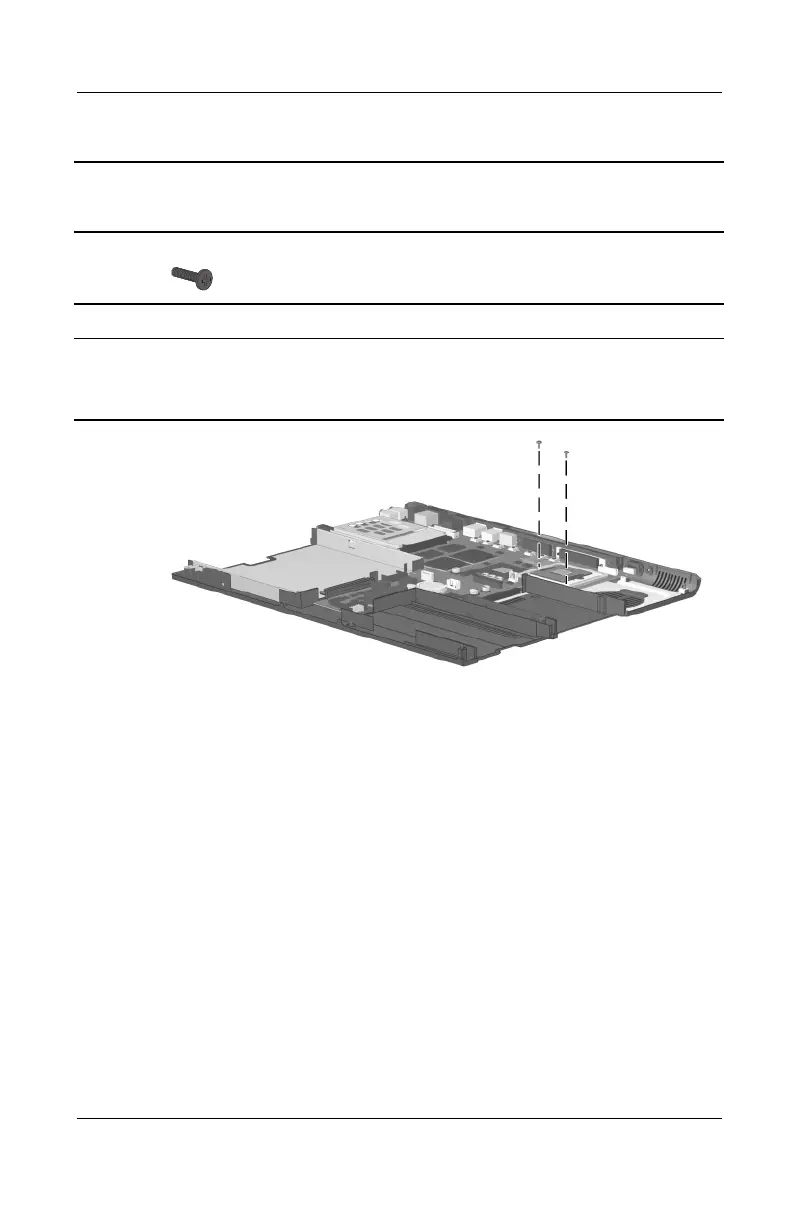

Figure C-17. Phillips M2.0 × 8.0 Screw Locations
Table C-6
Phillips M2.0 × 8.0 Screw
(Continued)
Color Qty. Length Thread
Head
Width
Black 15 8.0 mm 2.0 mm 4.0 mm
Where used:
Two screws that secure the system board to the base enclosure through the
processor support bracket (documented in Section 5.18)
