1–60 Maintenance and Service Guide
Product Description
The external components on the bottom of the notebook are
shown in Figure 1-6 and described in Table 1-10.

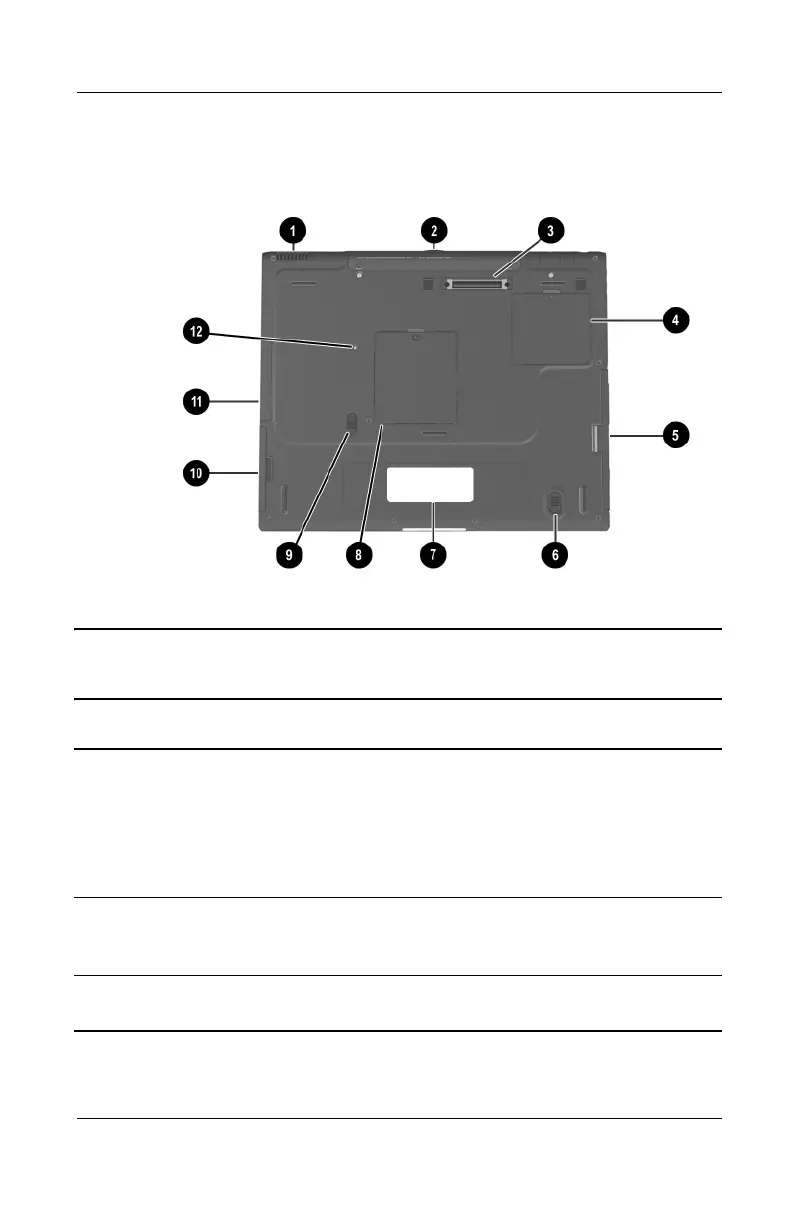

Figure 1-6. Bottom Components
Table 1-10
Bottom Components
Item Component Function
1 Vent Allows airflow to cool internal
components.
Ä
CAUTION: To prevent damage, the notebook shuts down if
an overheating condition occurs. Do not block the cooling
vent. Avoid placing the notebook on a blanket, rug, or other
flexible surface that may cover the vent area.
2 Connector cover Protects the parallel, external
monitor, external keyboard/mouse,
and USB connectors.
3 Docking connector Connects the notebook to an
optional port replicator.
To Next Page
