Pivit Installation Guide

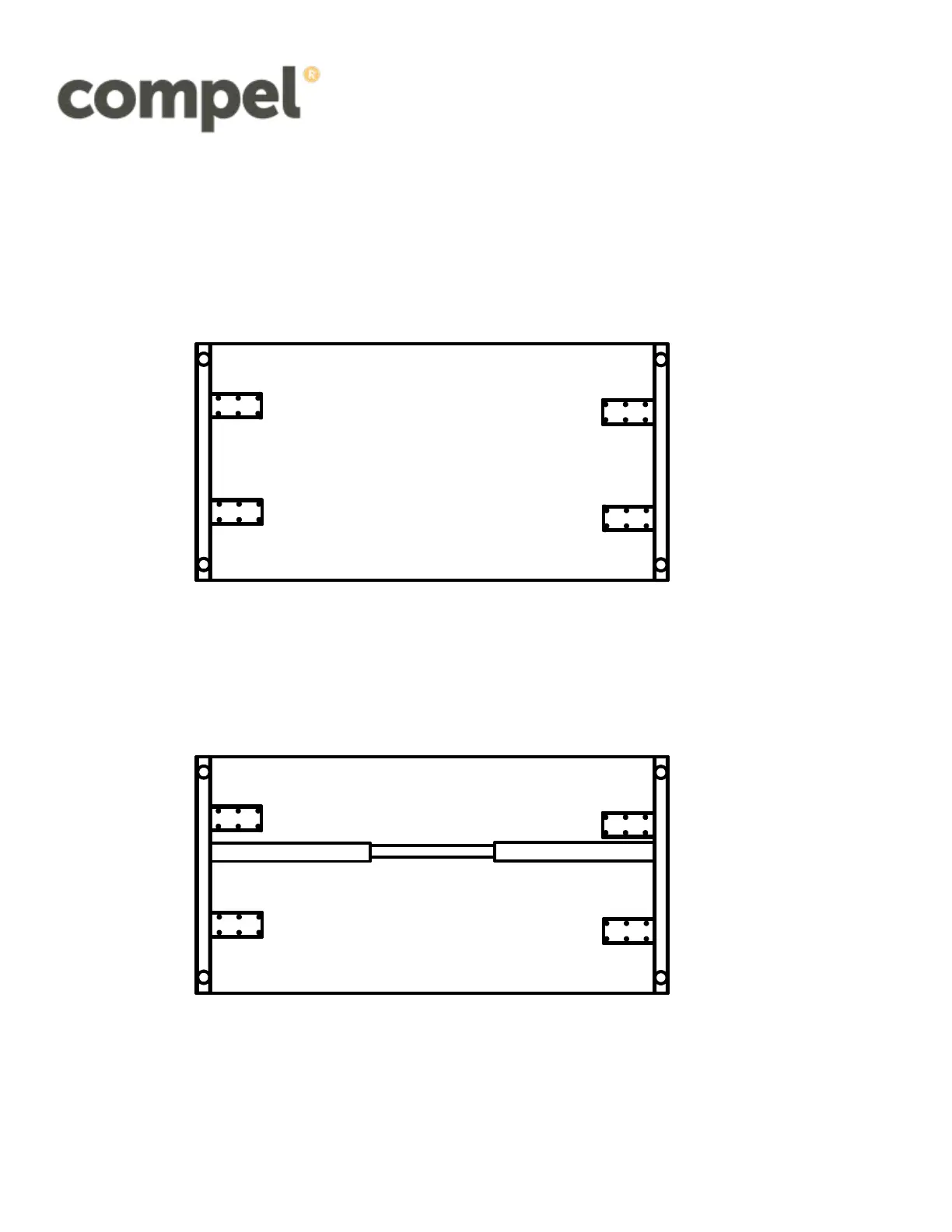

1. Lay your worksurfaces out and place the 30”/36” legs on both
ends. The outside corners of the surface should be ush with
the outside corner of the leg.
2. Attach work surface support bar 1/3rd of the way from the
front of the worksurface. Expand outside portion of each side
of the hat channel to t in the gap between surface and leg.
Tighten down center bolts.
