This document outlines the installation process for a Compel Pivit L-Shape, Open Frame Leg desk. The guide provides clear, step-by-step instructions for assembling the desk, focusing on the arrangement of worksurfaces, legs, and support components.

Function Description:

The Compel Pivit desk system is designed to create a functional and sturdy workspace, specifically an L-shaped configuration with an open frame leg design. The system allows for the assembly of a primary worksurface and a return surface, providing ample space for various office tasks. The modular nature of the components suggests flexibility in arrangement, although this particular guide focuses on a specific L-shape setup. The use of "hat channels" and "mending plates" indicates a robust connection system designed for stability and durability. The open frame leg design likely contributes to a modern aesthetic and potentially offers more legroom or easier cable management compared to solid panel legs.

Important Technical Specifications (Derived from components):

Worksurfaces: The core components that form the desk's top surface. While specific dimensions are not provided for the worksurfaces themselves, the leg options suggest varying depths or lengths.
Legs: Available in 30", 36", and 24" sizes. These dimensions likely refer to the depth or width of the leg frames, influencing the overall depth of the desk or the return. The "Open Frame Leg" design is a key structural and aesthetic feature.
Hat Channels: These are work surface support bars. The installation guide specifies attaching them "1/3rd of the way from the front of the worksurface," indicating their role in providing structural integrity and preventing sagging. They are designed to expand to fit the gap between the surface and the leg, suggesting an adjustable or adaptable design.
Mending Plates: Used to connect the return surface to the main worksurface. These plates ensure a secure and flush connection between the two desk sections, crucial for the stability of the L-shape configuration.
Wood Screws: Standard fasteners used for attaching components, likely for securing worksurfaces to the frame or other connections.
Drill with Phillips head bit: The primary tool required for assembly, indicating that most connections involve screws.
Tape measure: Essential for accurate placement of components, particularly for ensuring the hat channels are positioned correctly and that the return aligns properly.

Usage Features:

The Pivit desk system is designed for ease of assembly, with a clear, sequential process outlined in the guide.

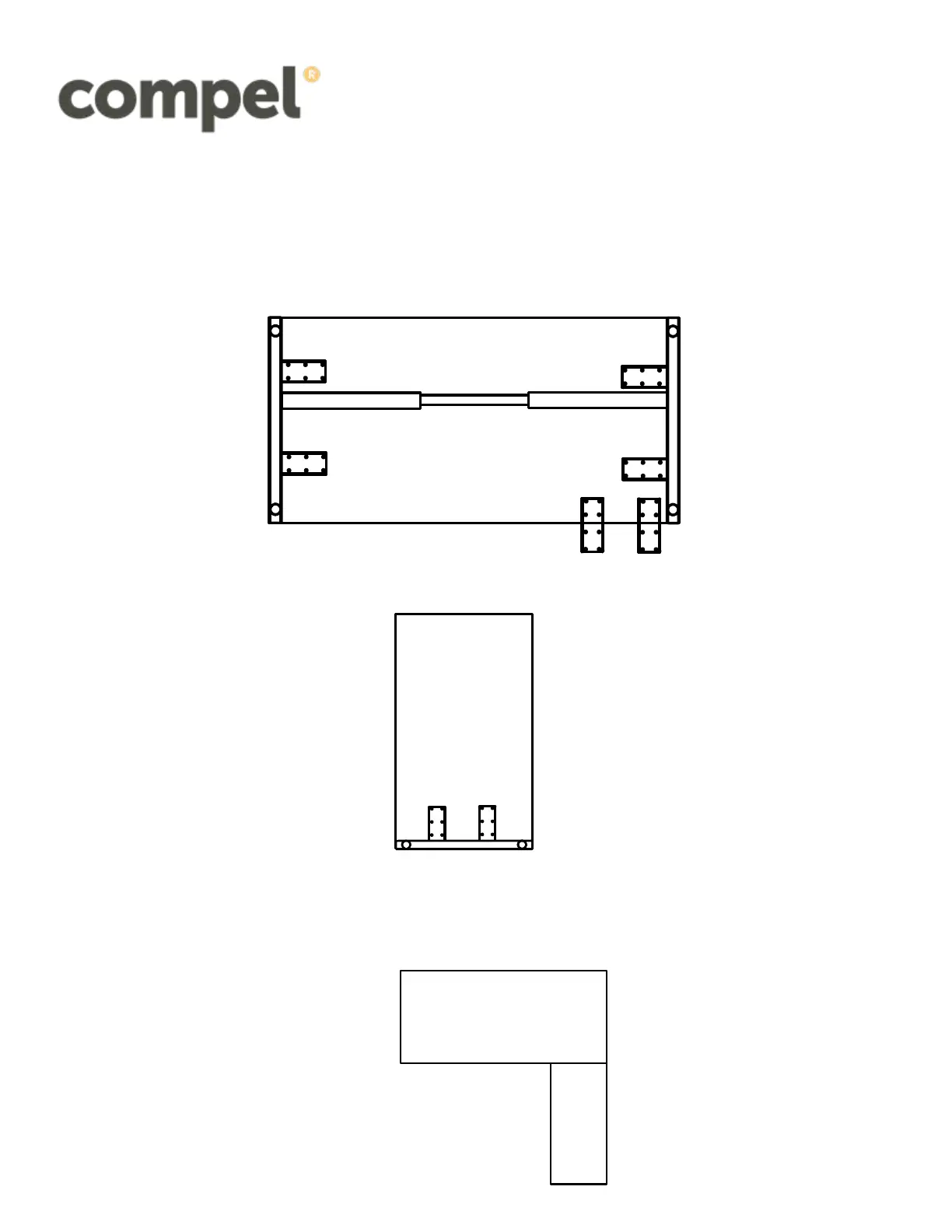

Initial Setup: The first step involves laying out the worksurfaces and positioning the 30"/36" legs. The instruction to ensure the "outside corners of the surface should be flush with the outside corner of the leg" emphasizes precise alignment for a clean and stable build.
Work Surface Support: The hat channels are critical for supporting the worksurface. Their placement "1/3rd of the way from the front" is a specific design choice to optimize support. The ability to "expand outside portion of each side of the hat channel to fit in the gap between surface and leg" highlights an adaptable design feature, simplifying installation and ensuring a snug fit. Tightening "center bolts" suggests a secure, adjustable connection mechanism for these support bars.
Return Surface Connection: Mending plates are used to attach the return surface. The guide instructs to attach these plates to the main surface where the return will lay, indicating a flexible positioning for the return.
Return Leg Attachment: An "Open frame leg" is attached to the end of the return, providing independent support for this section of the desk.
Final Return Assembly: The return is then flipped right-side up, and its free end rests against the mending plates. Crucially, it must "align with outside corner and attached top to open side of mending plates," ensuring a seamless and stable L-shaped configuration. This step completes the structural assembly of the desk.

Maintenance Features:

While the guide primarily focuses on installation, the design choices imply certain maintenance considerations:

Secure Fasteners: The use of wood screws and bolts (for hat channels) suggests that periodic checks of these fasteners might be beneficial to ensure continued stability, especially in a high-traffic or frequently moved environment.
Component Replacement: The modular nature of the desk, with distinct worksurfaces, legs, and support components, implies that individual parts could potentially be replaced if damaged, extending the life of the desk system.
Surface Care: As with any desk, the worksurfaces would require standard cleaning and care to maintain their appearance and integrity. The guide does not specify material types for the worksurfaces, but general office furniture cleaning practices would apply.
Adjustable Components: The expandable hat channels with center bolts suggest that adjustments could be made over time if needed, for example, to re-tighten supports or accommodate minor shifts in the desk's structure.

In summary, the Compel Pivit L-Shape, Open Frame Leg desk is a robust, modular office furniture system designed for straightforward assembly and stable operation. Its key features include adaptable support channels, secure mending plate connections for the L-shape configuration, and an open frame leg design that contributes to both aesthetics and functionality. The installation guide emphasizes precision and sequential assembly to ensure a durable and well-aligned final product.

Compel Pivit - Attaching Mending Plates; Connecting Return Leg; Securing Return
