Competition Electronics DH16A-83DT - Wiring Diagrams; Un-networked Wiring; Networked Wiring

-23-
Red-power DC input： +12V - +24V
Black-power AC input：~ 12V - 24V
Brown-door status detecting
Orange-unlocking button 1
Yellow-unlocking button 2
Green-GND
Blue-NO 2
Purple-COM 2
Gray-NC 2
White-NO 1
Pink-COM 1
Aqua-NC 1
Shielded ground
Pay attention for
right polar connection
Door
bell
Shielded ground

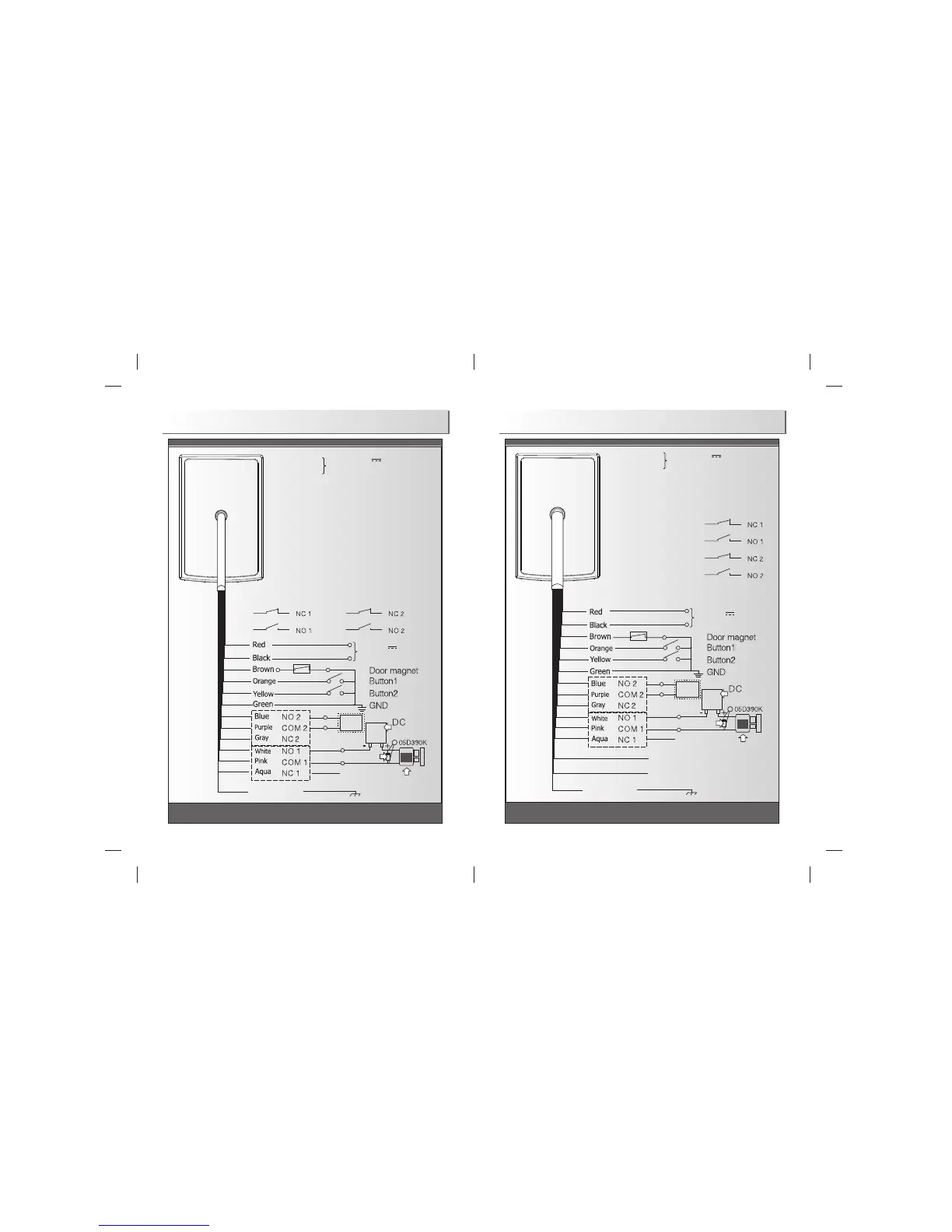

Wiring Diagram
(Un-networked)
Door lock
DC input： +12V - +24V
AC input：~ 12V - 24V
Applicable for: DH16A-10/20/30/50/60/12/32/52/62/82/83DT Applicable for: DH16A-10/20/30/50/60/12/32/52/62/82/83DTQ
Black+White 485-
-24-
Shielded ground
Red-power DC input： +12V - +24V
Black-power AC input：~ 12V - 24V
Brown-door status detecting
Orange-unlocking button 1
Yellow-unlocking button 2
Green-GND
Blue-NO 2
Purple-COM 2
Gray-NC 2
White-NO 1
Pink-COM 1
Aqua-NC 1
Black+white-485-
Brown+white-485+
Shielded ground
DC input： +12V - +24V
AC input：~ 12V - 24V
Pay attention for
right polar connection
Brown+White 485+
Door
bell
Door lock
Wiring Diagram
(Networked)
