Competition Electronics DH16A-83DT - DH16 A-32;52 DT Series

-7-
DH16A-32DTQ
DH16A-32DT
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 5cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders
-8-
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 155*44*10mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
1. With internal EM reader.
2. Frequency: 125KHz.
3. Effective distance: 5cm.
4. ZONE 1: up to 1000 passwords & card holders.
ZONE 2: up to 10 passwords OR card holders..
5. Card access, code access and combined access.
6. Digital keypad operation.
7. Built-in pickproof function.
8. Watchdog timer, powerful reboot and self-recovery watchdog can connect with
the external unlock button.
9. Dual relay outputs.
10. Unlock output delay time: 0~99s.
11. IP rating: 65.
12. Dimension: 152*45*25mm.
13. Dual relay outputs for door opening, door status detecting, open door by button.
The function of door status detecting is for ZONE 1 only.
DH16A-52DT
DH16A-52DTQ
Working conditions:
o o
temperature: -20 C ~ +50 C
RH: ≤95%
Current and voltage requirements:
DC input: +12V - +24V
AC input: ~ 12V - 24V
standby current: ≤80mA
working current: ≤110mA
Applicable card mode:
EM ID card(Default)
T5557/T5567 card(Setting required)
Effective distance: 5cm
Capacity:
ZONE 1: up to 1000 passwords & card holders
ZONE 2: up to 10 passwords OR card holders

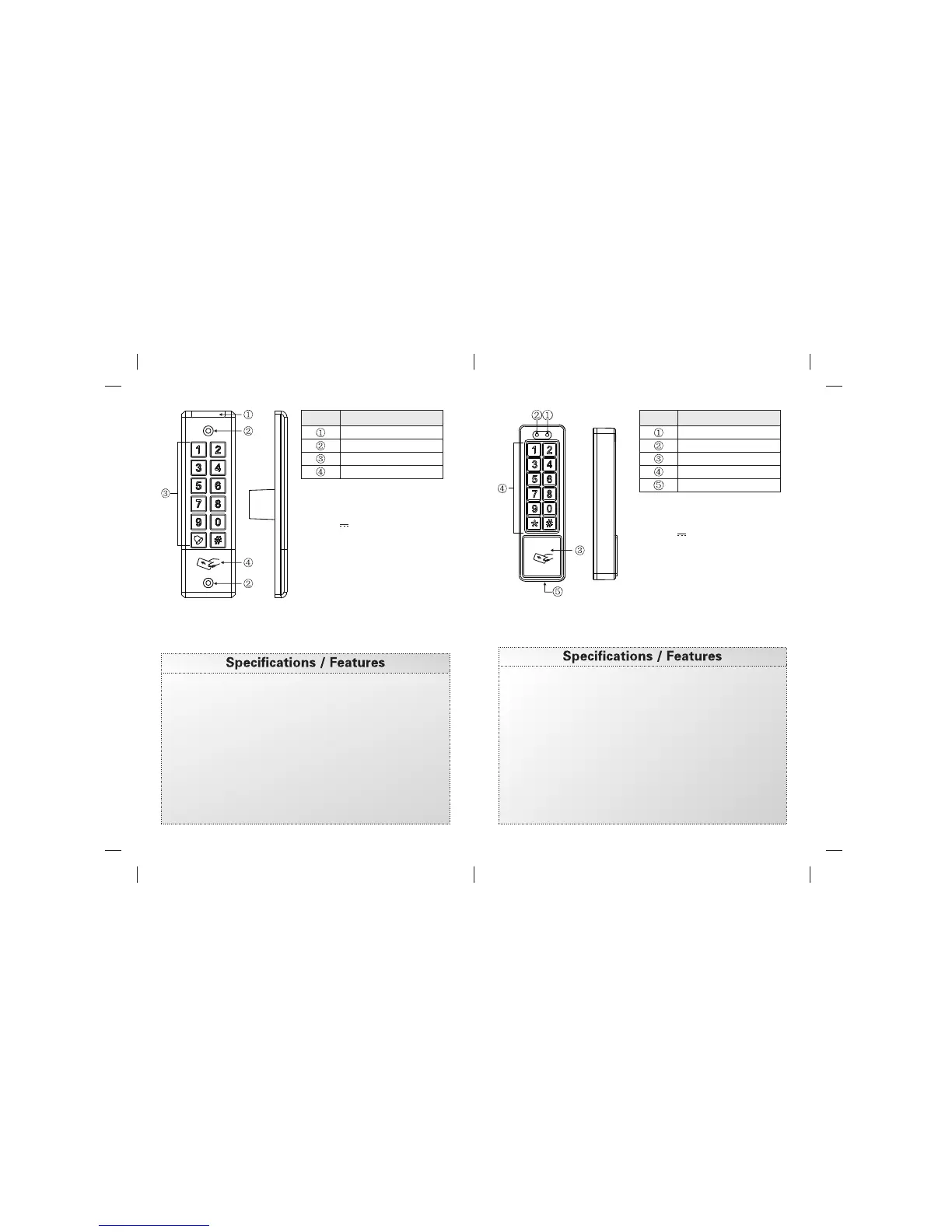

Mode indicator
Case screw
Touch keypads
Antenna
NO. Description
Mode indicator
Door indicator
Antenna
Matrix keypads
Case screw
NO. Description
