Component Hardware Encore Intelli-Flo EZ-Electronic - KE25, KE28 Series, and Mixing Valve Installation

800-526-3694 • www.encoreplumbing.com
800-526-3694 • www.encoreplumbing.com
(A) KE19-1000 Series
MOUNTING HARDWARE
ELBOW
SENSOR
CABLE
SUPPLY
HOSES
(B) KE19-4000 Series
SPOUT
FAUCET
BODY
CONNECTOR
HOSE
MIXER
VALVE
SOLENOID
(C) KE21-7000 Series
(D) KE16 Series
(E) KE25 Series
WALL
BRACKET
DRAIN
AVOID CONTACT WITH WATER DURING ASSEMBLY
TO MINIMIZE CHANCE OF WATER DAMAGE.
1.
INSTALL SPOUT ONTO FAUCET BODY (A AND B). 2.
PREPARE SINK FOR ANTI-ROTATION PIN (OPTIONAL). 3.
MARK HOLE LOCATION AS USING SUPPLIED
TEMPLATE AND DRILL APPROPRIATELY SIZED HOLE
•
INSTALL ANTI-ROTATION PIN ONTO FAUCET BODY •
PASS SENSOR CABLE THROUGH MOUNTING HOLE
AND MOUNT FAUCET ONTO SINK WITH PROVIDED
MOUNTING HARDWARE.
4.
FOR WALL MOUNT FAUCET DESIGNS (A), CONNECT
90 DEGREE ELBOW AT THE FAUCET SHANK.
5.
CONNECT CONNECTOR HOSE TO THE ELBOW (A)
OR DIRECTLY TO FAUCET SHANK (B AND C).
6.
MOUNT BELOW DECK CONTROL BOX AT APPROPRIATE
DISTANCE BELOW SINK (SO SENSOR CABLE CAN
CONNECT)
7.
USING MINIMUMTWO MOUNTING SCREWS (NOT PROVIDED)
IN OPPOSITE CORNERS.
CONNECT OTHER END OF CONNECTOR HOSE TO
THE SOLENOID.
8.
CONNECT SUPPLY HOSES TO THE MIXING VALVE. 9.
REMOVE BLACK CAP FROM CONTROL BOX CABLE AND
CONNECT CABLE TO THE SENSOR.
10.
CONNECT POWER SUPPLY (IF PROVIDED) TO THE
WALL OUTLET.
11.
FAUCET WILL START WITHIN A COUPLE OF SECONDS. 12.
AVOID CONTACT WITH WATER DURING ASSEMBLY TO MINIMIZE
CHANCE OF WATER DAMAGE.
1.
PUNCH HOLE AS PER SUPPLIED TEMPLATE. 2.
PASS SENSOR CABLE THROUGH MOUNTING HOLE AND MOUNT
FAUCET ON THE SINK WITH PROVIDED
MOUNTING HARDWARE.
3.
CONNECT 90 DEGREE ELBOW AT THE FAUCET SHANK. 4.
CONNECT CONNECTOR HOSE TO THE ELBOW. 5.
MOUNT BELOW DECK CONTROL BOX AT APPROPRIATE DISTANCE
BELOW SINK (SO SENSOR CABLE CAN
CONNECT) USING MINIMUM
6.
TWO MOUNTING SCREWS (NOT PROVIDED) IN OPPOSITE CORNERS.
CONNECT OTHER END OF CONNECTOR HOSE TO THE SOLENOID. 7.
CONNECT SUPPLY HOSES TO THE MIXING VALVE. 8.
REMOVE BLACK CAP FROM CONTROL BOX CABLE AND CONNECT
CABLE TO THE SENSOR.
9.
CONENCT POWER SUPPLY (IF PROVIDED) TO THE WALL OUTLET. 10.
FAUCET SHOULD START WITHIN COUPLE OF SECONDS. 11.
AVOID CONTACT WITH WATER DURING ASSEMBLY
TO MINIMIZE
INSTALL DRAIN ONTO SINK.
CHANCE OF WATER DAMAGE.
1.
2.
MOUNT BRACKET (MOUNTING BRACKET) ONTO
WALL. CONNECT CONNECTOR HOSE TO THE
90 DEGREE
ELBOW BEHIND SINK.
3.
MOUNT SINK ONTO THE WALL BRACKET. 4.
MOUNT BELOW DECK CONTROL BOX AT APPROPRIATE
DISTANCE BELOW SINK (SO SENSOR CABLE CAN
CONNECT)
USING MINIMUM TWO MOUNTING SCREWS
(NOT PROVIDED) IN OPPOSITE CORNERS.
5.
CONNECT OTHER END OF CONNECTOR HOSE TO
THE SOLENOID.
6.
CONNECT SUPPLY HOSES TO THE MIXING VALVE. 7.
REMOVE BLACK CAP FROM CONTROL BOX CABLE
AND CONNECT CABLE TO THE SENSOR.
8.
CONNECT POWER SUPPLY (IF PROVIDED) TO THE
WALL OUTLET.
9.
FAUCET WILL START WITHIN A COUPLE OF SECONDS. 10.

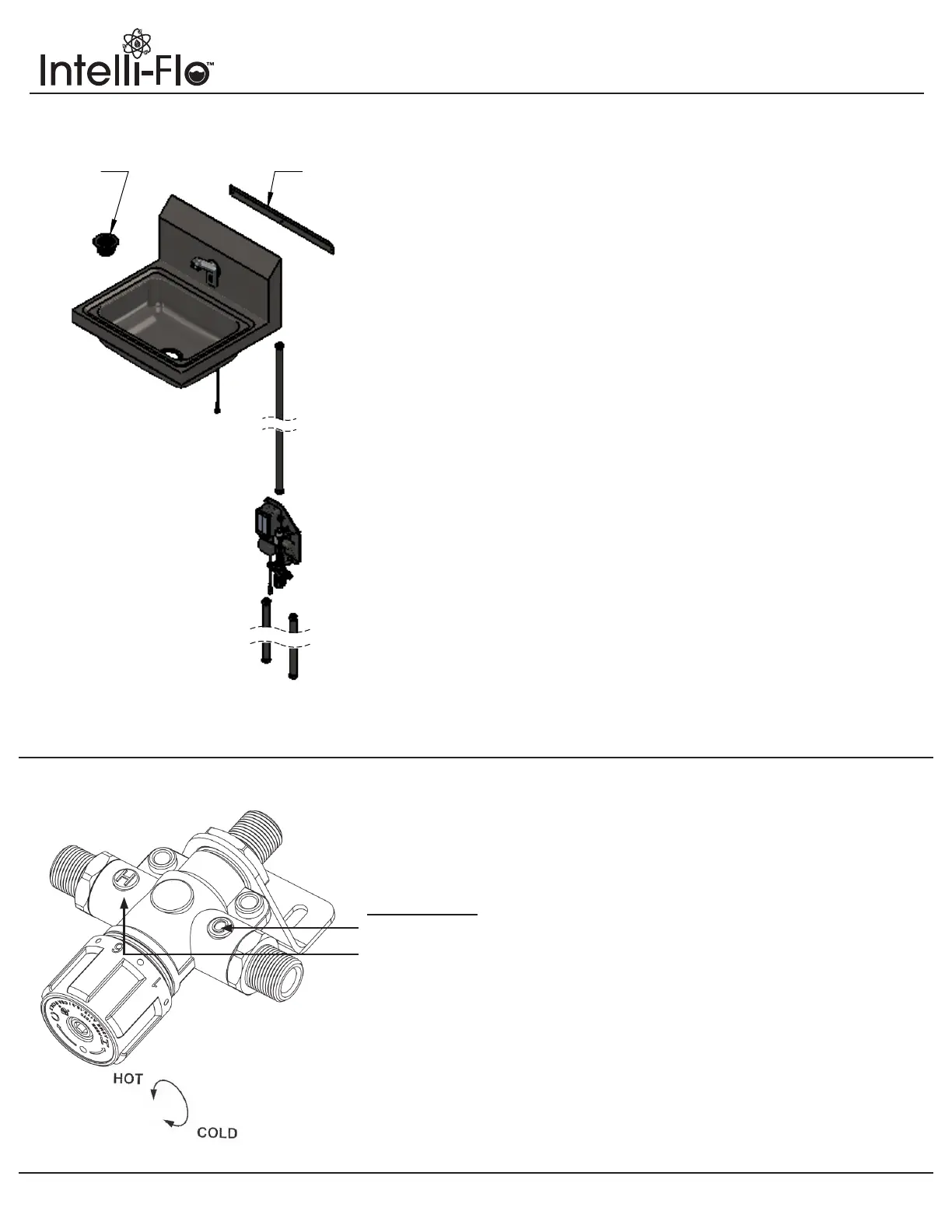

KE19 / KE21 SERIES INSTALLATION
KE16 SERIES INSTALLATION
KE25 / KE28 SERIES INSTALLATION
BELOW DECK
CONTROL BOX
CONTROL
BOX CABLE
INSTALLATION INSTRUCTIONS
IMPORTANT:
When adjusting temperature, turn dial toward ‘C’ until it stops.
Then slowly begin turning toward ’H’ until desired temperature is reached.
NOTE: Dial will continue to turn past highest number.
MIXING VALVE INSTALLATION
KE25 / KE28 SERIES INSTALLATION
1. AVOID CONTACT WITH WATER DURING ASSEMBLY TO
MINIMIZE CHANCE OF WATER DAMAGE.
2. INSTALL DRAIN ONTO SINK.
3. MOUNT BRACKET (WALL BRACKET) ONTO WALL.
CONNECT CONNECTOR HOSE TO THE 90 DEGREE ELBOW
BEHIND SINK.
4. MOUNT SINK ONTO THE WALL BRACKET.
5. MOUNT BELOW DECK CONTROL BOX AT APPROPRIATE
DISTANCE BELOW SINK (SO SENSOR CABLE CAN CONNECT)
USING MINIMUM TWO MOUNTING SCREWS (NOT
PROVIDED) IN OPPOSITE CORNERS.
6. CONNECT OTHER END OF CONNECTOR HOSE TO THE
SOLENOID.
7. CONNECT SUPPLY HOSES TO THE MIXING VALVE.
8. REMOVE BLACK CAP FROM CONTROL BOX CABLE AND
CONNECT CABLE TO THE SENSOR.
9. CONNECT POWER SUPPLY (IF PROVIDED) TO THE WALL
OUTLET.
10. FAUCET WILL START WITHIN A COUPLE OF SECONDS.
