3. Start up
3.1 Lifting and carrying
All lifting should be carried out using a forklift truck with a carrying
capacity suited to the compressor. Lifting may be carried out with
loading cranes, winches and other machinery, using a crossbeam
with the right length. Local safety guidelines for lifting have to be
observed.
For transport with a forklift truck, use the rigging holes in the frame. The compressor has
slotted rigging holes with width C – g. 3.1.1 Move the compressor carefully.
Model A, mm B, mm C, mm D, mm G, mm
F05 - 07..
100
383 185
92
900
F11..
130 202
F15..
F18..
135 302 1000
F22..

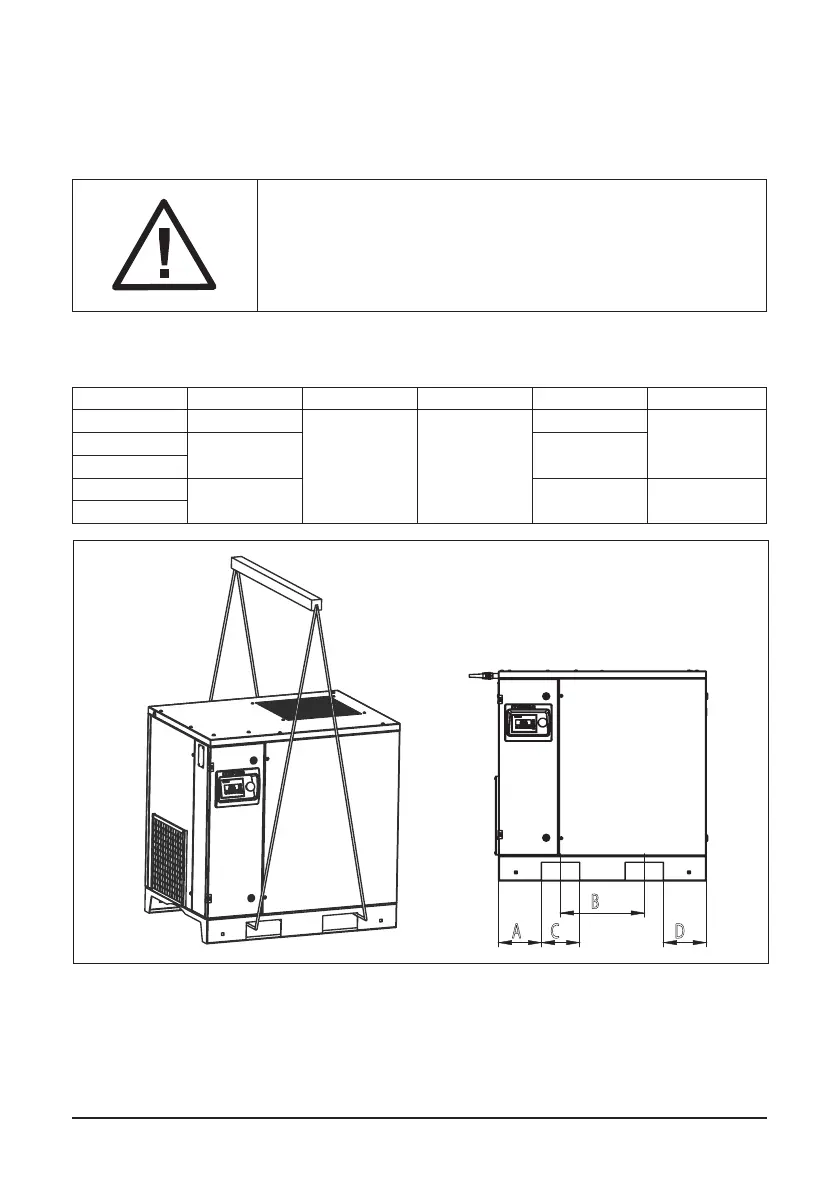

Fig. 3.1 Lifting and carrying F05.. – F22..
A C
B
D
