Page 3

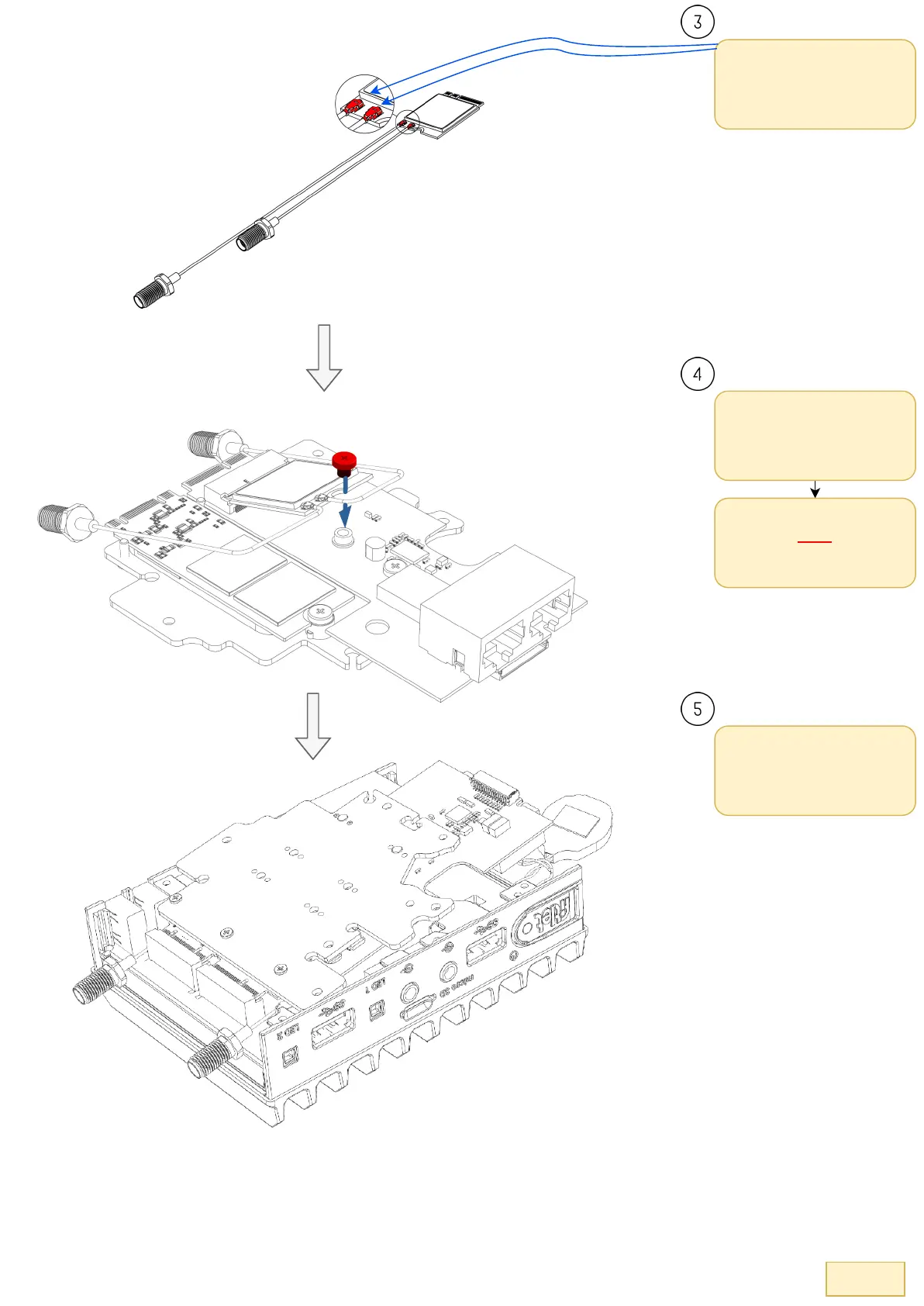

Plug the IPX connectors to the
Wifi module as follows:
Long cable to port #1
Short cable to port #2
Fasten the WiFi module to the
FACET with the Phillips screw
Note:
Use the 3mm M3 Phillips screw
Seat the FACET into the M.2
sockets and route the SMA
antenna cables outside of the
enclosure
