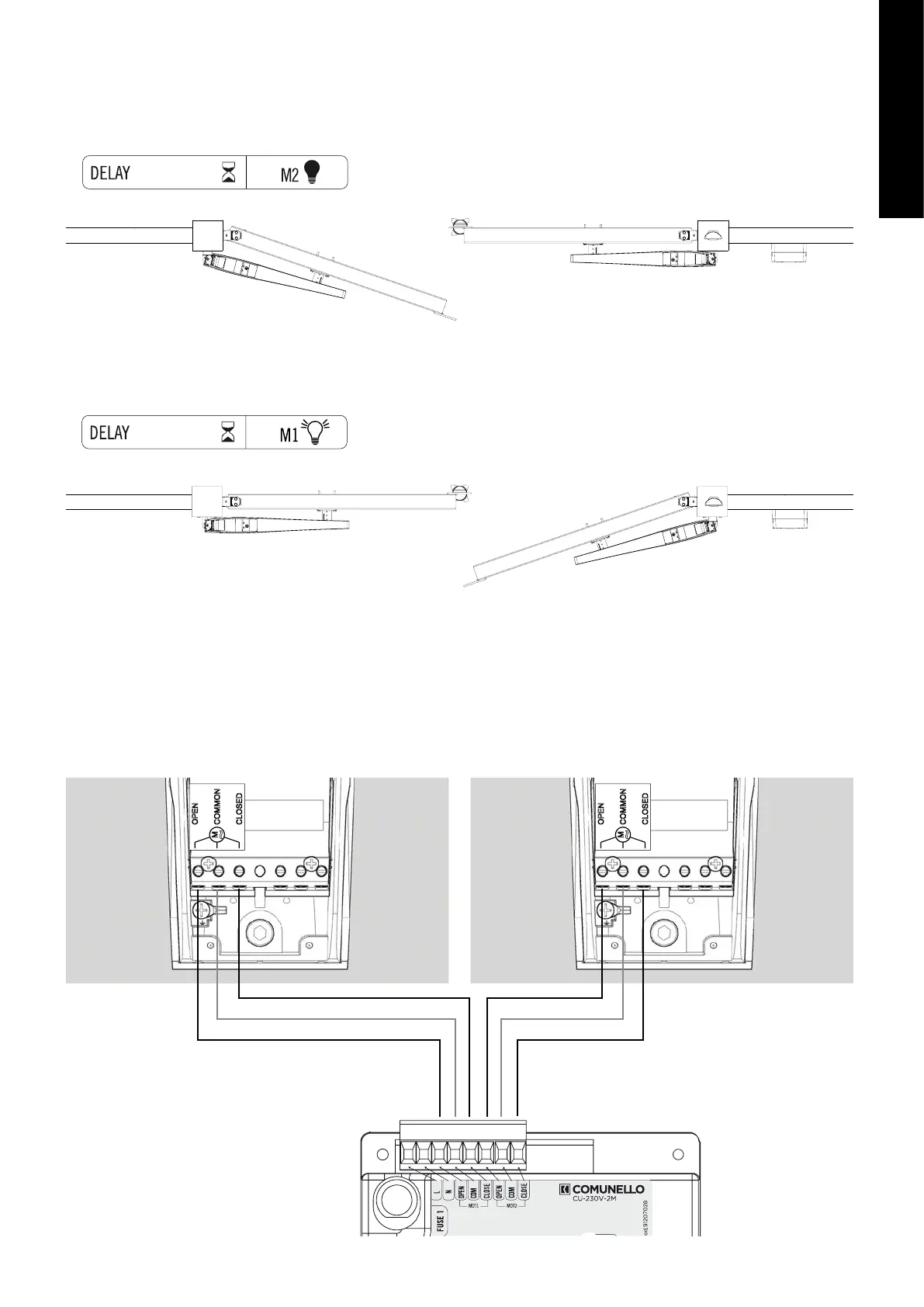

ABACUS - connection diagram of the motors

• DELAY LED OFF = DELAY OF THE MOTOR n.2

Conguration:

• DELAY LED ON = DELAY OF THE MOTOR n.1

OPEN with OP1

COMMON with CM1

CLOSED with CL1

OPEN with OP2

COMMON with CM2

CLOSED with CL2
