Comunello Automation CU-230V-2M - Ram Motor Wiring

6
COMUNELLO ®Copyright 2014 - All right reserved
CN1
F1
L N
OP1 CM1 CL1 OP2 CM2 CL2

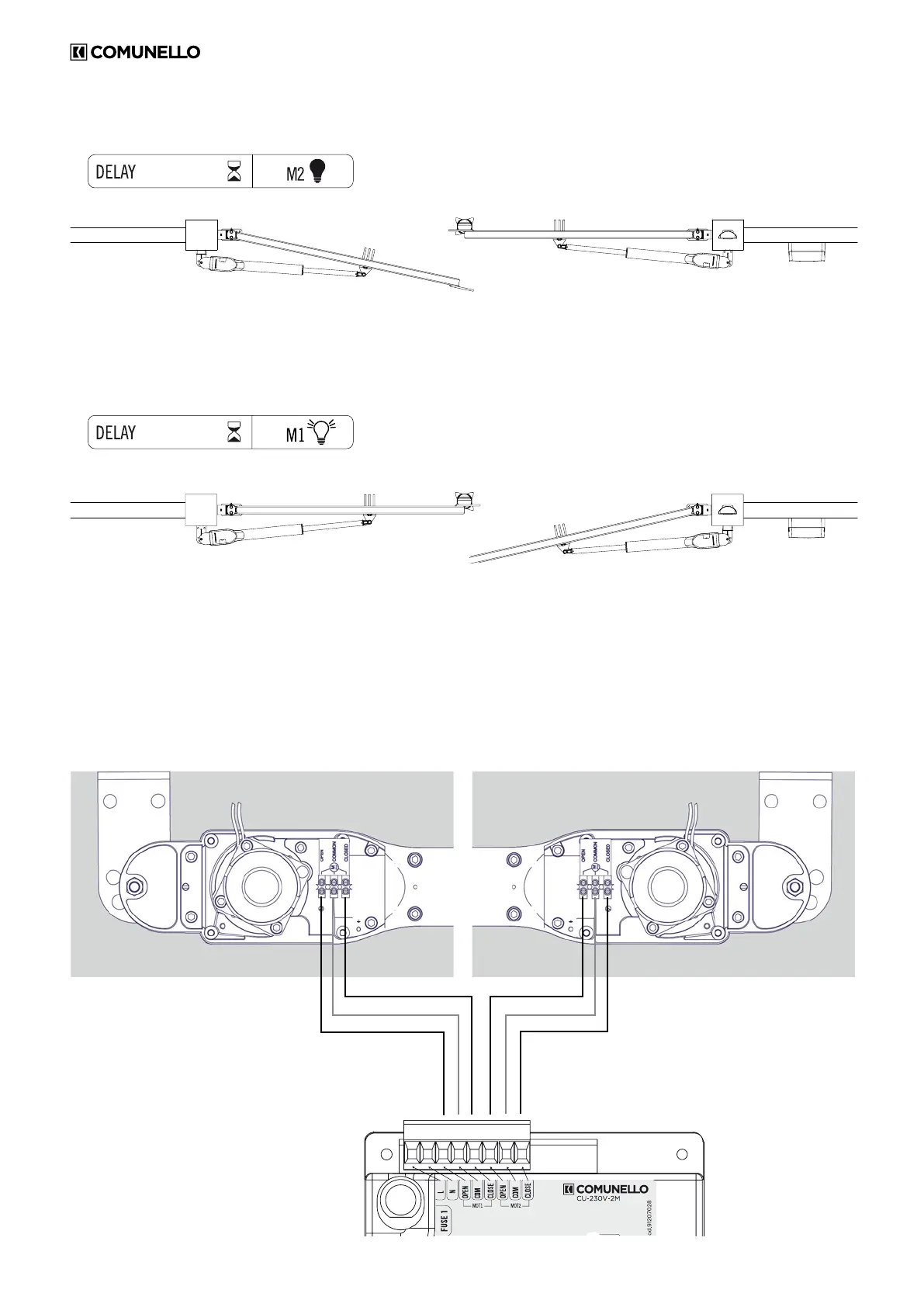

RAM - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
1
1
2
2
Conguration:
• DELAY LED ON = DELAY OF THE MOTOR n.1
OPEN with OP1
COMMON with CM1
CLOSED with CL1
OPEN with OP2
COMMON with CM2
CLOSED with CL2
