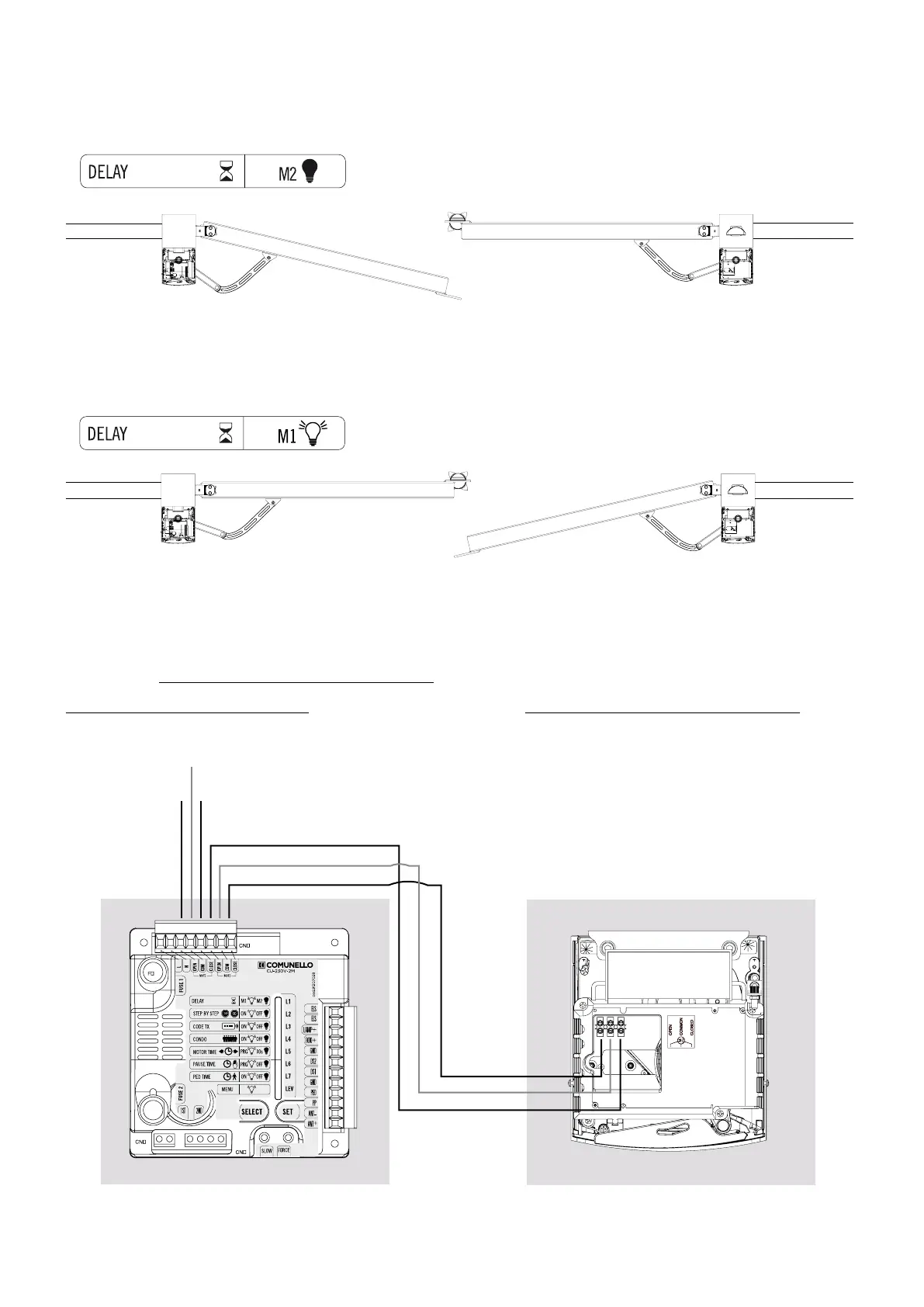

CONDOR - connection diagram of the motors [1/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.2
Conguration - MASTER ON THE LEFT, SLAVE ON THE RIGHT
MOTOR n.1 WITH CONTROL UNIT (on the left)
BLACK with OP1
COMMON with CM1
BROWN with CL1
MOTOR n.2 WITHOUT CONTROL UNIT (on the right)
OPEN with CL2
COMMON with CM2
CLOSED with OP2
1
1
2
2
• DELAY LED ON = DELAY OF THE MOTOR n.1
Brown
Blue
Black
To Next Page
