8
COMUNELLO ®Copyright 2014 - All right reserved
CN2
SEL
F2
SET
FOT+
GND
LAMP
ELS
ELS
DS1
PED
GND
DS2
PP
ANT-
ANT+
L N
OP1 CM1 CL1 OP2 CM2 CL2
Blue
1
2
1
2

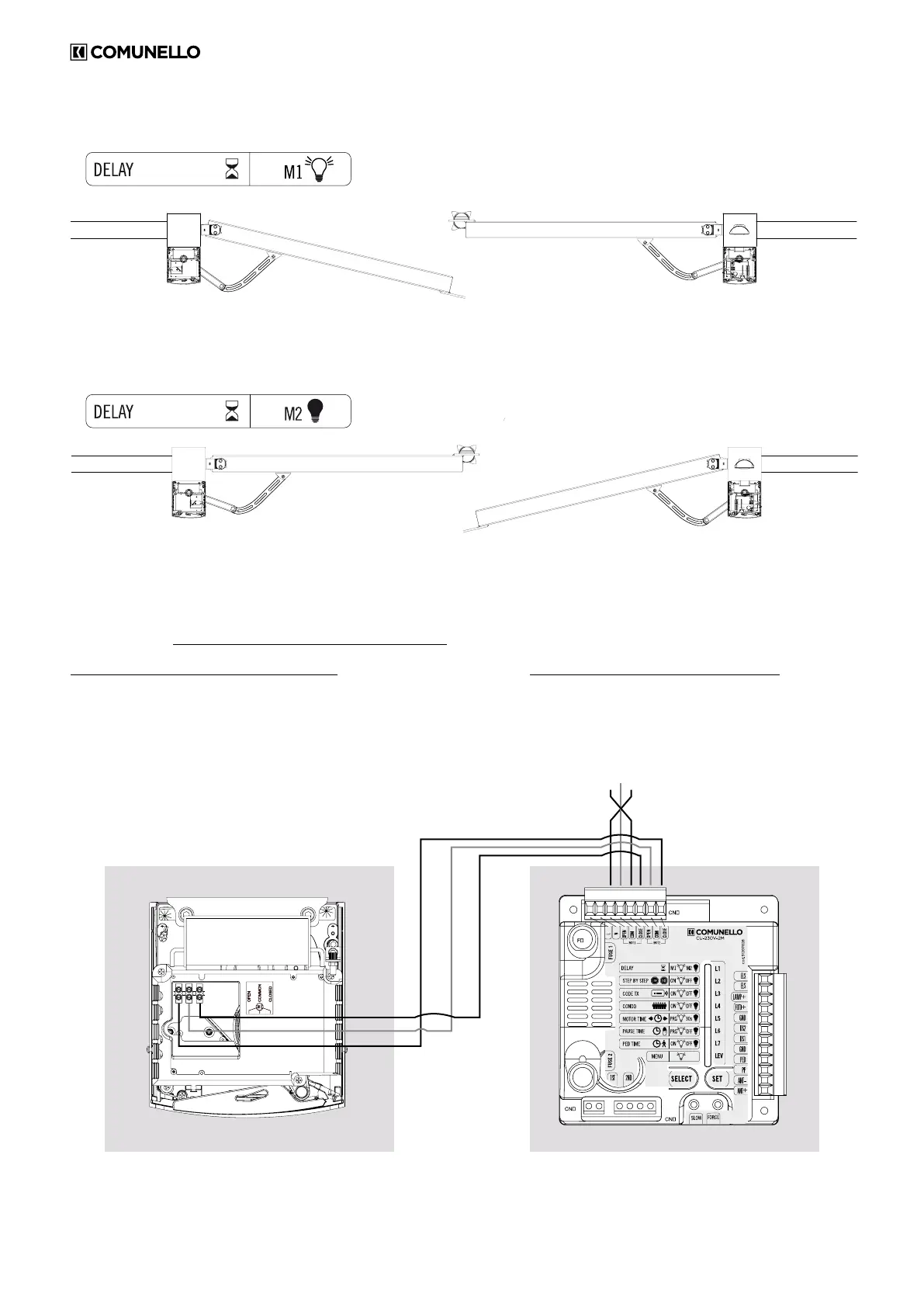

CONDOR - [2/2]
• DELAY LED OFF = DELAY OF THE MOTOR n.1
• DELAY LED ON = DELAY OF THE MOTOR n.2
Congurazione - MASTER ON THE RIGHT, SLAVE ON THE LEFT
MOTOR n.2 WITHOUT CONTROL UNIT (on the left)
OPEN with OP2
COMMON on CM2
CLOSED on CL2
MOTOR n.1 WITH CONTROL UNIT (on the right)
[INVERT THE WIRES IN CONTROL UNIT]
BROWN with OP1
BLUE with CM1
BLACK with CL1
Black Brown
