Comunello Automation CU-230V-2M User Manual

9
COMUNELLO ®Copyright 2014 - All right reserved

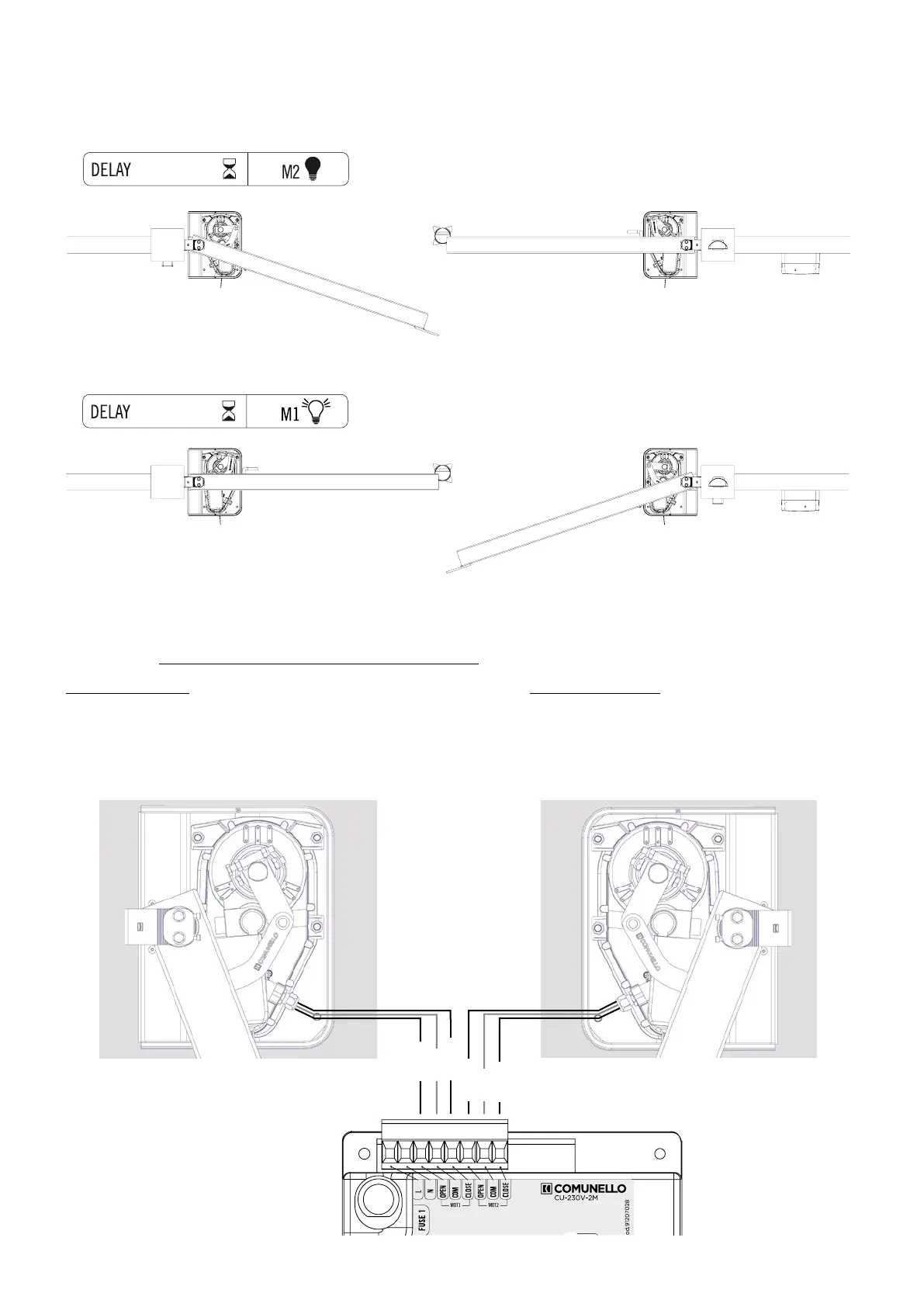

EAGLE - connection diagram of the motors
• DELAY LED OFF = DELAY OF THE MOTOR n.2
• DELAY LED ON = DELAY OF THE MOTOR n.1
1
1
2
2
CN1
F1
L N
OP1 CM1 CL1 OP2 CM2 CL2
Conguration - MOTOR n.1 ON THE LEFT, MOTOR n.2 ON THE RIGHT
MOTOR n.1 (on the left)
BROWN with CL1
BLUE with CM1
BLACK with OP1
MOTOR n.2 (on the right)
[INVERTED CONFIG. COMPARED TO MOTOR n.1]
BROWN with OP2
BLUE with CM2
BLACK with CL2
Brown
Brown
Blue
Blue
Black
Black
