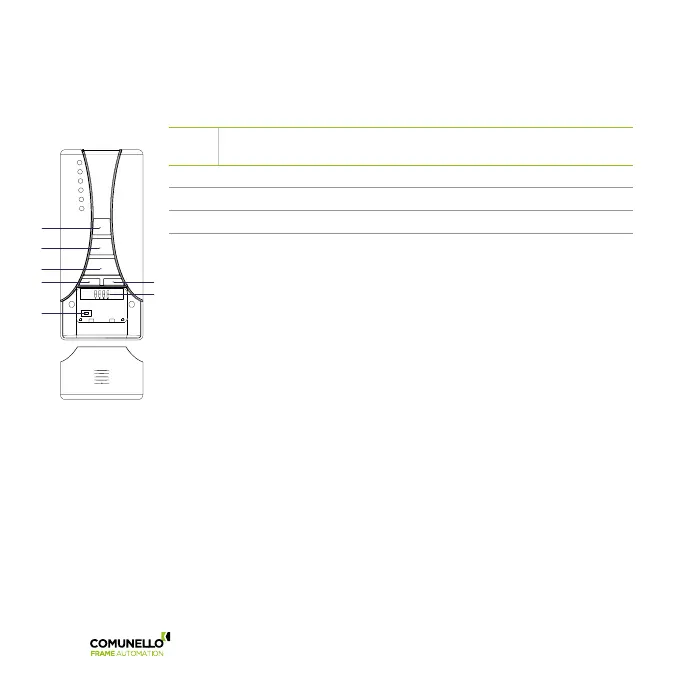

Comunello R-CONTROL - DIP-SWITCH 1: Storing Transmitters on Actuator

18
LIWIN RADIO
LIWIN RADIO
UP
STOP
DOWN
PROG
SELC
SELG
DIP-SWITCHES
MCU RADIO
UP
STOP
DOWN
PROG
SELC
SELG
DIP-SWITCHES
DIP Function
1
Storage of the transmitters
3
Deletion of all the stored transmitters
2-4
Not used
5.1 DIP-SWITCH 1: STORAGE OF THE TRANSMITTERS
To store a transmitter TX1 on a blank actuator proceed as follows:
To store a transmitter on a blank actuator proceed as follows:
A Prepare the electrical connection to the main voltage 230 VAC, but do not connect the actuator.
B Set the transmitter dip-switch no.1 into ON position (all the other dip-switches must be in OFF position).
C R6 control only: press the key SELC of the transmitter repeatedly, until displayed by the leds the selected channel.
D Connect the actuator to the 230 VAC voltage.
E Within 5 sec press and hold (for about 3/4 sec) the key PROG of the transmitter TX1.
F Release the key PROG.
G Set the transmitter dip-switch no.1into OFF position.
H Wait 10 sec.
