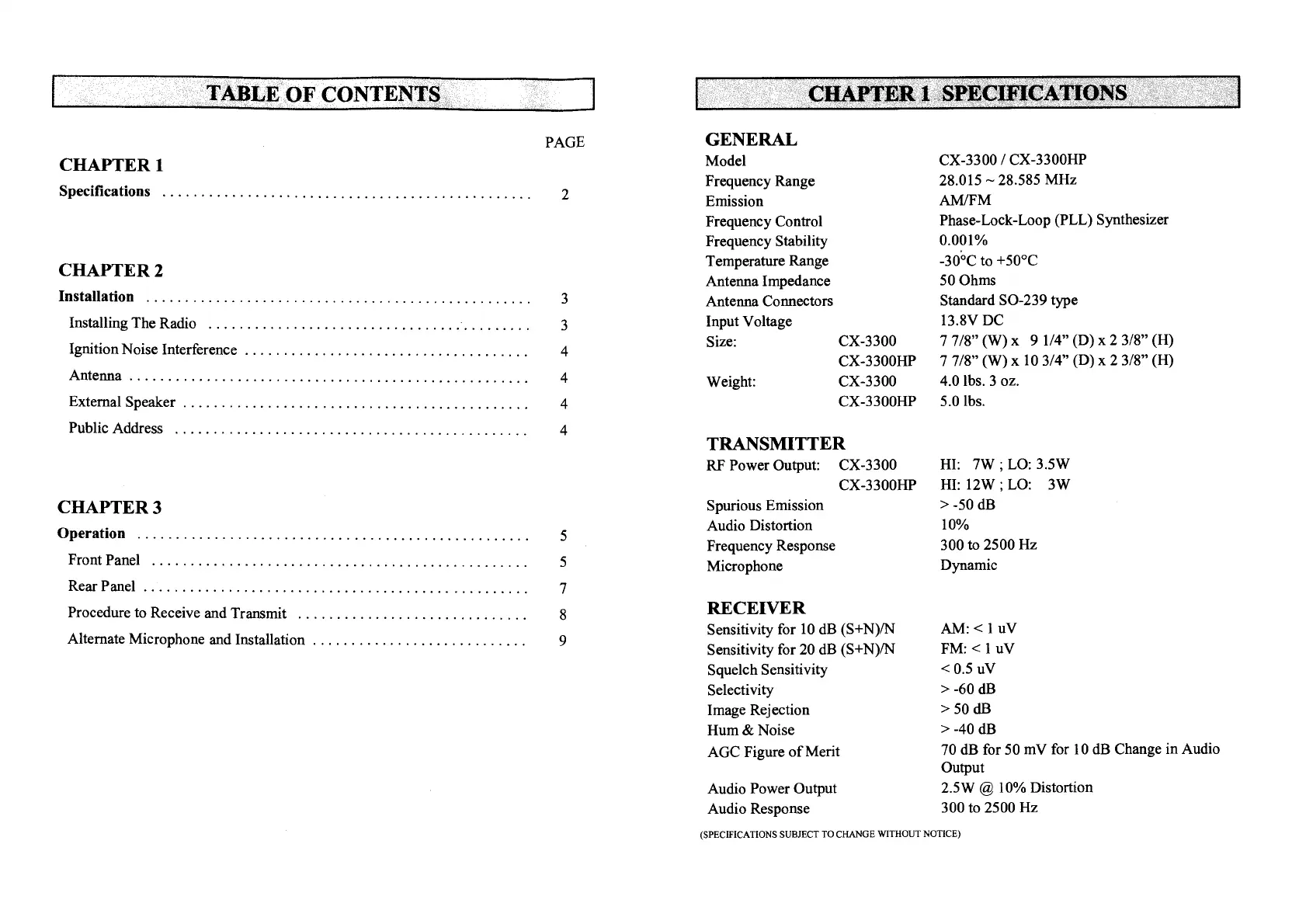

Connex CX-3300 - CHAPTER 1 SPECIFICATIONS; General Specifications; Transmitter Specifications; Receiver Specifications

GENERAL
Model
Frequency Range
Emission
Frequency Control
Frequency Stability
Temperature Range
Antenna Impedance
Antenna Connectors
Input Voltage
Size:
Weight:
CX-3300
CX-3300HP
CX-3300
CX-3300HP
CX-3300 / CX-3300HP
28.015 28.585
MHz
AM/FM
Phase-Lock-Loop (PLL) Synthesizer
0.001%
-30°C to
+50°C
50 Ohms
Standard SO-239 type
13.8V DC
7 7/8" (W) x 9 1/4" (D) x 2 3/8" (H)
7 7/8" (W) x 10 3/4" (D) x 2 3/8" (H)
4.0 lbs. 3 oz.
5.0
lbs.
TRANSMITTER
RF Power Output: CX-3300
CX-3300HP
Spurious Emission
Audio Distortion
Frequency Response
Microphone
RECEIVER
Sensitivity for 10 dB (S+N)/N
Sensitivity for 20 dB (S+N)/N
Squelch Sensitivity
Selectivity
Image Rejection
Hum & Noise
AGC Figure of Merit
Audio Power Output
Audio Response
HI: 7W; LO: 3.5W
HI: 12W; LO: 3W
> -SOdB
10%
300 to 2500 Hz
Dynamic
AM: < 1 uV
FM: < 1 uV
<0.SuV
>-6OdB
>50dB
> -40 dB
70 dB for 50 mV for 10 dB Change in Audio
Output
2.5W @ 10% Distortion
300 to 2500 Hz
TABLE OF CONTENTS
CHAPTER 1 SPECIFICATIONS
CHAPTER 1
PAGE
Specifications 
2
CHAPTER
2
Installation 
3
Installing The Radio

3
Ignition Noise Interference

4
Antenna 
4
External Speaker

4
Public Address 
4
CHAPTER
3
Operation 
S
Front Panel 
S
Rear Panel 
7
Procedure to Receive and Transmit

8
Alternate Microphone and Installation

9
(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)
