11.0 SENSOR REPLACEMENT
The sensor element on the CX/CN series transmitters is replaceable. No user serviceable parts are present
inside the sensor housing. Sensor elements can be ordered from Conspec Controls. To replace the sensor,
first disconnect power to the unit. It is normal for the monitor to display “Sensor Fail” after a new sensor has
been installed. To correct this message, the new sensor will require calibration.
Sensor Replacement:

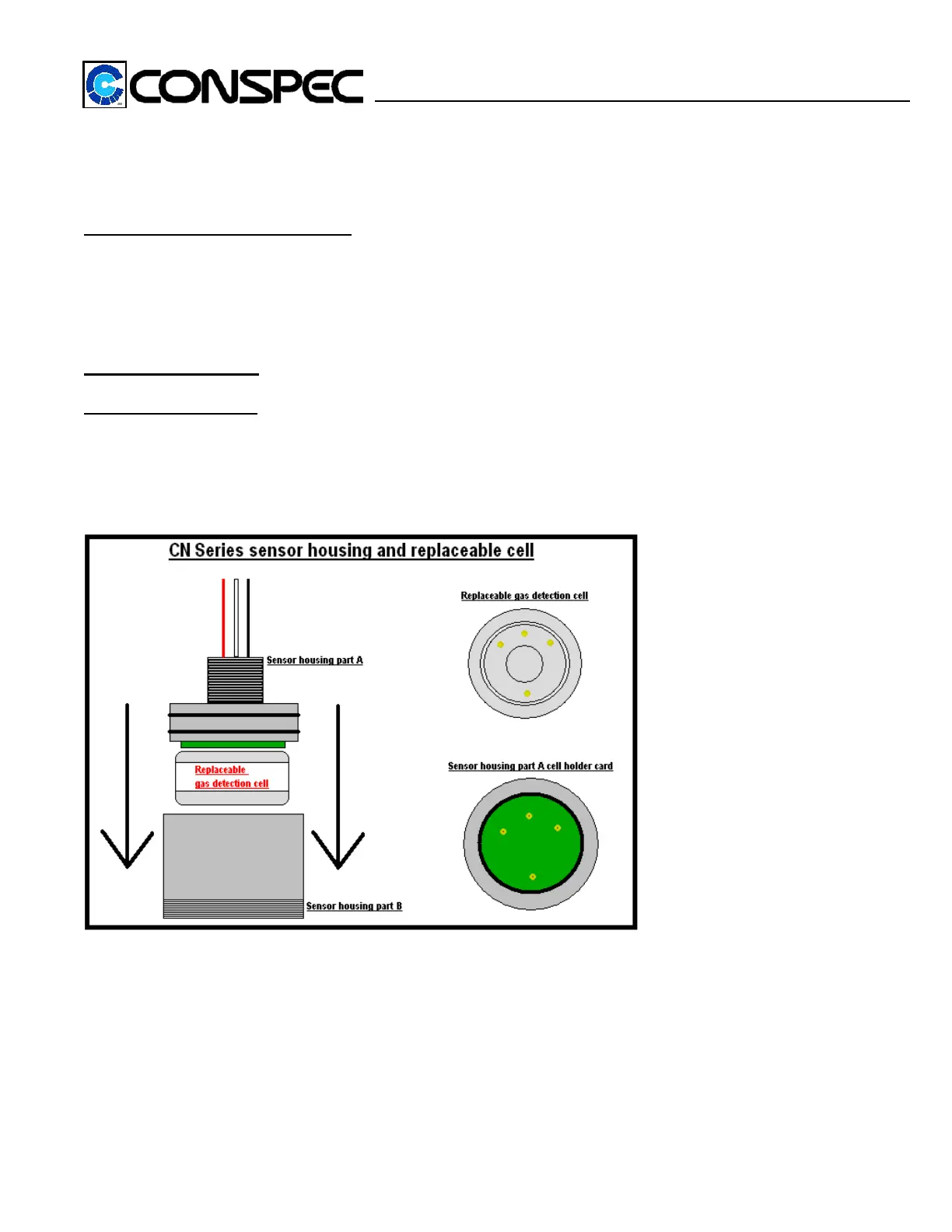

NEMA 4X CN SERIES
The NEMA 4X CN Series sensor housing is opened by pulling downward and twisting sensor housing part B
until released from the compression seal on part A.
The replaceable cell can be removed by unplugging the cell from the cell holder card.
Plug the new cell into the cell holder card and replace sensor housing part B.
