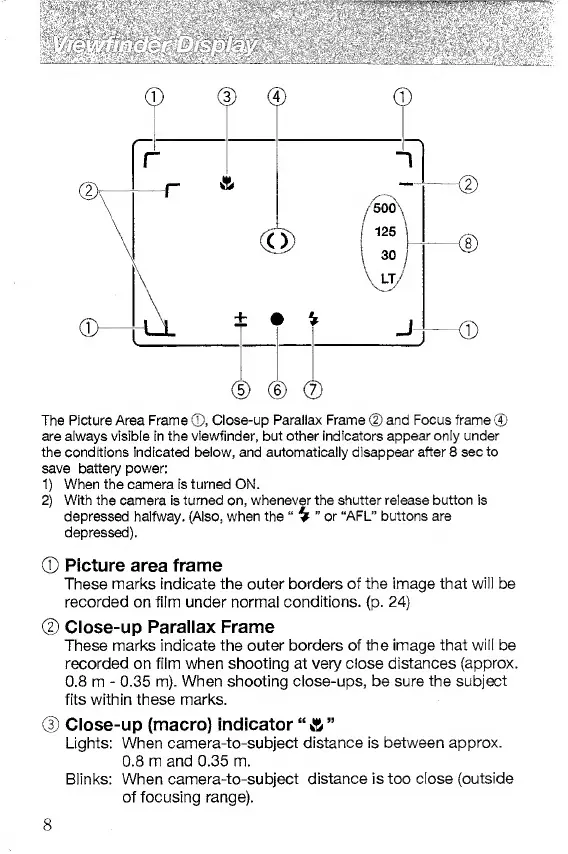

Contax T3 - Viewfinder and Display Information; Viewfinder Display Elements

0 )
(]>
(D ®
ft
± • ^
® (6) (2)
/ 500 \
I ■ '25 1
\ 30 r
\ UT/'
J-
-<D
The Picture Area Frame ©, Close-up Parallax Frame ® and Focus frame @
are always visible in the viewfinder, but other indicators appear only under
the conditions indicated below, and automatically disappear after 8 sec to
save battery power:
1) When the camera is turned ON.
2) With the camera is turned on, whenever the shutter reiease button Is
depressed halfway. (Also, when the “ i " or “AFL” buttons are
depressed).
® Picture area frame
These marks indicate the outer borders of the image that will be
recorded on film under normal conditions, (p. 24)
(2) Close-up Parallax Frame
These marks indicate the outer borders of the image that will be
recorded on film when shooting at very close distances (approx.
0.8 m - 0.35 m). When shooting close-ups, be sure the subject
fits within these marks.
(D Close-up (macro) indicator “ ft ”
Lights; When camera-to-subject distance is between approx.
0.8 m and 0.35 m.
Blinks: When camera-to-subject distance is too close (outside
of focusing range).
